14AQ81TK766 - Troy-Bilt Big Red 54" Garden Tractor (2006) Drive, Rear Wheels and Brakes Parts Diagram

Big Red 54" Garden Tractor

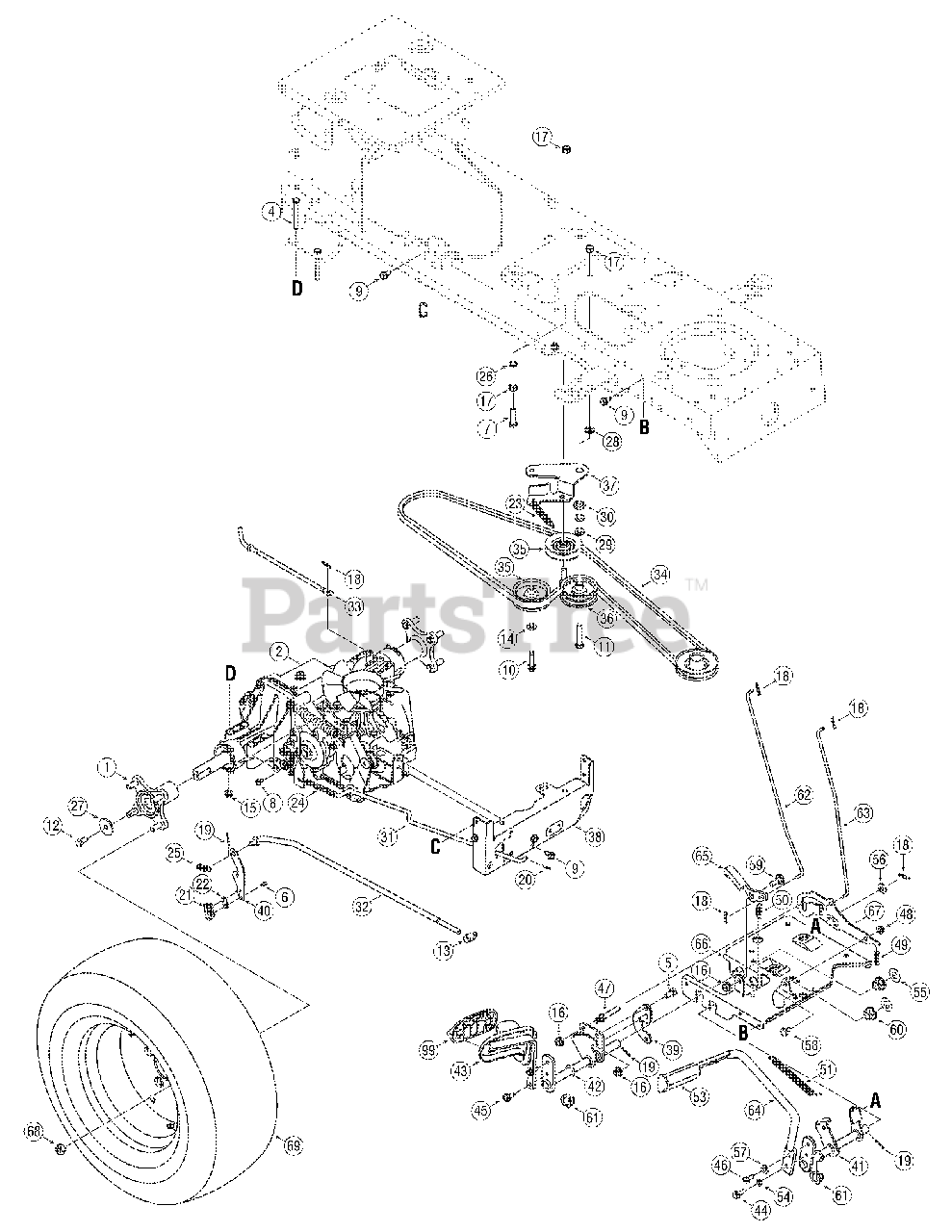

Drive, Rear Wheels and Brakes Parts Diagram

  • Title

1

Troy-Bilt 618-04317

Wheel Hub Assembly
(Superseded to 918-04317)

$116.99

$

In Stock, only 1 left!

0

2

MTD 618-04329

Hydro GT Transmission Assembly

$

$

Not available

3

Troy-Bilt 629-0949A

Reverse/Ground Wire Harness Assy (not shown)
(Superseded to 629-0949B)

$43.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0176

HH Cap Screw 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0216

HH Cap Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 12

0

6

Troy-Bilt 710-0227

AB Screw #8-18 x.500

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0520

HH Cap Screw 3/8-16 x 1.50

$4.49

$

In Stock, Qty 5

0

8

Troy-Bilt 710-0599

TT Screw 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0726

AB Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-1007

TT Sems Screw 3/8-16 x 1.500

$6.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-3011

HH Cap Screw 3/8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

12

Troy-Bilt 710-3119

HH Cap Screw 3/8-16 x.750

$6.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 711-0832

Ferrule 3/8-24 x.375
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 712-0240

Jam Nut
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 714-0104

Cotter Pin.072 x 1.13

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 714-0111

Cotter Pin 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

20

Troy-Bilt 714-0507

Cotter Pin 3/32 x.750

$4.49

$

In Stock, Qty 12

0

21

Troy-Bilt 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

22

Troy-Bilt 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

23

Troy-Bilt 732-04323B

Extension Spring.770 x 3.720

$12.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 732-0716C

Extension Spring.59 x 4.00
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 732-3118

Extension Spring 3/8 x 1.44

$10.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0227

Flat Washer.390 x 1.500 x.134

$6.49

$

In Stock, Qty 9

0

28

Troy-Bilt 736-0258

Flat Washer.385 x 1.0 x.135

$4.49

$

In Stock, only 4 left!

0

29

Troy-Bilt 736-3010

Flat Washer.407 x.812 x.135

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 738-0372B

Shoulder Spacer 1.00 x.38 x.38

$9.49

$

In Stock, Qty 18

0

31

Troy-Bilt 747-04140

Brake Rod

$

$

Not available

32

MTD 747-1119

Control Rod

$

$

Not available

33

Troy-Bilt 747-1121A

Bypass Rod

$

$

Not available

34

Troy-Bilt 754-0349

Drive Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 756-04209

V-Type Idler Pulley 3.06

$22.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 756-04224

Flat Idler Pulley 2.75

$26.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 783-04442

Center Double Idler Pulley

Variations

Troy-Bilt 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 783-0667B

Transmission Torque Bracket

Variations

Troy-Bilt 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 783-0745

Speed Control Bracket
(Superseded to 783-0745-0637)

Variations

Troy-Bilt 783-0745-0637

BRACKET-CONTROL SP - POWDER BLACK (0637)

$

$

Not available

$

$

40

Troy-Bilt 783-0782

Switch Actuator Bracket
(Superseded to 783-0782-0637)

Variations

Troy-Bilt 783-0782-0637

Actuator Bracket, S - POWDER BLACK (0637)

$

$

Not available

$

$

41

Troy-Bilt 647-0031B

Brake Control Assembly
(Superseded to 753-05606)

Variations

Troy-Bilt 647-0031B-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

$

$

42

Troy-Bilt 647-0049A

Drive Control Assembly
(Superseded to 647-0049A-0637)

Variations

Troy-Bilt 647-0049A-0637

Hydro Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

43

Troy-Bilt 683-0267C

Hydro Pedal Assembly

$

$

Not available

44

Troy-Bilt 710-0650

TT Screw 5/16-18 x.875

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-1260A

LD Screw 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-1611B

TT Screw 5/16-18 x.750

$6.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 711-04159B

Pin 3/8-16 x 2.68

$7.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 732-0335

Compression Spring.405 x 1.17

$

$

Not available

50

Troy-Bilt 732-0955

Extension Spring.50 x 1.41

$9.99

$

In Stock, only 1 left!

0

51

Troy-Bilt 732-0963

Extension Spring.50 x 6.37

$9.99

$

In Stock, only 4 left!

0

52

Troy-Bilt 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 735-3049

Brake Control Pad
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 736-0187

Flat Washer.64 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 736-0262

Flat Washer.385 x.870 x.092

$3.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 736-3008

Flat Washer.344 x.750 x.120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 738-0155

Shoulder Screw.437 x.162
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 738-0380

Shoulder Screw.50 x.27 x 3/8-16

$7.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 741-3065B

Hex Flange Bearing.628 ID Split

$8.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 747-04093

Brake Lock Control Rod
(Superseded to 747-04093A)

$

$

Not available

63

Troy-Bilt 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 747-04521

Brake Pedal
(Superseded to 753-05606)

Variations

Troy-Bilt 747-04521-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 747-04521-0638

Service Kit - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 747-04521-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 747-04521-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 747-04521-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 747-04521-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 747-04521-4008

PEDAL - WINE RED (4008)

$

$

Not available

$

$

65

Troy-Bilt 748-04039B

Cruise Latch
(Superseded to 748-04039C)

$

$

Not available

66

Troy-Bilt 783-04612

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Troy-Bilt 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

67

Troy-Bilt 783-0663E

Hydro Lockout Bracket

$17.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 712-3050

Lug Nut 7/16-14

$9.99

$

In Stock, only 1 left!

0

69

Troy-Bilt 634-0202A

Wheel Assy Complete 23 x 10.5 x 12

Variations

Troy-Bilt 634-0202A-0991

WHEEL ASM-COMPLETE - Carlisle White (0991)

$344.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-4009

WHEEL ASM-COMPLETE - TEE WHITE (4009)

$344.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$323.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0914

WHEEL ASM-COMPLETE - Cheng Gray (0914)

$323.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$370.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$323.99

$

Usually ships in 3-6 days

0

$323.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 634-3178

Rim Only 12 x 7
(Superseded to 634-04238)

Variations

Troy-Bilt 634-3178-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)

$172.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-3178-0662

RIM ASM:12.0 X 7.0 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-3178-0674

RIM ASM:12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-3178-0688

RIM ASM:12.0 X 7.0 - SPRING GREEN (0688)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

69

Troy-Bilt 734-04147

Tire Only 23 x 10.5 x 12 Sq. Shoulder
(Superseded to 734-04147-0901)

Variations

Troy-Bilt 734-04147-0901

TIRE:23.0 X 10.5 X - Carlisle (0901)

$120.99

$

Usually ships in 3-6 days

0

$120.99

$

Usually ships in 3-6 days

0
