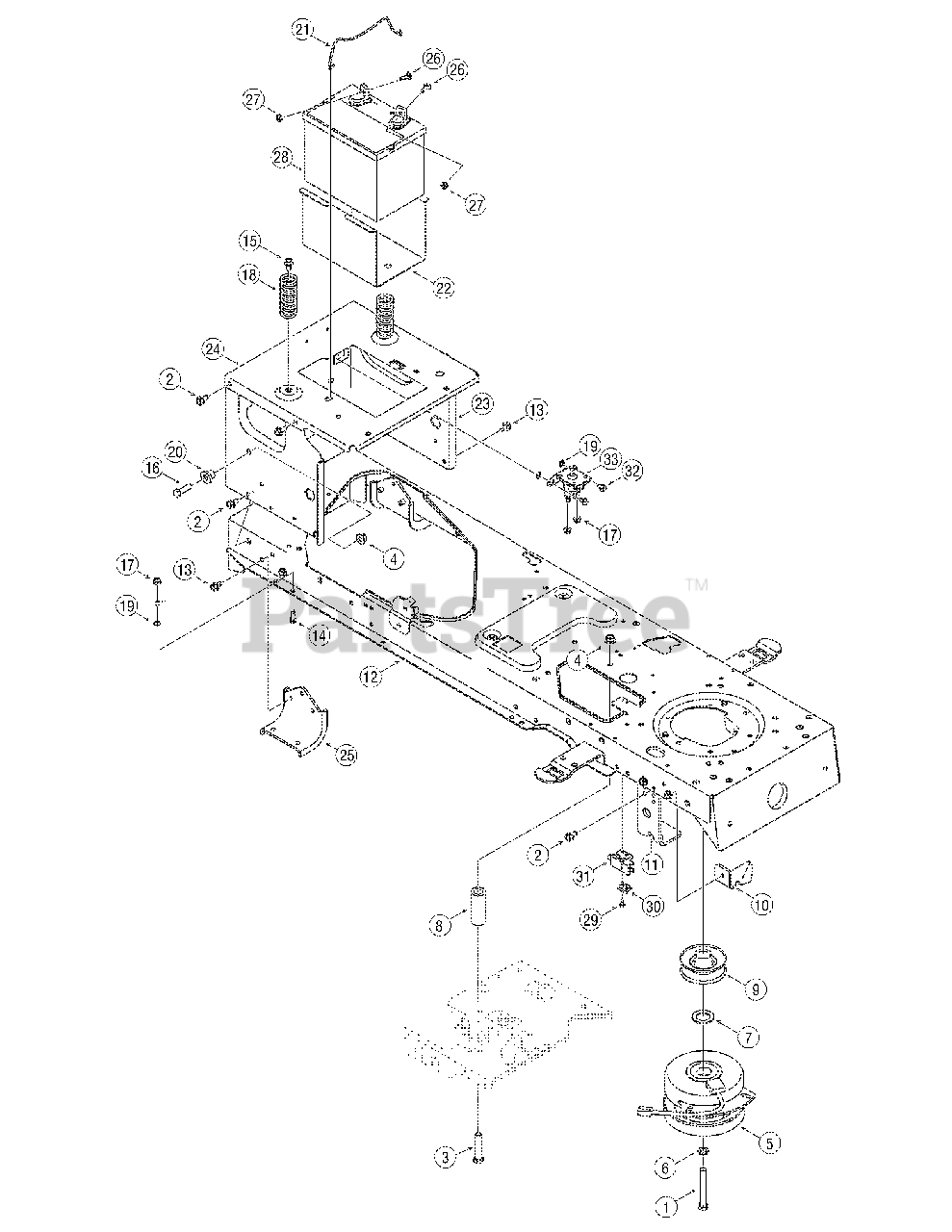

14AQ81TK766 - Troy-Bilt Big Red 54" Garden Tractor (2006) Battery and Frame Parts Diagram

Big Red 54" Garden Tractor

Battery and Frame Parts Diagram

  • Title

1

Troy-Bilt 710-04379A

HH Cap Screw 7/16-20 x 3.50

$6.49

$

In Stock, only 2 left!

0

2

Troy-Bilt 710-0726

AB Screw 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-3011

HH Cap Screw 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 717-1774B

PTO Clutch, Electric
(Superseded to 917-05001)

$630.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

7

Troy-Bilt 736-0277

Flat Washer 1.031 x 1.620 x.095

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 748-0415B

Spacer.385 x.635 x 1.54

$7.49

$

In Stock, Qty 10

0

9

Troy-Bilt 756-0978A

Electric PTO Engine Pulley
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0

10

Troy-Bilt 783-04419B

Clutch Bracket
(Superseded to 783-04419B-0637)

Variations

Troy-Bilt 783-04419B-0637

Clutch Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, only 4 left!

0

Troy-Bilt 783-04419B-4008

Clutch Bracket - WINE RED (4008)

$14.99

$

In Stock, only 4 left!

0

$14.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 783-04467

Deck Bracket, Up-Stop

Variations

Troy-Bilt 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 683-04173A

Lower Frame Assembly
(Superseded to 683-04173B-0637)

Variations

Troy-Bilt 683-04173A-0637

FRAME ASM-LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

13

Troy-Bilt 710-0607

TT Screw 5/16-18 x.500

$6.99

$

In Stock, Qty 11

0

14

Troy-Bilt 710-0642

TT Screw 1/4-20 x.750

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-1260A

LD Screw 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-3005

HH Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

17

Troy-Bilt 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 732-04035

Compression Spring 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

19

Troy-Bilt 736-0222

Lock Washer 1/4

$5.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 738-04058

Shoulder Spacer.38 x 1.0 x.70

$4.49

$

In Stock, only 3 left!

0

21

Troy-Bilt 747-04121A

Battery Rod

$6.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 783-0349

Battery Tray

Variations

Troy-Bilt 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Troy-Bilt 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

23

Troy-Bilt 783-04329A

Seat Frame Bracket

Variations

Troy-Bilt 783-04329A-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-04329A-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-04329A-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-04329A-4008

SEAT BRACKET - WINE RED (4008)

$

$

Not available

$

$

24

Troy-Bilt 783-04811A

Upper Frame, GT

$

$

Currently unavailable

25

Troy-Bilt 783-0693

Axle Bracket, GT

Variations

Troy-Bilt 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0693-0637

BRACKET-AXLE - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 15

0

27

Troy-Bilt 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 725-1750A

Battery 235 CCA
(Superseded to 925-1707D)

$

$

Not available

29

Troy-Bilt 710-0224

AB Screw #10-16 x.50
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

31

Troy-Bilt 725-04039

Interlock Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

32

Troy-Bilt 710-0599

TT Screw 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 725-1426A

Solenoid 12V 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0
