14AQ81RP544 (GT 2200) - Toro Garden Tractor (2008) FRAME, BATTERY AND ELECTRIC PTO ASSEMBLY Parts Diagram

Garden Tractor

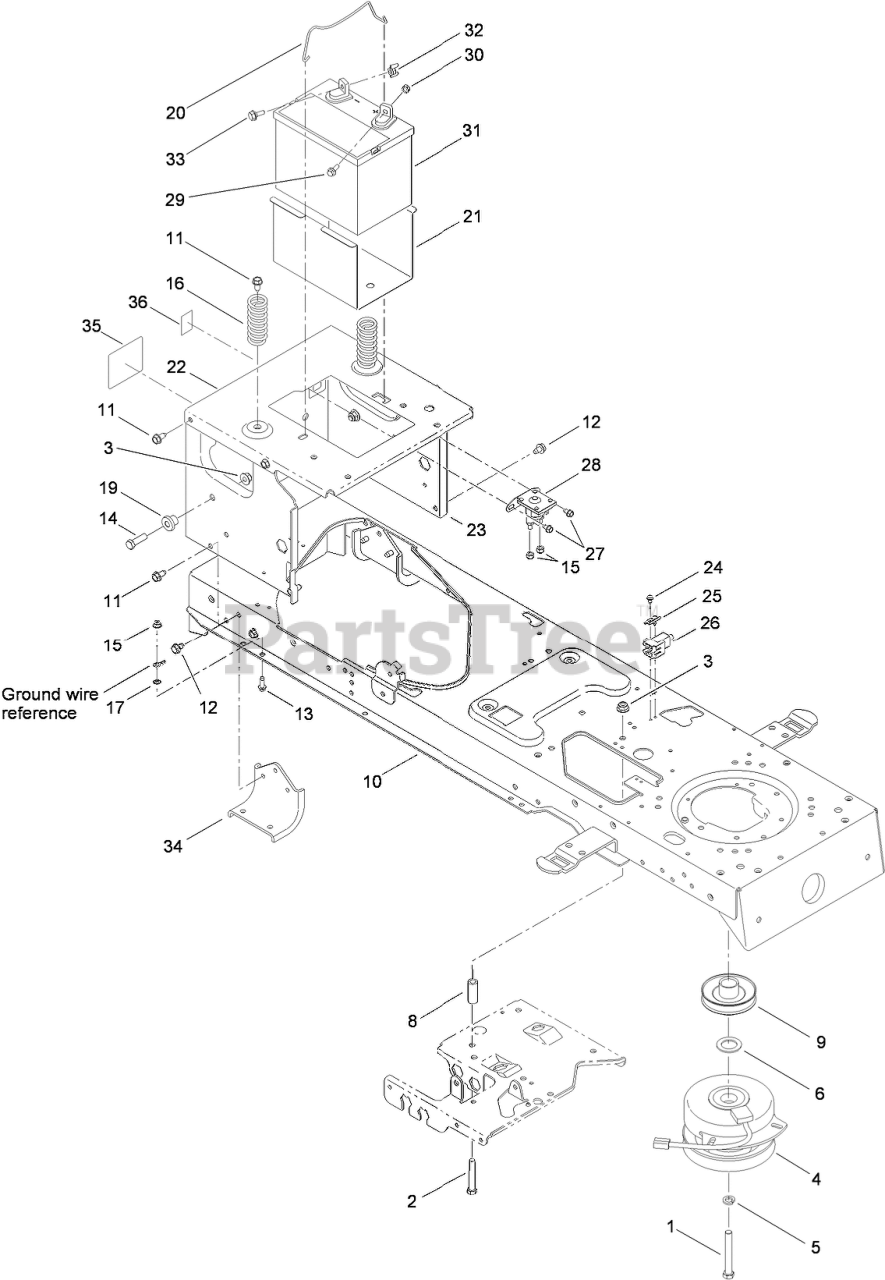

FRAME, BATTERY AND ELECTRIC PTO ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0561

SCREW-HH

$

$

Not available

2

Toro 112-6009

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

3

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

4

Toro 112-6044

CLUTCH-ELECTRIC

$1468.99

$

Usually ships in 3-6 days

0

5

Toro 112-0428

WASHER-LOCK

$

$

Not available

6

Toro 112-0420

WASHER-FLAT

$7.49

$

In Stock, only 3 left!

0

8

Toro 112-0433

SPACER

$

$

Not available

9

Toro 112-6045

PULLEY-ENGINE

$116.99

$

Usually ships in 3-6 days

0

10

Toro 112-5974

LOWER FRAME ASM

$

$

Not available

11

Toro 112-6070

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

12

Toro 112-0676

SCREW-TAP

$

$

Not available

13

Toro 112-0587

SCREW-TAP

$7.49

$

In Stock, Qty 10

0

14

Toro 112-0557

SCREW-HH

$7.49

$

In Stock, only 1 left!

0

15

Toro 112-0636

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 1 left!

0

16

Toro 112-0501

SPRING-COMPRESSION

$16.99

$

Usually ships in 3-6 days

0

17

Toro 112-0703

WASHER-LOCK, EXTERNAL

$

$

Not available

19

Toro 112-0661

SPACER-SHOULDER

$

$

Not available

20

Toro 112-0581

ROD-HOLDDOWN, BATTERY

$10.99

$

In Stock, only 2 left!

0

21

Toro 112-0570

TRAY-BATTERY

$

$

Not available

22

Toro 112-0647

BRACKET-FRAME, SEAT

$

$

Not available

23

Toro 112-6107

FRAME-UPPER

$

$

Not available

24

Toro 112-0651

SCREW-TAP

$

$

Not available

25

Toro 112-0671

PLATE-SWITCH

$

$

Not available

26

Toro 112-0455

SWITCH-INTERLOCK

$45.99

$

Usually ships in 3-6 days

0

27

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

28

Toro 112-6073

SOLENOID-12V, 2 POST 2 Tab

$69.99

$

In Stock, only 1 left!

0

29

Toro 112-1070

BOLT-CARRIAGE

$

$

Not available

30

Toro 112-0546

NUT-SEMS

$

$

Not available

31

Toro 112-0425

BATTERY-245, CCA (DRY FLAT TOP)

$157.99

$

Usually ships in 3-6 days

0

32

Toro 112-1121

NUT-WING

$6.49

$

Usually ships in 3-6 days

0

33

Toro 112-6182

BOLT-SHOULDER

$

$

Not available

34

Toro 112-0710

BRACKET-AXLE
(Superseded to 119-9105)

$45.99

$

Usually ships in 3-6 days

0

35

Toro 112-1284

DECAL-TORO

$

$

Not available

36

Toro 112-3715

DECAL-BYPASS

$

$

Not available
