14AP80TP766 - Troy-Bilt Big Red 50" Garden Tractor (2006) Hood and Fuel Tank Parts Diagram

Big Red 50" Garden Tractor

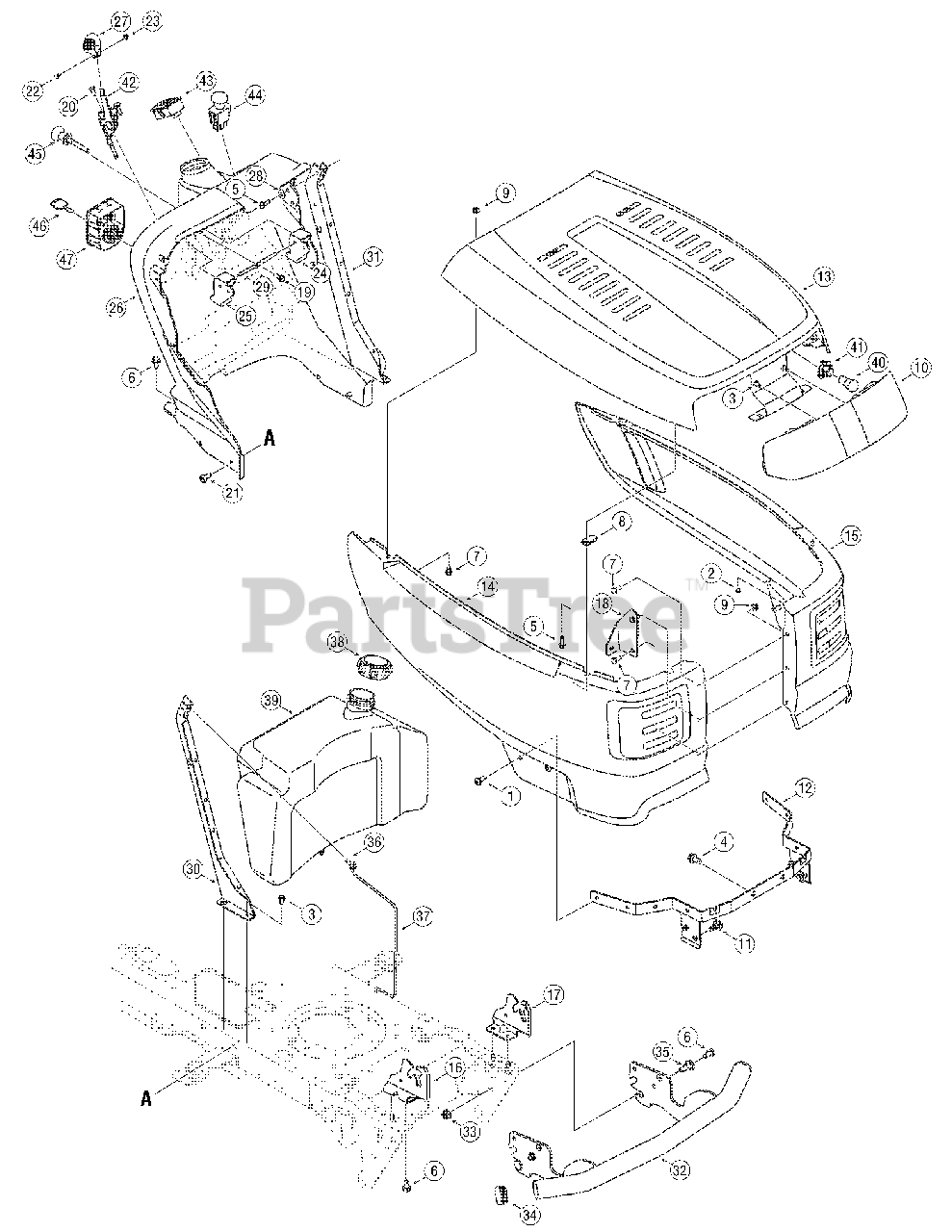

Hood and Fuel Tank Parts Diagram

  • Title

1

Troy-Bilt 710-04593

Screw TT, 5/16-18 x.375

$4.49

$

In Stock, only 3 left!

0

2

Troy-Bilt 710-04599

Screw #8-18 x.500

$

$

Not available

3

Troy-Bilt 710-0599

Screw TT, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0623

Screw TT, 3/8-16 x.750

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0642

Screw TT, 1/4-20 x.750

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0726

Screw AB, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0751

HH Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-0292

Clip Nut 1/4-20

$10.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-05357

Lens
(Superseded to 931-05357)

$

$

Not available

11

Troy-Bilt 738-04091

Shoulder Screw.43x.29:TT:5/16-18
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 783-04606A

Pivot Bracket
(Superseded to 783-04606C)

Variations

Troy-Bilt 783-04606A-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04606A-0638

BRACKET-PIVOT HOOD - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04606A-0716

BRACKET-PIVOT HOOD - CUB YELLOW-99 (0716)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04606A-4008

BRACKET-PIVOT HOOD - WINE RED (4008)

$42.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-04827

Hood

Variations

Troy-Bilt 783-04827-0662

HOOD - OYSTER GRAY (0662)

$198.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04827-0638

HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$173.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-04828

RH Side Panel

Variations

Troy-Bilt 783-04828-0638

PANEL:SIDE:TROY RH - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04828-0662

PANEL:SIDE:TROY RH - OYSTER GRAY (0662)

$101.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 783-04829

LH Side Panel

Variations

Troy-Bilt 783-04829-0638

PANEL:SIDE:TROY BI - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

16

Troy-Bilt 783-04840

RH Hood Pivot Bracket

Variations

Troy-Bilt 783-04840-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$19.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04840-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04840-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$19.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 783-04841

LH Hood Pivot Bracket

Variations

Troy-Bilt 783-04841-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04841-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04841-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

18

MTD 783-05116

Support Hood Bracket

Variations

Troy-Bilt 783-05116-0637

SUPPORT HOOD BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

19

Troy-Bilt 710-0895

Screw HL, 1/4-15 x.750

$6.49

$

In Stock, only 4 left!

0

20

Troy-Bilt 710-1017

Screw AB, 1/4-14 x.625

$8.49

$

In Stock, Qty 9

0

21

Troy-Bilt 710-1611B

Screw TT, 5/16-18 x.750

$6.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 710-3217

Screw #8-32 x.375

$6.99

$

In Stock, Qty 7

0

23

Troy-Bilt 712-0142

Hex Nut #8-32

$4.49

$

In Stock, Qty 10

0

24

Troy-Bilt 731-04728

Brake Dash Lever

$

$

Not available

25

Troy-Bilt 731-04729

Cruise Dash Lever

$

$

Not available

26

Troy-Bilt 731-05005B

Dash Panel
(Superseded to 731-06169)

$

$

Not available

27

Troy-Bilt 731-1857

Control Knob

$14.99

$

In Stock, only 4 left!

0

28

Troy-Bilt 736-0270

Bell Washer.265 x.75 x.062

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 747-1196

Lever Rod

$15.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 783-04285D

RH Plate Dash Support
(Superseded to 783-04285F-0637)

Variations

Troy-Bilt 783-04285D-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

31

Troy-Bilt 783-04323D

LH Plate Dash Support
(Superseded to 783-04323F-0637)

Variations

Troy-Bilt 783-04323D-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04323D-4008

SUPPORT DASH - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 683-04219

Bumper
(Superseded to 683-04219B-0637)

Variations

Troy-Bilt 683-04219-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 731-05598

Bumper Cap

$

$

Not available

35

Troy-Bilt 738-0143

Shoulder Screw.498 x.340 x 3/8-16

$4.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 710-0642

Screw TT, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 747-04161

Tank Support Rod

$

$

Not available

38

Troy-Bilt 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 751-10283

Fuel Tank, 3 Gal.
(Superseded to 751-10283B)

$175.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 725-0963

Miniature Lamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

41

Troy-Bilt 725-1649

Socket, Lamp
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 746-1086

Throttle Cable 39-inch
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 725-04036B

Systems Indicator Monitor w/Hour Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 725-04174

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 746-04132

Choke Control 37.5" x 2
(Superseded to 946-04132)

$35.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 725-1744

Ignition Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 725-1745

Ignition Key w/ Plastic Cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 725-04227A

Ignition Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

Troy-Bilt 629-04083

Headlight Wire Harness (not pictured)
(Superseded to 929-04083B)

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 725-04336

Tractor Wire Harness (not pictured)
(Superseded to 925-04404A)

$240.99

$

Usually ships in 3-6 days

0

Troy-Bilt 725-0157

Cable Tie (not pictured)

$3.99

$

In Stock, Qty 20+

0
