14AP80TP766 - Troy-Bilt Big Red 50" Garden Tractor (2006) Drive, Controls and Rear Wheels Parts Diagram

Big Red 50" Garden Tractor

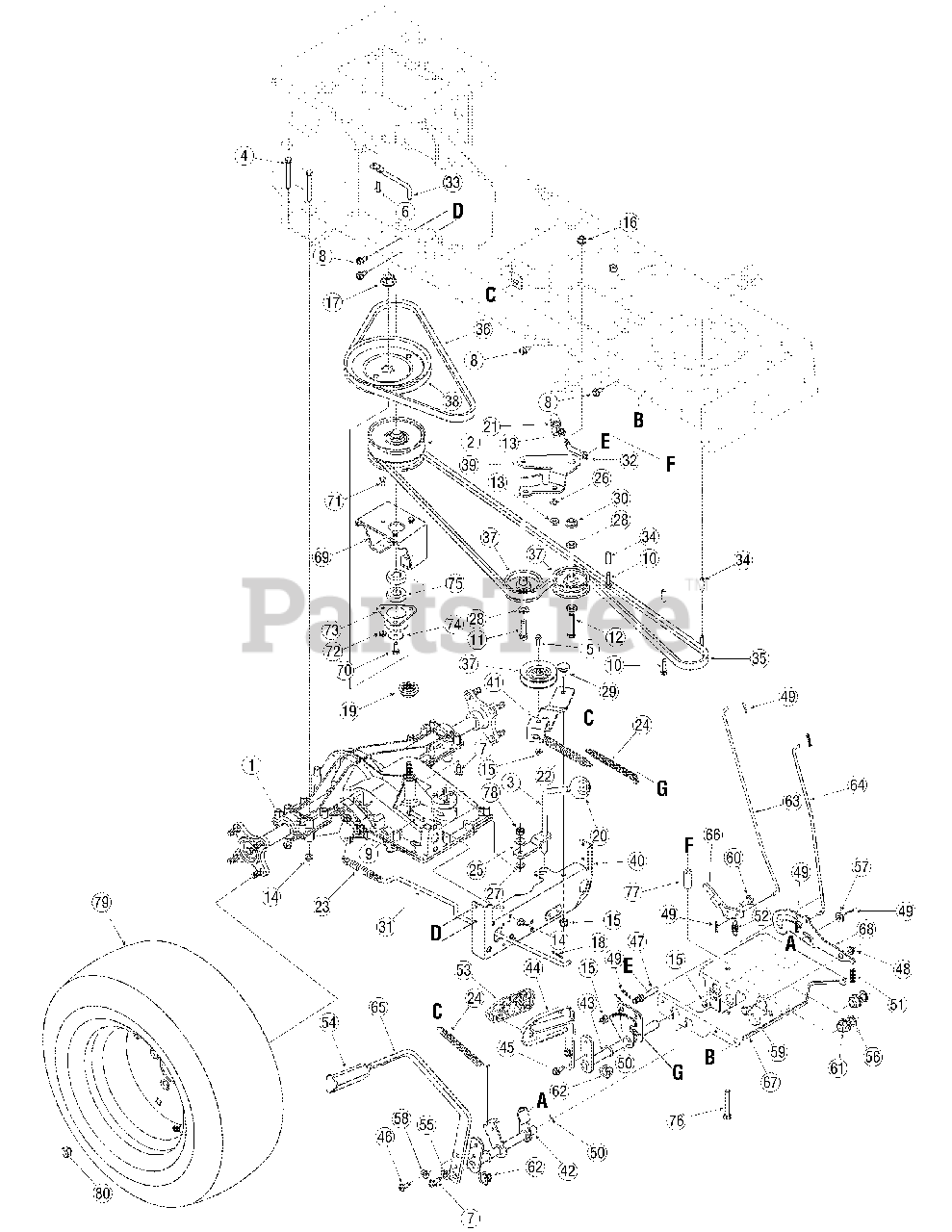

Drive, Controls and Rear Wheels Parts Diagram

  • Title

1

Troy-Bilt 753-05002

Transmission Assembly, 2-Speed

$2299.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 656-04015

Pulley Assembly, Variable Speed
(Superseded to 956-04015B)

$103.99

$

In Stock, Qty 20+

0

3

MTD 647-04023

Rod Assembly, Shift, 2-Speed
(Superseded to 647-04023A)

$

$

Not available

4

Troy-Bilt 710-0176

Screw, 5/16-18, 2.75, Gr5

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 710-0347

Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0650

Screw, 5/16-18, 0.875

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0805

Screw, 5/16-18, 1.50, Gr5
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0809

Screw, 1/4-20, 1.250

$6.99

$

In Stock, Qty 19

0

11

Troy-Bilt 710-1007

Screw, Sems, 3/8-16, 1.500

$6.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 710-3011

Screw, 3/8-16, 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-0241

Nut, Hex, 3/8-24, Gr5

$4.49

$

In Stock, Qty 13

0

14

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, GrF, Nylon

$3.99

$

In Stock, Qty 5

0

15

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 712-0431

Nut, Flange Lock, 3/8-16, GrF,
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0702

Nut, Flange, 7/16-20, Gr2
(Superseded to 912-0702)

$18.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 714-0507

Pin, Cotter, 3/32 x.750

$4.49

$

In Stock, Qty 12

0

19

Troy-Bilt 718-0771A

Hub, Pulley, 1/2 Spline
(Superseded to 918-0771A)

$28.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 720-04028

Knob, Shift

$10.99

$

In Stock, only 4 left!

0

21

Troy-Bilt 723-3018

Ball, Joint
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 732-0478

Extension, Spring 6.12
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 10

0

23

Troy-Bilt 732-0716C

Spring, Extension,.59 OD x 4.00
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 732-0963

Spring, Extension,.50 Dia x 6.37

$9.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 736-0105

Washer, Bell,.375 x.870 x.063

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 736-0169

Washer, Lock, 3/8, Regular Duty

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0642

Washer, Flat,.44x.75x.06, Ht Spcl

$3.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 736-3010

Washer, Flat,.407x.812x.135, Ht

$4.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 738-0322

Screw, Shoulder,.625 Dia x.217
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 738-0372B

Spacer, Shoulder, 1.00 x.38 x.38

$9.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 747-04136

Brake Rod

$

$

Not available

32

Troy-Bilt 747-1127

Adjustment Rod, Idlr, 3/8

$42.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 747-1185A

Rod, Belt Guard

$

$

Not available

34

Troy-Bilt 750-0566A

Spacer,.260 x.372 x 1.030

$9.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 754-0467

Belt, V-Type
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 754-0468

Belt, V-Type
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 13

0

37

Troy-Bilt 756-04224

Pulley, Flat Idler, 2.75

$26.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 756-0665

Pulley, V-Type, 8.50
(Superseded to 956-0665)

$73.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 783-04442

Idler Bracket, Center Double

Variations

Troy-Bilt 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 783-0667B

Torque Bracket, Transmission,

Variations

Troy-Bilt 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 783-0669

Bracket, Idler
(Superseded to 783-0669-0637)

Variations

Troy-Bilt 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

$20.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 647-0031B

Control Assembly, Brake
(Superseded to 753-05606)

Variations

Troy-Bilt 647-0031B-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

$

$

43

Troy-Bilt 647-0032A

Control Assembly, Speed
(Superseded to 647-0032A-0637)

Variations

Troy-Bilt 647-0032A-0637

CONTROL ASM-SPEED - POWDER BLACK (0637)

$

$

Not available

$

$

44

Troy-Bilt 683-0266

Pedal Assembly, Control

$

$

Not available

45

Troy-Bilt 710-1260A

Screw, 5/16-18, 0.750

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

47

Troy-Bilt 711-04159B

Pin, 3/8-16 x 2.68

$7.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 714-0104

Pin, Cotter,.072 Dia. x 1.13

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

51

Troy-Bilt 732-0335

Spring, Compression,.405 x 1.17

$

$

Not available

52

Troy-Bilt 732-0955

Spring, Extension,.50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 735-0662

Pad, Drive Control

$11.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 735-3049

Pad, Brake
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

55

Troy-Bilt 736-0119

Washer, Lock, 5/16, Regular Duty
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 736-0187

Washer, Flat,.64 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 736-0262

Washer, Flat,.385 x.870 x.092

$3.99

$

In Stock, Qty 10

0

58

Troy-Bilt 736-3008

Washer, Flat,.344 x.750 x.120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 738-0155

Shoulder Screw.437 Dia x.162
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 738-0380

Screw, Shoulder,.50 x.27, 3/8-16

$7.99

$

In Stock, only 1 left!

0

61

Troy-Bilt 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

62

Troy-Bilt 741-3065B

Bearing, Hex Flange,.628 ID, Split

$8.49

$

In Stock, Qty 11

0

63

Troy-Bilt 747-04093

Control Rod, Brake Lock
(Superseded to 747-04093A)

$

$

Not available

64

Troy-Bilt 747-04096

Control Rod, Cruise

$15.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 747-04521

Pedal, Brake
(Superseded to 753-05606)

Variations

Troy-Bilt 747-04521-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 747-04521-0638

Service Kit - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 747-04521-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 747-04521-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 747-04521-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 747-04521-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 747-04521-4008

PEDAL - WINE RED (4008)

$

$

Not available

$

$

66

Troy-Bilt 748-04039B

Latch, Cruise
(Superseded to 748-04039C)

$

$

Not available

67

Troy-Bilt 783-04612

Bracket, Steering Support
(Superseded to 783-04612-0637)

Variations

Troy-Bilt 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

68

Troy-Bilt 783-0732A

Bracket, Lockout

$34.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 618-04200

Pulley Bracket

$42.99

$

In Stock, only 1 left!

0

70

Troy-Bilt 710-0627

Screw, 5/16-24,.75

$4.49

$

In Stock, Qty 20+

0

71

Troy-Bilt 710-3015

Screw, 1/4-20,.75

$3.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 712-3027

Nut, Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

73

Troy-Bilt 718-04012

Bearing Cup

$21.99

$

In Stock, only 1 left!

0

74

Troy-Bilt 736-0362

Washer, Flat,.330 x 1.25 x.06

$4.49

$

In Stock, Qty 7

0

75

Troy-Bilt 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

76

Troy-Bilt 710-3011

Screw, 3/8-16, 2.25

$6.99

$

In Stock, Qty 20+

0

77

Troy-Bilt 748-0415B

Spacer,.385 x.635 x 1.54

$7.49

$

In Stock, Qty 10

0

78

Troy-Bilt 712-0181

Nut, Jam Lock, 3/6-16

$4.49

$

In Stock, only 3 left!

0

79

Troy-Bilt 634-0202A

Wheel Assembly, 23 x 10.5 x 12

Variations

Troy-Bilt 634-0202A-0991

WHEEL ASM-COMPLETE - Carlisle White (0991)

$344.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-4009

WHEEL ASM-COMPLETE - TEE WHITE (4009)

$344.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$323.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0914

WHEEL ASM-COMPLETE - Cheng Gray (0914)

$323.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$370.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0202A-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$323.99

$

Usually ships in 3-6 days

0

$323.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 734-04147

Tire, 23 x 10.5 x 12
(Superseded to 734-04147-0901)

Note: Not shown

Variations

Troy-Bilt 734-04147-0901

TIRE:23.0 X 10.5 X - Carlisle (0901)

$120.99

$

Usually ships in 3-6 days

0

$120.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 634-3178

Rim Assembly
(Superseded to 634-04238)

Note: Not shown

Variations

Troy-Bilt 634-3178-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)

$172.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-3178-0662

RIM ASM:12.0 X 7.0 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-3178-0674

RIM ASM:12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-3178-0688

RIM ASM:12.0 X 7.0 - SPRING GREEN (0688)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 918-04317

Wheel Hub Assembly, Double D

Note: Not shown

$116.99

$

In Stock, only 1 left!

0

80

Troy-Bilt 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 5

0
