14AP80RP744 (GT 2100) - Toro Garden Tractor (SN: 1A136H30000 & Above) (2006) OIL PAN AND LUBRICATION ASSEMBLY Parts Diagram

Garden Tractor

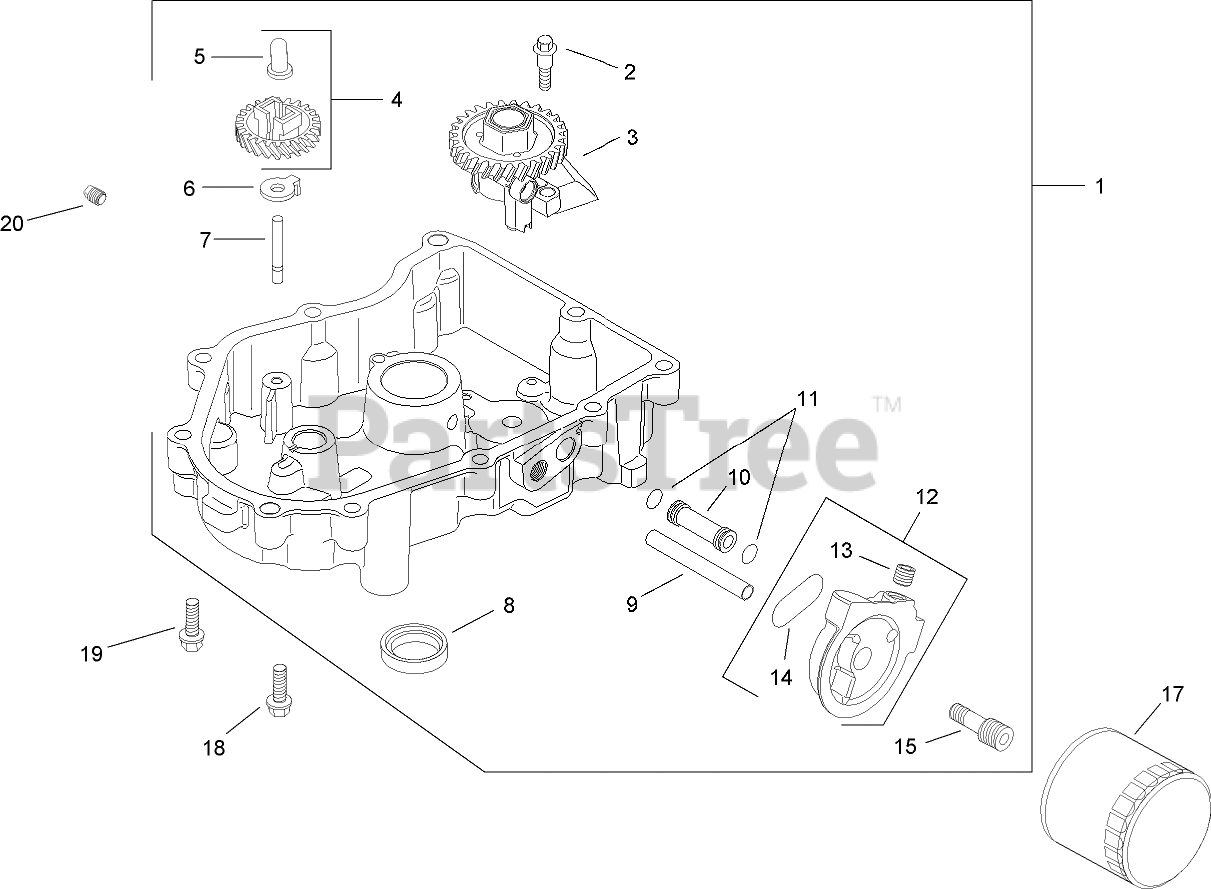

OIL PAN AND LUBRICATION ASSEMBLY Parts Diagram

  • Title

1

Kohler 32 199 02-S

Oil Pan ASM (Includes2-15)
(Superseded to 32 199 20-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 32 086 01-S

SCREW-SHOULDER, THD FRM (M6x1.0x26.5)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

3

Kohler 32 393 08-S

Oil Pump ASM
(Superseded to 32 393 10-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 24 043 12-S

Governor Gear Kit w/Pin (Includes5)

Note: Obtain parts from www.kohlerplus.com

$68.99

$

In Stock, Qty 12

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, Qty 10

0

6

Kohler 24 448 02-S

TAB-LOCKING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 8

0

8

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

9

Kohler 32 123 01-S

TUBE-FEED, OIL (FILTER TO PAN)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 32 123 03-S

TUBE-FEED, OIL (PAN TO FILTER)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 24 153 01-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

12

Kohler 32 029 07-S

Adapter-Oil Filter (Includes13-14)
(Superseded to 32 029 16-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

Note: Obtain parts from www.kohlerplus.com

$3.49

$

In Stock, only 2 left!

0

14

Kohler 32 153 02-S

O-Ring-Oil Filter Adapter
(Superseded to 32 153 04-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 3 left!

0

15

Kohler 32 136 03-S

NIPPLE-FILTER, OIL

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, only 1 left!

0

17

Toro 98020

Filter-Oil

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 20+

0

17

Toro 98020

Filter-Oil

Note: Obtain from your local Toro dealer

$13.99

$

In Stock, Qty 20+

0

18

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

19

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

20

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0
