14AP80RP744 (GT 2100) - Toro Garden Tractor (SN: 1A136H30000 & Above) (2006) HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

Garden Tractor

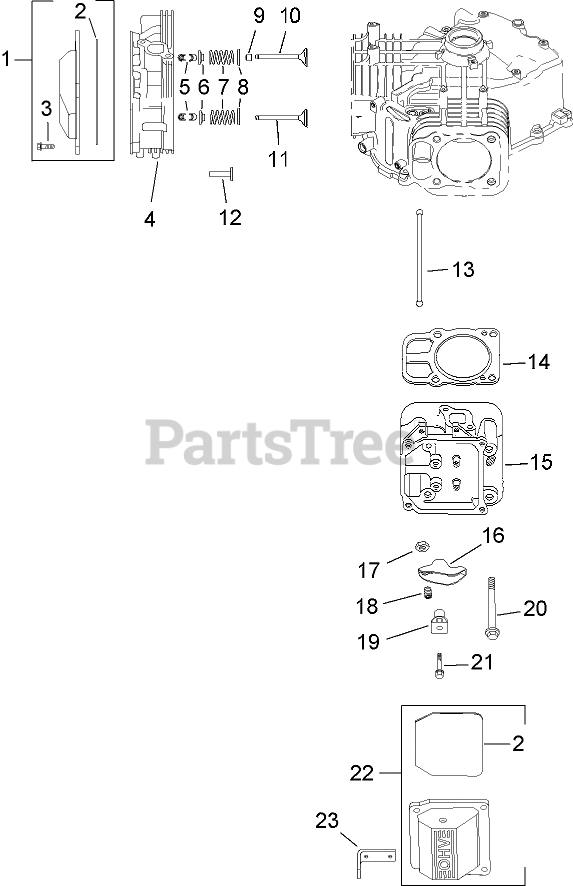

HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

  • Title

1

Kohler 24 755 141-S

Plain Valve Cover ASM (Includes2-3)

Note: Obtain parts from www.kohlerplus.com

$35.99

$

In Stock, only 2 left!

0

2

Kohler 24 153 28-S

O-Ring
(Superseded to 25 153 24-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 20+

0

3

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

4

Kohler 32 318 01-S

Head ASM (No.1 Cylinder)
(Superseded to 32 818 01-S)

Note: Obtain parts from www.kohlerplus.com

$198.99

$

Usually ships in 2-5 days

0

5

Kohler 12 755 03-S

RETAINER KIT

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, only 2 left!

0

6

Kohler 12 173 01-S

CAP-SPRING, VALVE
(Superseded to 25 173 28-S)

Note: Obtain parts from www.kohlerplus.com

$8.49

$

In Stock, Qty 5

0

7

Kohler 24 089 02-S

SPRING-VALVE

Note: Obtain parts from www.kohlerplus.com

$7.99

$

In Stock, only 2 left!

0

8

Kohler 235011-S

RETAINER-SPRING

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

9

Kohler 66 032 05-S

SEAL-STEM, VALVE
(Superseded to 25 032 14-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, only 2 left!

0

10

Kohler 24 017 01-S

VALVE-INTAKE (STD)

Note: Obtain parts from www.kohlerplus.com

$30.99

$

In Stock, Qty 17

0

10

Kohler 24 017 02-S

VALVE-INTAKE (.25)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 24 016 01-S

VALVE-EXHAUST (STD)
(Superseded to 32 016 01-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 4 left!

0

11

Kohler 24 016 02-S

VALVE-EXHAUST (.25)
(Superseded to 32 016 02-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

In Stock, only 3 left!

0

12

Kohler 32 019 01-S

Tappet
(Superseded to 32 019 02-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 3 left!

0

13

Kohler 32 411 02-S

Rod-Push

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 24 841 03-S

CYLINDER HEAD GASKET KIT
(Superseded to 24 841 04-S)

Note: Obtain parts from www.kohlerplus.com

$45.99

$

In Stock, Qty 20+

0

15

Kohler 32 318 02-S

Head ASM (No.2 Cylinder)
(Superseded to 32 818 02-S)

Note: Obtain parts from www.kohlerplus.com

$198.99

$

In Stock, only 1 left!

0

16

Kohler 32 186 02-S

Arm-Rocker
(Superseded to 32 755 06-S)

Note: Obtain parts from www.kohlerplus.com

$31.99

$

In Stock, only 1 left!

0

17

Kohler 32 100 04-S

Nut-Hex (M10x0.75)

Note: Obtain parts from www.kohlerplus.com

$39.99

$

Usually ships in 2-5 days

0

18

Kohler 32 086 03-S

Screw-Set

Note: Obtain parts from www.kohlerplus.com

$3.49

$

Usually ships in 2-5 days

0

19

Kohler 32 599 01-S

Pivot-Rocker Arm
(Superseded to 32 599 02-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 8

0

20

Kohler 12 086 16-S

SCREW-FLANGE (M10X1.5X90)
(Superseded to 62 086 08-S)

Note: Obtain parts from www.kohlerplus.com

$5.99

$

In Stock, Qty 5

0

21

Kohler 32 086 04-S

Screw-Hex Flange (M6x1.0x45)
(Superseded to 25 086 764-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

22

Kohler 32 096 06-S

Breather Valve Cover ASM (Includes2)

Note: Obtain parts from www.kohlerplus.com

$29.99

$

In Stock, only 1 left!

0

23

Kohler 24 445 01-S

STRAP-LIFTING
(Superseded to 25 445 03-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

24

Kohler 24 041 49-S

GASKET-EXHAUST
(Superseded to 25 041 17-S)

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

25

Kohler 24 153 27-S

O-RING

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8
