14AP80RP744 (GT 2100) - Toro Garden Tractor (SN: 1A136H30000 & Above) (2006) BRAKE AND TRACTION ASSEMBLY Parts Diagram

Garden Tractor

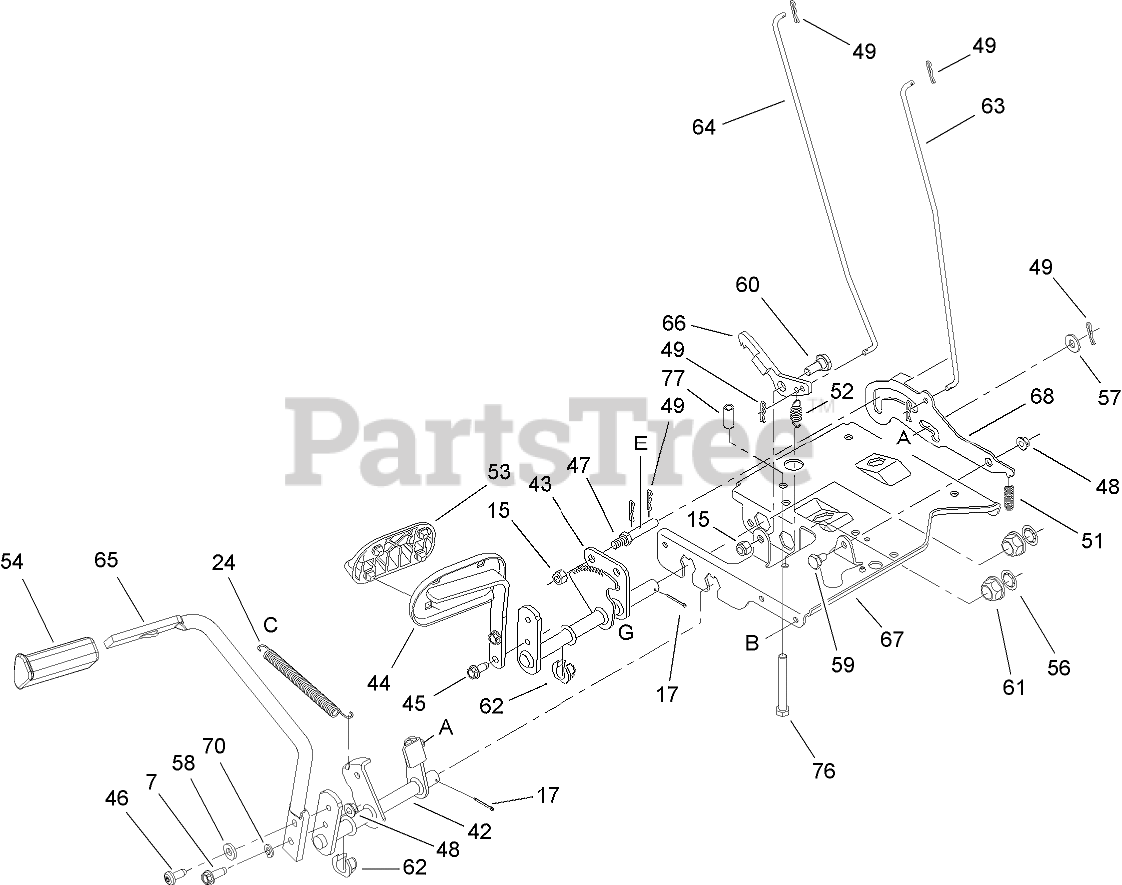

BRAKE AND TRACTION ASSEMBLY Parts Diagram

  • Title
7

Toro 112-0404

SCREW-HWHTF

$5.49

$

Usually ships in 3-6 days

0

15

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 5

0

17

Toro 112-0568

PIN-COTTER

$7.49

$

In Stock, only 2 left!

0

24

Toro 112-0348

SPRING-EXTENSION

$15.99

$

In Stock, only 1 left!

0

42

Toro 112-0648

BRAKE CONTROL ASM

$

$

Not available

43

Toro 112-0539

SPEED CONTROL ASM

$

$

Not available

44

Toro 112-0680

PEDAL ASM

$

$

Not available

45

Toro 112-0395

SCREW-HWH

$10.99

$

In Stock, Qty 19

0

46

Toro 112-0563

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

47

$11.99

$

Usually ships in 3-6 days

0

48

Toro 112-0511

NUT-LOCK, FLANGE

$6.49

$

In Stock, only 3 left!

0

49

Toro 112-0459

PIN-COTTER

$

$

Not available

51

Toro 112-0506

SPRING

$

$

Not available

52

Toro 112-0510

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

53

Toro 112-0543

PAD-PEDAL

$

$

Not available

54

Toro 112-0530

PAD-BRAKE

$23.99

$

In Stock, only 1 left!

0

56

Toro 112-0339

WASHER-FLAT

$5.49

$

Usually ships in 3-6 days

0

57

Toro 112-0541

Washer-Flat

$6.99

$

Usually ships in 3-6 days

0

58

Toro 112-0579

WASHER-FLAT

$10.99

$

Usually ships in 3-6 days

0

59

Toro 112-0552

BRACKET-TORQUE
(Superseded to 112-6134)

$

$

Not available

60

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

61

Toro 112-0347

BEARING-FLANGE

$15.99

$

Usually ships in 3-6 days

0

62

Toro 112-0387

BEARING-FLANGE, HEX (SPLIT)

$11.99

$

In Stock, only 1 left!

0

63

Toro 112-0675

ROD-BRAKE, LOCK CONTROL
(Superseded to 112-6150)

$39.99

$

Usually ships in 3-6 days

0

64

Toro 112-0662

ROD-CONTROL, CRUISE

$21.99

$

Usually ships in 3-6 days

0

65

Toro 112-3738

PEDAL-BRAKE

$43.99

$

Usually ships in 3-6 days

0

66

Toro 112-0696

LATCH-CRUISE

$

$

Not available

67

Toro 112-0681

BRACKET-SUPPORT, STEERING

$89.99

$

In Stock, only 3 left!

0

68

Toro 112-0679

BRACKET-LOCKOUT

$31.99

$

Usually ships in 3-6 days

0

70

Toro 112-0366

WASHER-LOCK

$

$

Not available

76

Toro 112-0700

SCREW-HH
(Superseded to 112-6009)

$12.99

$

Usually ships in 3-6 days

0

77

Toro 112-0433

SPACER

$9.49

$

Usually ships in 3-6 days

0
