14AP80RP744 (GT 2100) - Toro Garden Tractor (SN: 1A136H30000 & Above) (2006) BLOWER HOUSING AND BAFFLE ASSEMBLY Parts Diagram

Garden Tractor

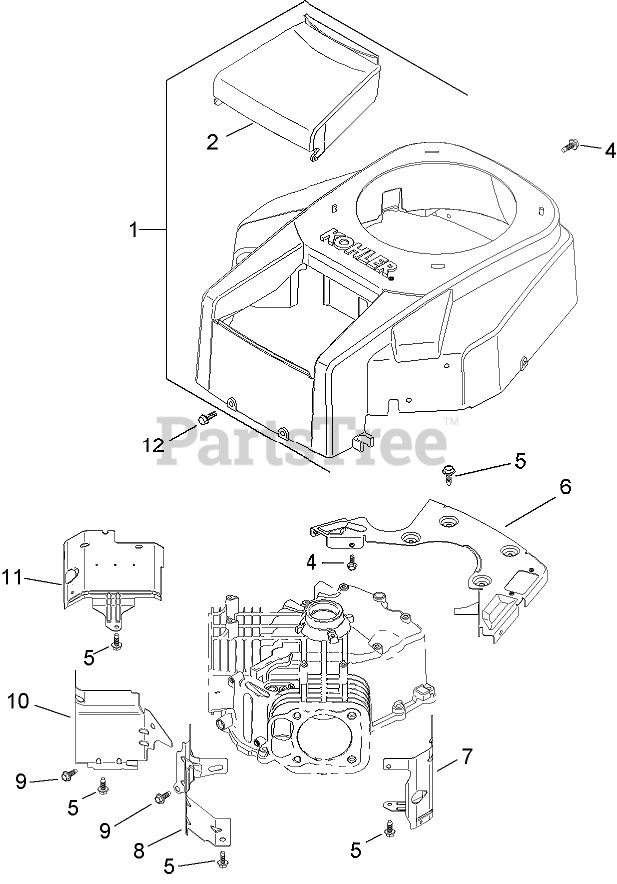

BLOWER HOUSING AND BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Kohler 32 027 03-S

Housing-Blower (Includes2 and4103710-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Kohler 32 096 08-S

COVER-CLEANER, AIR

Note: Obtain parts from www.kohlerplus.com

$7.49

$

In Stock, Qty 9

0

4

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

Usually ships in 2-5 days

0

5

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 15

0

6

Kohler 32 146 05-S

PLATE-BACKING

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 32 063 05-S

Baffle-Cylinder Barrel (No.2 Side)
(Superseded to 32 063 12-S)

Note: Obtain parts from www.kohlerplus.com

$19.99

$

Usually ships in 2-5 days

0

8

Kohler 32 063 02-S

BAFFLE-VALLEY (No.2 SIDE)
(Superseded to 24 063 94-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

Usually ships in 2-5 days

0

9

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, only 2 left!

0

10

Kohler 32 063 03-S

BAFFLE-VALLEY (No.1 SIDE)
(Superseded to 24 063 93-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 1 left!

0

11

Kohler 32 063 06-S

Baffle-Cylinder Barrel (No.1 Side)
(Superseded to 32 063 10-S)

Note: Obtain parts from www.kohlerplus.com

$15.99

$

Usually ships in 2-5 days

0

12

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

13

Kohler 41 037 10-S

NAMEPLATE-SERVICE

Note: Not illustrated

$8.99

$

In Stock, only 4 left!

0
