14AP80RP544 (GT 2100) - Toro Garden Tractor (SN: 1A136H30000 & Above) (2006) TRANSMISSION, BELT AND PULLEY ASSEMBLY Parts Diagram

Garden Tractor

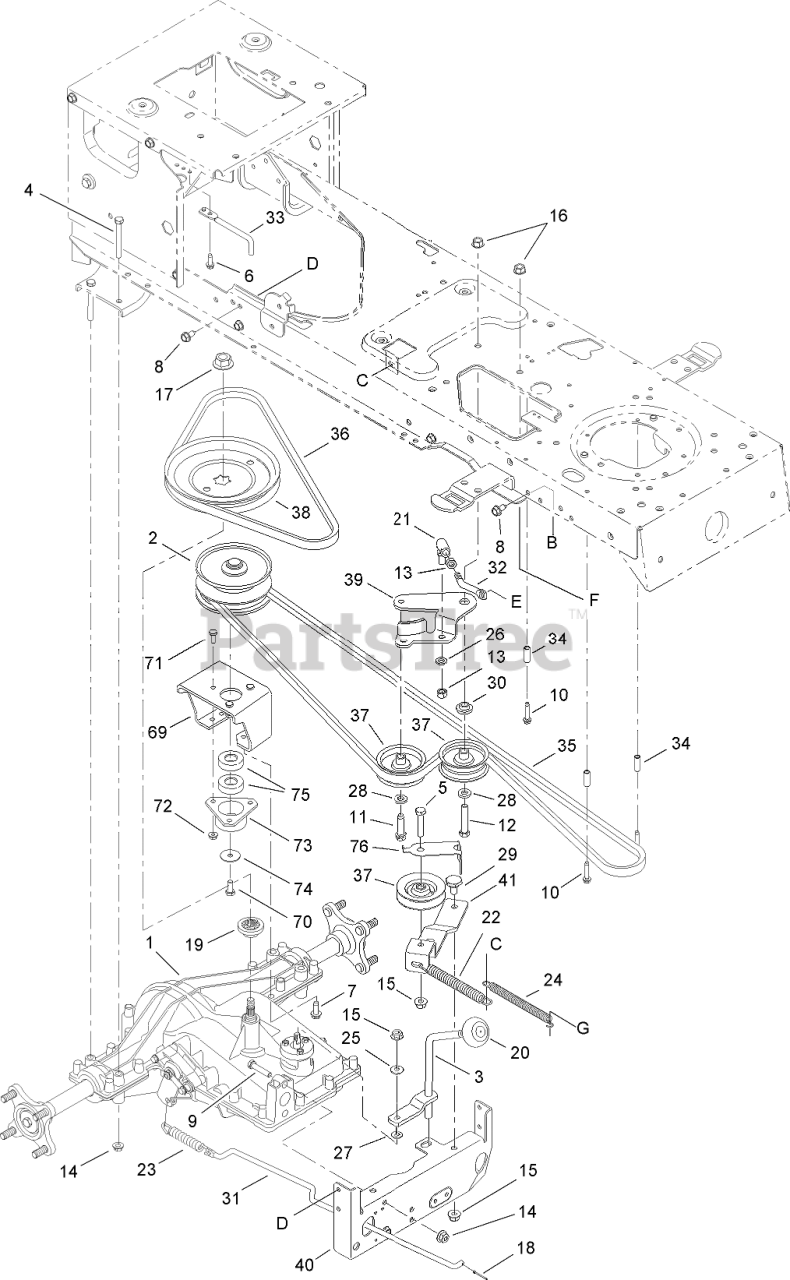

TRANSMISSION, BELT AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0558

TRANSMISSION ASM

$4313.99

$

Usually ships in 3-6 days

0

2

Toro 112-5854

VARIABLE SPEED PULLEY ASM

$174.99

$

In Stock, only 3 left!

0

3

Toro 112-0693

SHIFT ROD ASM

$

$

Not available

4

Toro 112-0714

SCREW-HEX

$

$

Not available

5

Toro 112-0513

SCREW-HH

$7.49

$

In Stock, Qty 12

0

6

Toro 112-0587

SCREW-TAP

$7.49

$

In Stock, Qty 10

0

7

Toro 112-0404

SCREW-HWHTF

$

$

Not available

8

Toro 112-0472

SCREW-HH, TAP

$7.49

$

In Stock, only 1 left!

0

9

Toro 112-0594

SCREW-HH

$5.49

$

In Stock, Qty 16

0

10

Toro 112-0603

SCREW-HH

$11.99

$

Usually ships in 3-6 days

0

11

Toro 112-0469

SCREW-TAP

$

$

Not available

12

Toro 112-0700

SCREW-HH
(Superseded to 112-6009)

$13.99

$

Usually ships in 3-6 days

0

13

Toro 112-0343

NUT-HEX

$

$

Not available

14

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

15

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

16

Toro 112-0385

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 7

0

17

Toro 112-0605

NUT-FLANGE W/HUB

$

$

Not available

18

Toro 112-0354

PIN-COTTER

$

$

Not available

19

Toro 112-0619

HUB-PULLEY

$

$

Not available

20

Toro 112-0514

KNOB-SHIFT

$18.99

$

Usually ships in 3-6 days

0

21

Toro 112-0306

BALL JOINT ASM

$

$

Not available

22

Toro 112-0369

SPRING

$

$

Not available

23

Toro 112-0350

SPRING-EXTENSION

$23.99

$

In Stock, only 1 left!

0

24

Toro 112-0348

SPRING-EXTENSION

$16.99

$

In Stock, only 3 left!

0

25

Toro 112-0660

WASHER-SPRING

$7.49

$

In Stock, Qty 5

0

26

Toro 112-0415

WASHER-LOCK

$

$

Not available

27

Toro 112-0664

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

28

Toro 112-0544

WASHER-FLAT

$7.49

$

In Stock, Qty 6

0

29

Toro 112-0328

BOLT-SHOULDER

$

$

Not available

30

Toro 112-0345

SPACER-SHOULDER

$16.99

$

In Stock, only 1 left!

0

31

Toro 112-0692

ROD-BRAKE

$

$

Not available

32

Toro 112-0538

ROD-ADJUSTMENT, IDLER

$

$

Not available

33

Toro 112-0712

ROD-GUARD, BELT (TRANSMISSION)

$

$

Not available

34

Toro 112-0644

SPACER

$

$

Not available

35

Toro 112-0301

BELT-DRIVE, VARIABLE SPEED

$50.99

$

In Stock, Qty 20+

0

36

Toro 112-0305

BELT-DRIVE, TRANSMISSION

$30.99

$

In Stock, Qty 12

0

37

Toro 112-0313

PULLEY-IDLER, FLAT

$55.99

$

Usually ships in 3-6 days

0

38

Toro 112-0461

PULLEY-TRANSMISSION (W/HUBS)

$

$

Not available

39

Toro 112-0525

BRACKET-IDLER, CENTER DOUBLE

$59.99

$

In Stock, only 1 left!

0

40

Toro 112-0711

BRACKET-TRANSMISSION

$78.99

$

Usually ships in 3-6 days

0

41

Toro 112-0548

BRACKET-IDLER

$

$

Not available

69

Toro 112-0842

BRACKET

$62.99

$

Usually ships in 3-6 days

0

70

Toro 112-0551

SCREW-HH

$7.49

$

In Stock, Qty 6

0

71

Toro 112-0499

SCREW-HH

$

$

Not available

72

Toro 112-0657

NUT-LOCK, FLANGE

$

$

Not available

73

Toro 112-0520

CUP-BEARING

$37.99

$

In Stock, only 1 left!

0

74

Toro 112-0500

WASHER-FLAT

$7.49

$

In Stock, only 4 left!

0

75

Toro 112-0423

BEARING-BALL

$49.99

$

In Stock, only 4 left!

0

76

Toro 112-5883

GUIDE-BELT, TRACTION

$18.99

$

In Stock, only 2 left!

0
