14AP80RP544 (GT 2100) - Toro Garden Tractor (SN: 1A136H30000 & Above) (2006) SEAT AND FENDER ASSEMBLY Parts Diagram

Garden Tractor

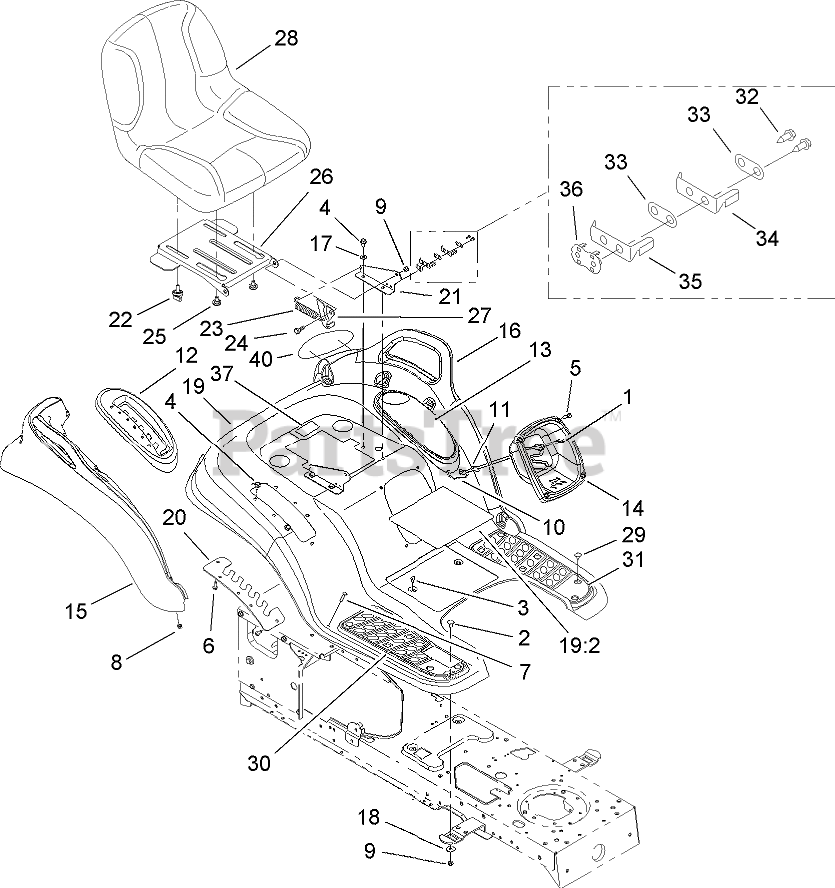

SEAT AND FENDER ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0626

SCREW-HWHTF

$7.49

$

In Stock, only 3 left!

0

2

Toro 112-0373

SCREW-HH

$7.49

$

In Stock, only 4 left!

0

3

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

4

Toro 112-0556

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

5

Toro 112-0566

SCREW-TAP

$

$

Not available

6

Toro 112-0509

SCREW-TAP

$10.99

$

In Stock, only 3 left!

0

7

Toro 112-0907

SCREW-CARR

$7.49

$

Usually ships in 3-6 days

0

8

Toro 112-0546

NUT-SEMS

$

$

Not available

9

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

10

Toro 112-5851

SWITCH-SPRING

$11.99

$

Usually ships in 3-6 days

0

11

Toro 112-0625

PLATE-INSULATOR

$8.49

$

Usually ships in 3-6 days

0

12

Toro 112-0869

COVER-LEVER, LIFT

$

$

Not available

13

Toro 112-0870

COVER (W/CUP HOLDER)

$

$

Not available

14

Toro 112-5852

COVER-SHIFT

$

$

Not available

15

Toro 112-0871

FLARE-FENDER, RH

$

$

Not available

16

Toro 112-0872

FLARE-FENDER, LH

$125.99

$

Usually ships in 3-6 days

0

17

Toro 112-0517

WASHER-LOCK, EXTERNAL

$

$

Not available

18

Toro 112-0582

WASHER-FLAT

$

$

Not available

19

Toro 112-5868

FENDER AND DECAL ASM

$753.99

$

Usually ships in 3-6 days

0

19:2

Toro 112-3705

DECAL-SLOPE

$

$

Not available

20

Toro 112-0629

BRACKET-ADJUSTING, LIFT

$

$

Not available

21

Toro 112-0905

BRACKET-MOUNT, SEAT

$36.99

$

Usually ships in 3-6 days

0

22

$10.99

$

In Stock, only 2 left!

0

23

Toro 112-0616

SPRING-EXTENSION

$19.99

$

Usually ships in 3-6 days

0

24

Toro 112-0575

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

25

Toro 112-0554

BOLT-SHOULDER

$

$

Not available

26

Toro 112-0593

BRACKET-SEAT
(Superseded to 112-6113)

$

$

Not available

27

Toro 112-0646

BRACKET-LIFT, LH

$

$

Not available

28

Toro 112-0372

SEAT-HIGH BACK

$

$

Not available

29

Toro 112-0549

CLIP-RATCHET, FASTENER

$7.49

$

Usually ships in 3-6 days

0

30

Toro 112-0540

PAD-FOOT, RH

$

$

Not available

31

Toro 112-0545

PAD-FOOT, LH

$

$

Not available

32

Toro 112-0626

SCREW-HWHTF

$7.49

$

In Stock, only 3 left!

0

33

Toro 112-0635

PLATE-INSULATOR

$5.99

$

Usually ships in 3-6 days

0

34

Toro 112-0529

SWITCH-SPRING

$6.99

$

Usually ships in 3-6 days

0

35

Toro 112-0532

SWITCH-SPRING, INNER

$8.49

$

Usually ships in 3-6 days

0

36

Toro 112-0637

PLATE-BOSS, INSULATOR

$

$

Not available

37

Toro 112-3701

DECAL-TORO HOTLINE

$

$

Not available

40

Toro 112-5873

REFLECTOR

$

$

Not available
