14AP805K730 - Huskee Garden Tractor (2006) (Tractor Supply) Seat and Fender Parts Diagram

Garden Tractor

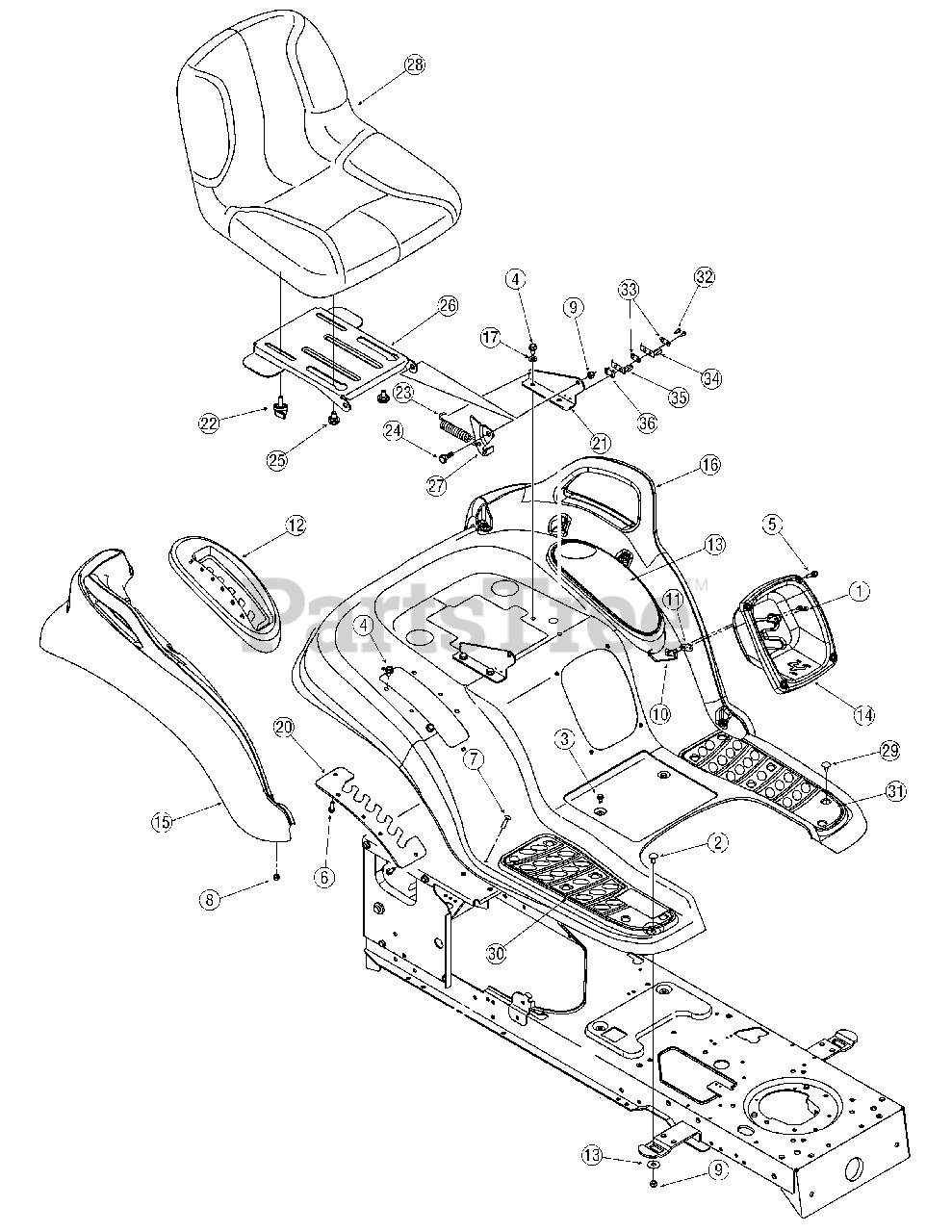

Seat and Fender Parts Diagram

  • Title

1

MTD 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0451

Bolt, Carriage, 5/16-18, .750 Gr1

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0599

Screw, /4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0788

Screw, 1/4-20, 1.000

$7.49

$

In Stock, only 2 left!

0

6

MTD 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

7

MTD 710-0932

Screw, Carriage, 1/4-20, 1.00, Gr1
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

8

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 725-1713

Switch, Spring

$12.99

$

Usually ships in 3-6 days

0

11

MTD 726-0320

Plate, Insulator Nut
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

12

MTD 731-1990

Cover, Lift Lever
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

13

MTD 731-1993A

Cover, w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

13

MTD 736-3078

Washer Flat,.344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

14

MTD 731-2480A

Cover, Shift

$43.99

$

Usually ships in 3-6 days

0

15

MTD 731-2618

Fender Flare, RH

$

$

Not available

16

MTD 731-2619

Fender Flare, Fender, LH

$80.99

$

Usually ships in 3-6 days

0

17

MTD 736-0607

Washer, Lock, 5/16 Ext. Tooth

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-3078

Washer, Flat, .344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

MTD 783-04331A

Fender, 2-Speed

Note: Not Shown

Variations

MTD 783-04331A-0638

FENDER-4 STY 2 STY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04331A-0665

No Longer Available FENDER-4 STY 2 STY - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04331A-4008

FENDER-4 STY 2 STY - WINE RED (4008)

$

$

Not available

$

$

20

MTD 783-0677B

Lift Bracket, Adjustment

Variations

MTD 783-0677B-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0677B-4008

BRACKET:LIFT:ADJ - WINE RED (4008)

$

$

Not available

MTD 783-0677B-4015

BRACKET:LIFT:ADJ - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

21

MTD 783-1489B

Seat Bracket
(Superseded to 783-1489C)

Variations

MTD 783-1489B-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489B-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489B-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489B-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489B-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

22

MTD 720-04061

Knob, 3/8-16, .875

$5.49

$

In Stock, Qty 20+

0

23

MTD 732-1184

Spring, Extension, .80 Dia x 4.6 Lg.

$11.99

$

In Stock, only 1 left!

0

24

MTD 738-0296

Shoulder Screw .437 x .286 Lg

$4.49

$

In Stock, Qty 20+

0

25

MTD 738-04012A

Shoulder Screw, .625 x .145, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

26

MTD 783-04081A

Pivot Bracket, Seat

Variations

MTD 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

MTD 783-04081A-4008

Seat Pivot Bracket - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

27

MTD 783-0209D

Bracket, Seat Lift

$16.99

$

In Stock, only 1 left!

0

28

MTD 757-04003

Seat, High Back
(Superseded to 757-04003A)

$

$

Not available

29

MTD 726-3046

Clip, Ratchet, .250 Dia

$3.99

$

In Stock, Qty 16

0

30

MTD 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

31

MTD 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

32

MTD 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

33

MTD 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

34

MTD 725-1303

Spring Switch, Outer
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

35

MTD 725-1439

Spring Switch, Inner

$8.49

$

In Stock, Qty 10

0

36

MTD 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0
