14AP805K730 - Huskee Garden Tractor (2006) (Tractor Supply) Muffler Parts Diagram

Garden Tractor

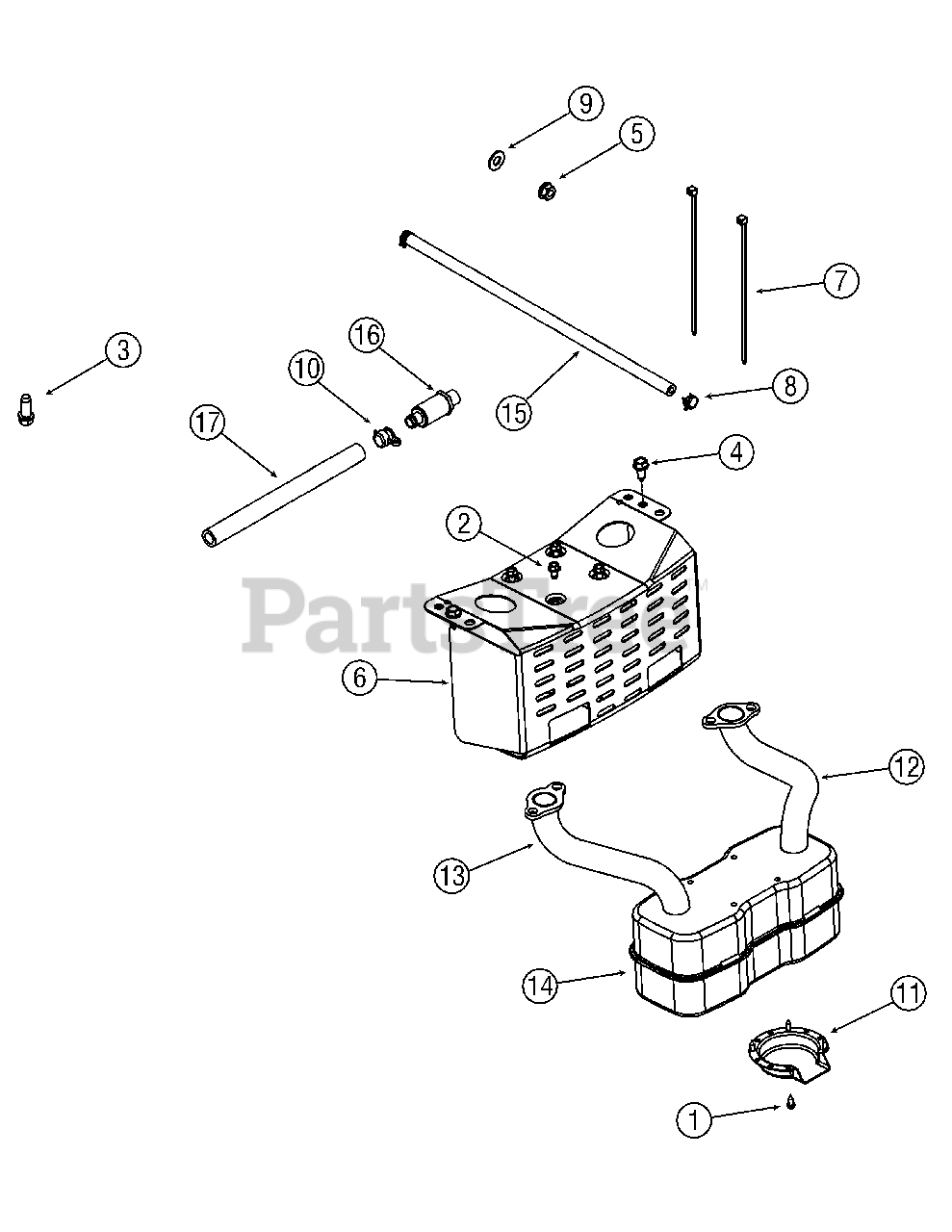

Muffler Parts Diagram

  • Title

1

MTD 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 15

0

2

MTD 710-0599

Screw, Hex, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0654A

Screw, Sems, 3/8-16, .75

$4.49

$

In Stock, only 3 left!

0

4

MTD 710-0726

Screw, Hex, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-3005

Hex Flange Nut, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

6

MTD 783-0615D

Bracket, Muffler
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

7

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

8

MTD 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

9

MTD 736-0300

Lock Washer,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

10

MTD 751-3142

Cap, Oil Drain

$4.49

$

In Stock, only 4 left!

0

11

MTD 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

12

MTD 751-0644B

Pipe, Exhaust, LH

$146.99

$

Usually ships in 3-6 days

0

13

MTD 751-0645A

Pipe, Exhaust, RH

$93.99

$

Usually ships in 3-6 days

0

14

MTD 751-0805A

Muffler, Dual Inlet
(Superseded to 951-0805A)

$123.99

$

Usually ships in 3-6 days

0

15

MTD 751-10349

Fuel Hose, Low Permeation

$9.49

$

Usually ships in 3-6 days

0

16

MTD 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

17

MTD 751-3141

Extension Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0
