14AP805K730 - Huskee Garden Tractor (2006) (Tractor Supply) Deck Assembly Parts Diagram

Garden Tractor

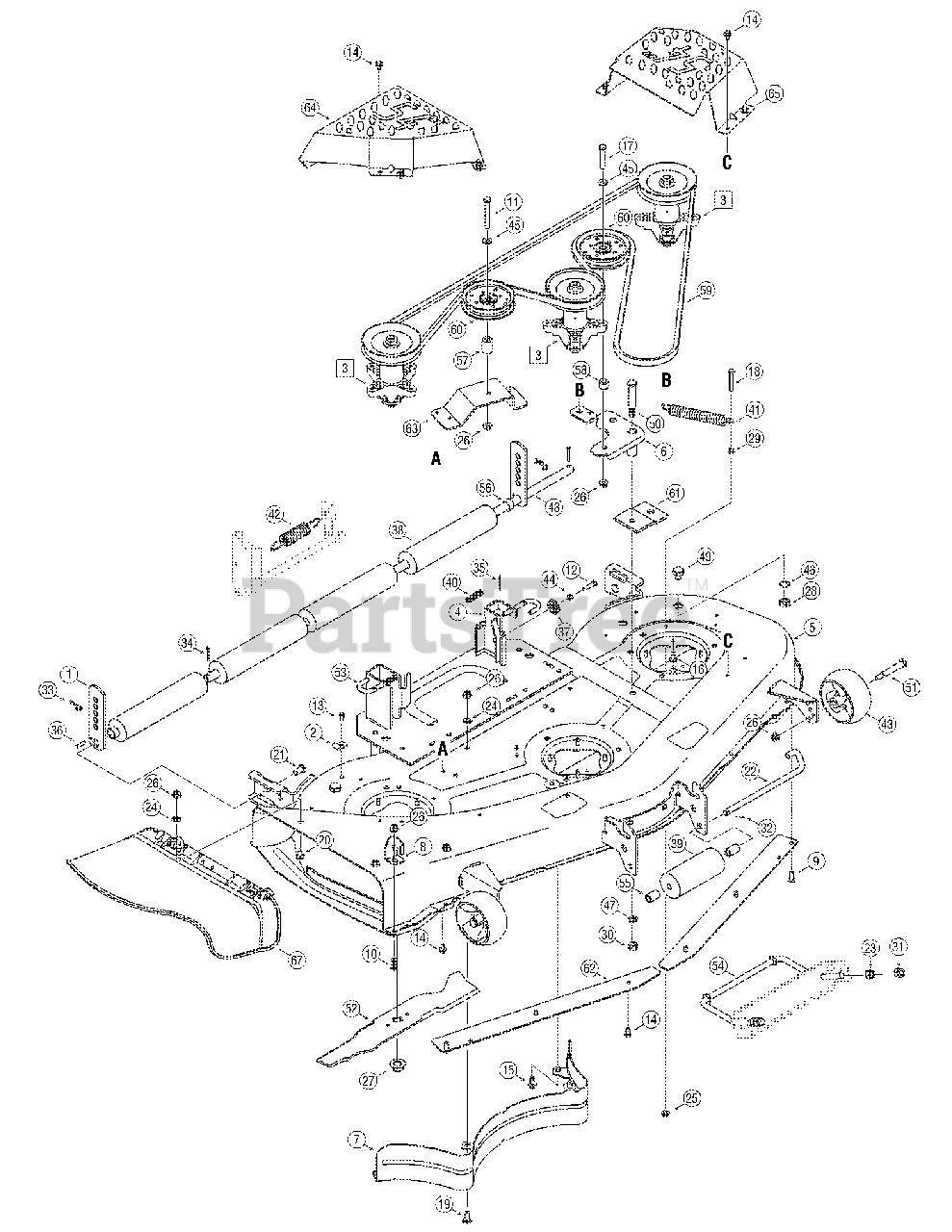

Deck Assembly Parts Diagram

  • Title

1

MTD 12650

Height Adjustment Bracket

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

2

MTD 16606

Retainer Hook Bracket
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

3

MTD 618-0671

Pulley Spindle Assy. 5.39 x.5625
(Superseded to 918-04608A)

$153.99

$

In Stock, Qty 16

0

4

MTD 683-0254B

Deck Hanger Bracket Assembly

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

MTD 683-04113A

Deck Assembly 54" SD GT
(Superseded to 983-04113B)

Variations

MTD 683-04113A-0716

SHELL-54" DECK - CUB YELLOW-99 (0716)

$1098.99

$

Usually ships in 3-6 days

0

MTD 683-04113A-0637

SHELL-54" DECK - POWDER BLACK (0637)

$1098.99

$

Usually ships in 3-6 days

0

MTD 683-04113A-0650

DECK-54" - RED METALLIC (0650)

$1098.99

$

Usually ships in 3-6 days

0

MTD 683-04113A-0665

DECK SHELL 54" GREEN - YARDMAN GREEN (0665)

$1098.99

$

Usually ships in 3-6 days

0

MTD 683-04113A-0668

SHELL-54" DECK - MOSS GREEN (0668)

$

$

Not available

MTD 683-04113A-4008

SHELL-54" DECK - WINE RED (4008)

$

$

Not available

$1027.99

$

Usually ships in 3-6 days

0

6

MTD 683-0459

Idler Assembly 54"

Variations

MTD 683-0459-0637

Idler Assembly, 54" GT - POWDER BLACK (0637)

$74.99

$

In Stock, only 1 left!

0

MTD 683-0459-4008

Idler Assembly, 54" GT - WINE RED (4008)

$74.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

7

MTD 703-2093

Baffle, Inner, RR
(Superseded to 703-2093C)

Variations

MTD 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

MTD 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

8

MTD 703-3279

Chute Stop Deflector

Variations

MTD 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

Usually ships in 3-6 days

0

MTD 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

9

MTD 710-0216

HH Cap Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

10

MTD 710-04095

HH Cap Screw 3/8-16 x 1.00

$5.49

$

In Stock, Qty 20+

0

11

MTD 710-0521

HH Cap Screw 3/8-16 x 3.00

$5.49

$

In Stock, Qty 11

0

12

MTD 710-0528

HH Cap Screw 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0599

TT Screw 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0607

TT Screw 5/16-18 x.500

$6.99

$

In Stock, Qty 11

0

15

MTD 710-0623

TT Screw 3/8-16 x.750

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-1260A

LD Screw 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-3011

HH Cap Screw 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

18

MTD 710-3103

HH Cap Screw 5/16-18 x 2.00

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3168

Carriage Bolt 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-3178

Carriage Bolt 3/8-16 x.75

$4.49

$

In Stock, Qty 20+

0

21

MTD 711-0332

Clevis Pin.50 x.78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

22

MTD 711-1737

Roller Pin.5" x 10.06

$25.99

$

In Stock, Qty 6

0

23

MTD 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-0229

Push Nut 3/8

$3.99

$

In Stock, Qty 20+

0

25

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-0417A

Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

28

MTD 712-0641

Hex Nut M16-1.5 DIN 936

$6.49

$

In Stock, Qty 7

0

29

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-3022

Hex Lock Nut 1/2-13

$3.99

$

In Stock, Qty 20+

0

31

MTD 712-3083

Hex Lock Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

32

MTD 714-0111

Cotter Pin 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

33

MTD 714-0145

Click Pin.092 x 1.64

$4.99

$

In Stock, Qty 20+

0

34

MTD 714-0162

Cotter Pin 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

35

MTD 714-0470

Cotter Pin 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

36

MTD 715-0108

Spring Pin 1/4 x 1.00

$4.99

$

In Stock, Qty 15

0

37

MTD 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 14

0

38

MTD 731-0335

Deck Roller

$72.99

$

In Stock, Qty 11

0

39

MTD 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

40

MTD 732-0306A

Compression Spring.531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

41

MTD 732-0459B

Extension Spring.94 x 6.74
(Superseded to 732-0459C)

$18.99

$

In Stock, only 3 left!

0

42

MTD 732-0934

Extension Spring 1.15 x 5.99

$11.99

$

In Stock, only 1 left!

0

43

MTD 734-04155

Deck Wheel 5.0 Dia. Ball

$20.99

$

In Stock, Qty 20+

0

44

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

45

MTD 736-0300

Flat Washer.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0760

Lock Washer

$4.49

$

In Stock, Qty 7

0

47

MTD 736-0921

Lock Washer 1/2

$4.49

$

In Stock, Qty 6

0

48

MTD 738-0295

Shaft.750 x.47.12

$124.99

$

In Stock, only 2 left!

0

49

MTD 738-04146

Screw Plug M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

50

MTD 738-1229A

Shoulder Screw.625 x 2.50 x 1/2-13

$12.99

$

In Stock, only 4 left!

0

51

MTD 738-3056

Shoulder Screw 1/2 x 2.50
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

52

MTD 742-0677

Blade18.50" Long
(Superseded to 942-0677B)

$30.99

$

In Stock, Qty 20+

0

53

MTD 747-1116

Deck Handle Rod

$12.99

$

In Stock, Qty 6

0

54

MTD 747-1324

Front Deck Adjustment Rod

$58.99

$

In Stock, only 3 left!

0

55

MTD 750-0151

Spacer.550 ID x.750 OD x 1.125
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

56

MTD 750-0212

Spacer.82 ID x 1.00 OD x.53

$10.99

$

In Stock, Qty 18

0

57

MTD 750-04597

Spacer.380 x.900 x 1.313

$

$

Not available

58

MTD 750-0933

Spacer 385 ID x.88 x.64

$3.99

$

In Stock, Qty 8

0

59

MTD 754-0642

V-Belt
(Superseded to 954-0642)

$82.99

$

In Stock, Qty 7

0

60

MTD 756-04129

Idler Pulley 4.25
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

61

MTD 783-04013A

Stabilizing Bracket

Variations

MTD 783-04013A-0637

Stabilizer Bracket - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

MTD 783-04013A-4008

Stabilizer Bracket - WINE RED (4008)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

62

MTD 783-04690

Deck Skirt
(Superseded to 783-04690B-0637)

Variations

MTD 783-04690-0637

Deck Skirt, 54" Black - POWDER BLACK (0637)

$42.99

$

In Stock, only 3 left!

0

MTD 783-04690-4008

Deck Skirt, 54" Black - WINE RED (4008)

$42.99

$

In Stock, only 3 left!

0

$42.99

$

In Stock, only 3 left!

0

63

MTD 783-04726

Idler Bracket, Stationary

Variations

MTD 783-04726-0637

Idler Pulley Bracket - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

MTD 783-04726-4008

Idler Pulley Bracket - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$29.99

$

Usually ships in 3-6 days

0

64

MTD 783-1470A

Spindle Cover, RH

Variations

MTD 783-1470A-0606

COVER-SPINDLE RH - MAJESTIC ORANGE (0606)

$86.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0637

Spindle Cover, RH - POWDER BLACK (0637)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0665

COVER-SPINDLE RH - YARDMAN GREEN (0665)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0716

COVER-SPINDLE RH - CUB YELLOW-99 (0716)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4021

Spindle Cover, RH - CUB YELLOW 2 (4021)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4028

Spindle Cover, RH - SEARS YELLOW (4028)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0691

COVER-SPINDLE RH - BLACK JACK (0691)

$107.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4008

COVER-SPINDLE RH - WINE RED (4008)

$86.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-4044

COVER-SPINDLE RH - CRAFTSMAN RED (4044)

$86.99

$

Usually ships in 3-6 days

0

MTD 783-1470A-0650

COVER-SPINDLE RH - RED METALLIC (0650)

$

$

Not available

$86.99

$

Usually ships in 3-6 days

0

65

MTD 783-1471

Spindle Cover, RH
(Superseded to 783-1471A)

Variations

MTD 783-1471-0606

COVER-SPINDLE LH - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471-0637

Spindle Cover, LH - POWDER BLACK (0637)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471-0650

COVER-SPINDLE LH - RED METALLIC (0650)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471-0716

Spindle Cover, LH - CUB YELLOW-99 (0716)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471-4021

Spindle Cover, LH - CUB YELLOW 2 (4021)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471-4028

Spindle Cover, LH - SEARS YELLOW (4028)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471-0665

COVER-SPINDLE LH - YARDMAN GREEN (0665)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471-0691

COVER-SPINDLE LH - BLACK JACK (0691)

$80.99

$

Usually ships in 3-6 days

0

MTD 783-1471-4008

COVER-SPINDLE LH - WINE RED (4008)

$80.99

$

Usually ships in 3-6 days

0

$69.99

$

Usually ships in 3-6 days

0

67

MTD 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 4 left!

0

MTD 737-04003C

Water Port (not shown)
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

MTD 721-04041

Hose Coupler (not shown)
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0
