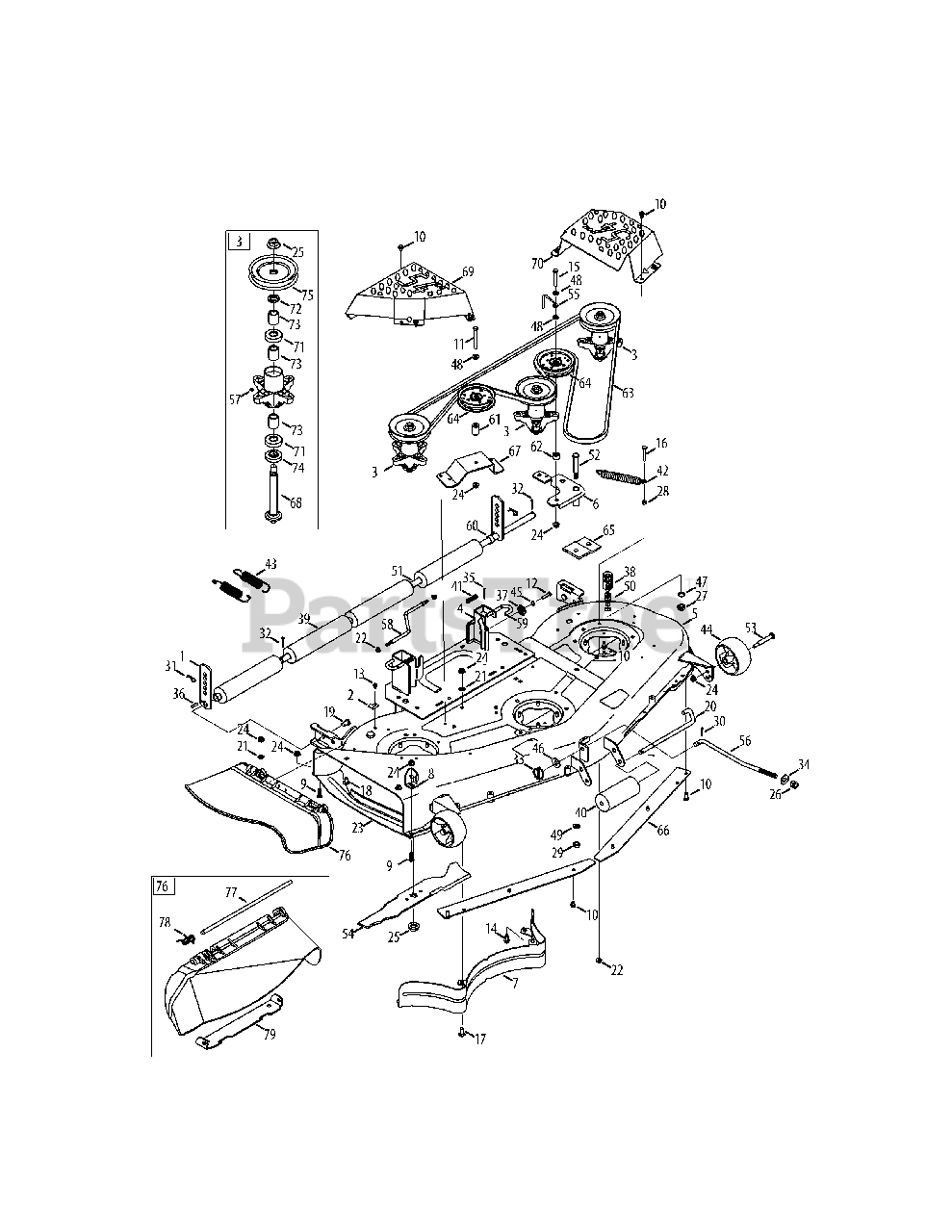

14AK945K004 - MTD Gold Garden Tractor (2011) Mower Deck Parts Diagram

Gold Garden Tractor

Mower Deck Parts Diagram

  • Title

1

MTD 12650

Height Adjust Bracket

Variations

MTD 12650-0637

Height Adjuster, Powder Black - POWDER BLACK (0637)

$43.99

$

In Stock, only 3 left!

0

MTD 12650-4008

Height Adjuster - WINE RED (4008)

$43.99

$

In Stock, only 3 left!

0

$35.99

$

Usually ships in 3-6 days

0

2

MTD 96606

Retainer Hook Bracket

$7.49

$

In Stock, Qty 7

0

3

MTD 918-04608A

Spindle Assembly

$153.99

$

In Stock, Qty 16

0

4

MTD 683-0254B-0691

Deck Hanger Bracket Assembly
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

5

MTD 983-04652-0691

Deck Assembly
(Superseded to 983-04652B-0691)

$828.99

$

Usually ships in 3-6 days

0

6

MTD 683-0459-0637

Idler Assembly

$74.99

$

In Stock, only 1 left!

0

7

MTD 703-2093-0637

Inner Baffle
(Superseded to 703-2093C-0637)

$96.99

$

In Stock, only 2 left!

0

8

MTD 703-3279-0691

Deflector Chute Stop
(Superseded to 703-3279)

$40.99

$

In Stock, only 1 left!

0

9

MTD 710-04095

Hex Screw, 3/8-16:1.00

$5.49

$

In Stock, Qty 20+

0

10

MTD 710-04484

Taptite Screw, 5/16-18:.750

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0521

Hex Screw, 3/8-16:3.00

$5.49

$

In Stock, Qty 11

0

12

MTD 710-0528

Hex Screw, 5/16-18:1.25

$4.49

$

In Stock, Qty 19

0

13

MTD 710-0599

Hex Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0623

Taptite Screw, 3/8-16:0.750

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0859

Hex Screw, 3/8-16:2.50

$6.99

$

In Stock, Qty 17

0

16

MTD 710-3103

Hex Screw, 5/16-18:2.00

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-3168

Carriage Bolt, 3/8-16:1.00

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-3178

Carriage Bolt, 3/8-16:0.75

$4.49

$

In Stock, Qty 20+

0

19

MTD 911-0332

Clevis Pin, .50 DIA x .78 LG

$16.99

$

In Stock, Qty 14

0

20

MTD 911-3314

Roller Pin, 1/2 DIA x 7.31 LG
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

21

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

MTD 703-3511A-0637

Finger Guard
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

24

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

25

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

MTD 712-04243

Flexlock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

27

MTD 912-0641

Hex Nut, M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

28

MTD 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-3022

Hexlock Nut, Counterlock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

30

MTD 914-0111

Cotter Pin, 3/32:1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

31

MTD 914-0145

Click Pin, .092 x 1.64 LG
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

32

MTD 714-0162

Cotter Pin, 5/32:1.25

$4.99

$

In Stock, Qty 20+

0

33

MTD 753-04070

Lynch Pin, .1875

$9.99

$

In Stock, Qty 20+

0

34

MTD 736-0317

Washer, .630 x 1.25 x .180

$7.99

$

In Stock, Qty 20+

0

35

MTD 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

36

MTD 715-0108

Spring Pin, 1/4 DIA x 1.00 LG

$4.99

$

In Stock, Qty 15

0

37

MTD 917-04074

Deck Gear

$13.99

$

In Stock, Qty 9

0

38

MTD 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

39

MTD 731-0335

Deck Roller

$72.99

$

In Stock, Qty 11

0

40

MTD 731-05679

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

41

MTD 732-04652

Compression Spring, .535 OD x 1.751 LG

$6.99

$

In Stock, only 2 left!

0

42

MTD 732-04692

Extension Spring, .85 OD x 5.915 LG

$9.49

$

In Stock, only 1 left!

0

43

MTD 732-0934

Extension Spring, 1.15 OD x 5.99 LG

$11.99

$

In Stock, only 1 left!

0

44

MTD 734-04155

Deck Wheel

$20.99

$

In Stock, Qty 20+

0

45

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

46

MTD 936-0179

Flat Washer, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

47

MTD 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

48

MTD 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

49

MTD 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 6

0

50

MTD 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

51

MTD 738-0295

Shaft, .750 x .47.12

$124.99

$

In Stock, only 2 left!

0

52

MTD 738-1229A

Shield Screw, .625 x 2.50:1/2-13

$12.99

$

In Stock, Qty 5

0

53

MTD 938-3056

Shoulder Bolt, .496 x 2.50:3/8-16

$9.49

$

In Stock, Qty 20+

0

54

MTD 942-0677B

Blade

$30.99

$

In Stock, Qty 20+

0

55

MTD 747-04938

Belt Keeper Rod

$7.99

$

In Stock, only 1 left!

0

56

MTD 747-05141A

Deck Lift Rod
(Superseded to 747-05141B)

$22.99

$

In Stock, Qty 14

0

57

MTD 937-3000

Lube Fitting

$4.99

$

In Stock, Qty 20+

0

58

MTD 747-05462

Deck Sway Rod

$33.99

$

In Stock, only 1 left!

0

59

MTD 747-1116

Deck Release Handle Rod

$12.99

$

In Stock, Qty 6

0

60

MTD 950-0212

Spacer, .82 ID x 1.00 OD x .53
(Superseded to 750-0212)

$

$

Not available

61

MTD 750-04597

Spacer, .380 x .900 x 1.313

$

$

Not available

62

MTD 750-0933

Spacer, .385 ID x .88 x .64

$3.99

$

In Stock, Qty 8

0

63

MTD 954-04083

V Belt

$95.99

$

In Stock, only 4 left!

0

64

MTD 756-04129B

Idler Pulley, 4.25"DIA
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

65

MTD 783-04013A-0637

Pulley Stabilizer Bracket

$22.99

$

In Stock, only 1 left!

0

66

MTD 783-04690B-0637

Deck Skirt

$42.99

$

In Stock, only 3 left!

0

67

MTD 783-04726-0637

Stationary Idler Bracket

$36.99

$

Usually ships in 3-6 days

0

68

MTD 738-1197

Spindle Shaft, 6.95 LG

$41.99

$

In Stock, Qty 15

0

69

MTD 783-1470A-0691

RH Spindle Cover
(Superseded to 783-1470A-0637)

$107.99

$

Usually ships in 3-6 days

0

70

MTD 783-1471-0691

LH Spindle Cover
(Superseded to 783-1471A-0691)

$80.99

$

Usually ships in 3-6 days

0

71

MTD 941-0919

Ball Bearing, .787 ID x 1.85 OD x .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

72

MTD 748-0160A

Spacer, .790 ID x 1.25 OD x .175

$6.99

$

In Stock, only 3 left!

0

73

MTD 750-1000

Spacer, .80 x 1.10 x 1.322 LG

$4.49

$

In Stock, Qty 7

0

74

MTD 750-1349A

Spacer, .79 x 1.82 x .55 LG

$13.99

$

In Stock, only 3 left!

0

75

MTD 756-04216

Deck Pulley

$33.99

$

In Stock, only 1 left!

0

76

MTD 631-04070A

Chute Assembly
(Superseded to 631-04070C)

$122.99

$

In Stock, only 3 left!

0

77

MTD 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

78

MTD 732-04372

Torsion Spring, .44 ID x 2.0

$10.99

$

In Stock, Qty 8

0

79

MTD 783-05030

Chute Bracket

$29.99

$

In Stock, Qty 5

0
