14AK81RK744 (GT 2300) - Toro Garden Tractor (SN: 1A186H30000 & Above) (2006) FUEL TANK AND HOOD ASSEMBLY Parts Diagram

Garden Tractor

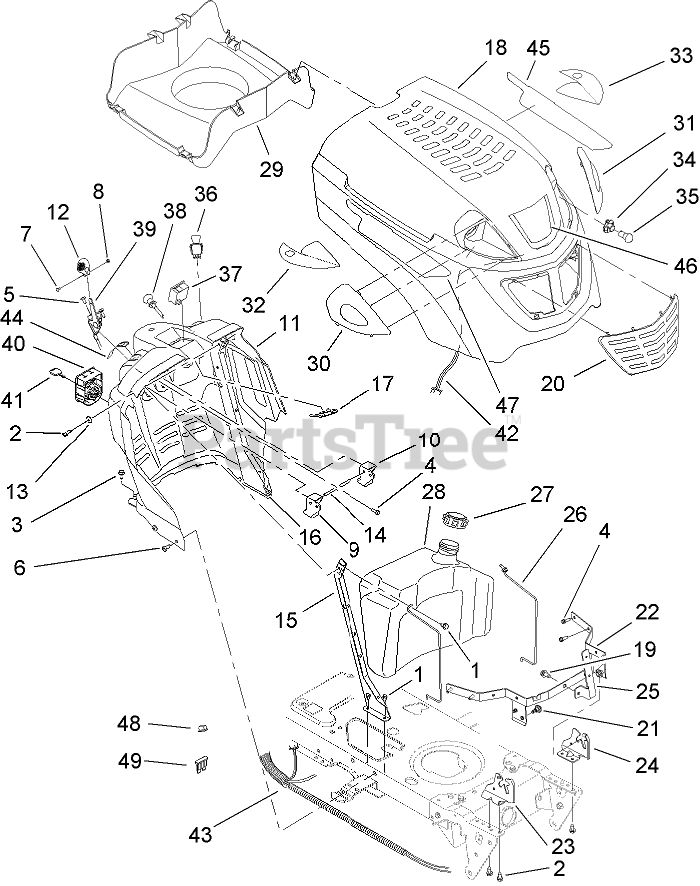

FUEL TANK AND HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 5

0

2

Toro 112-0587

SCREW-TAP

$6.99

$

In Stock, Qty 10

0

3

Toro 112-0472

SCREW-HH, TAP

$6.99

$

In Stock, only 1 left!

0

4

Toro 112-0509

SCREW-TAP

$9.99

$

In Stock, only 3 left!

0

5

Toro 112-0550

SCREW-TAP

$8.99

$

Usually ships in 3-6 days

0

6

Toro 112-0563

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

7

Toro 112-0478

SCREW-PTH

$

$

Not available

8

Toro 112-0515

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

9

Toro 112-0526

LEVER-CRUISE

$18.99

$

Usually ships in 3-6 days

0

10

Toro 112-0580

LEVER-BRAKE

$

$

Not available

11

Toro 112-0536

DASH-PTO, ELECTRIC

$156.99

$

Usually ships in 3-6 days

0

12

Toro 112-0474

KNOB-CONTROL

$

$

Not available

13

Toro 112-0485

WASHER-SPRING

$6.99

$

In Stock, only 1 left!

0

14

Toro 112-0604

ROD-LEVER, BENT

$23.99

$

Usually ships in 3-6 days

0

15

Toro 112-0583

SUPPORT-DASH, RH
(Superseded to 112-6122)

$53.99

$

Usually ships in 3-6 days

0

16

Toro 112-0591

SUPPORT-DASH, LH
(Superseded to 112-6121)

$

$

Not available

17

Toro 112-5809

BRACKET-PTO

$12.99

$

Usually ships in 3-6 days

0

18

Toro 112-0444

HOOD

$494.99

$

Usually ships in 3-6 days

0

19

Toro 112-0906

SCREW-HWHTF

$5.49

$

Usually ships in 3-6 days

0

20

Toro 112-0381

GRILL

$

$

Not available

21

Toro 112-0597

BOLT-SHOULDER
(Superseded to 112-6128)

$5.99

$

In Stock, only 2 left!

0

22

Toro 112-0555

BRACKET-PIVOT

$

$

Not available

23

Toro 112-0727

BRACKET-PIVOT, HOOD (RH)

$

$

Not available

24

Toro 112-0726

BRACKET-PIVOT, HOOD (LH)

$

$

Not available

25

Toro 112-3736

BRACKET-SUPPORT, HOOD

$

$

Not available

26

Toro 112-0678

ROD-SUPPORT

$

$

Not available

27

Toro 112-0321

CAP-FUEL
(Superseded to 112-6120)

$37.99

$

In Stock, only 1 left!

0

28

Toro 112-0414

TANK-FUEL, 3 GALLON
(Superseded to 112-6119)

$

$

Not available

29

Toro 112-5814

PLENUM-HOOD
(Superseded to 112-6141)

$122.99

$

Usually ships in 3-6 days

0

30

Toro 112-0447

LENS-RH

$15.99

$

In Stock, only 1 left!

0

31

Toro 112-0446

LENS-LH

$15.99

$

In Stock, only 1 left!

0

32

Toro 112-5810

REFLECTOR-RH

$

$

Not available

33

Toro 112-5811

REFLECTOR-LH

$

$

Not available

34

Toro 112-0408

SOCKET-HEADLIGHT

$16.99

$

Usually ships in 3-6 days

0

35

Toro 112-0402

LAMP-12V, MINIATURE

$11.99

$

In Stock, only 1 left!

0

36

Toro 112-0411

SWITCH-ELECTRIC, PTO

$115.99

$

In Stock, only 1 left!

0

37

Toro 112-0336

METER-INDICATOR, SYSTEMS
(Superseded to 112-6117)

$

$

Not available

38

Toro 112-0310

CABLE CONTROL ASM (W/CHOKE KNOB)

$59.99

$

Usually ships in 3-6 days

0

39

Toro 112-0403

CABLE-THROTTLE

$

$

Not available

40

Toro 112-0865

MODULE-SWITCH, IGNITION
(Superseded to 112-6116)

$144.99

$

In Stock, only 3 left!

0

41

Toro 112-0312

KEY-IGNITION
(Superseded to 112-6115)

$10.99

$

In Stock, only 1 left!

0

42

Toro 112-0480

HARNESS-HEADLIGHT

$45.99

$

Usually ships in 3-6 days

0

43

Toro 112-5815

HARNESS-WIRE, 2 POST 1 TAB (SOLENOID)

$455.99

$

Usually ships in 3-6 days

0

44

Toro 112-1272

DECAL-THROTTLE, DASH

$

$

Not available

45

Toro 112-1278

DECAL-HOOD, LEFT SIDE

$

$

Not available

46

Toro 112-1285

DECAL-HOOD, TORO

$

$

Not available

47

Toro 112-1279

DECAL-HOOD, RIGHT SIDE

$

$

Not available

48

Toro 112-5921

RELAY

$89.99

$

In Stock, only 1 left!

0

49

Toro 112-5943

FUSE-20 AMP

$7.49

$

Usually ships in 3-6 days

0
