14AK81RK744 (GT 2300) - Toro Garden Tractor (SN: 1A186H30000 & Above) (2006) BRAKE AND TRACTION ASSEMBLY Parts Diagram

Garden Tractor

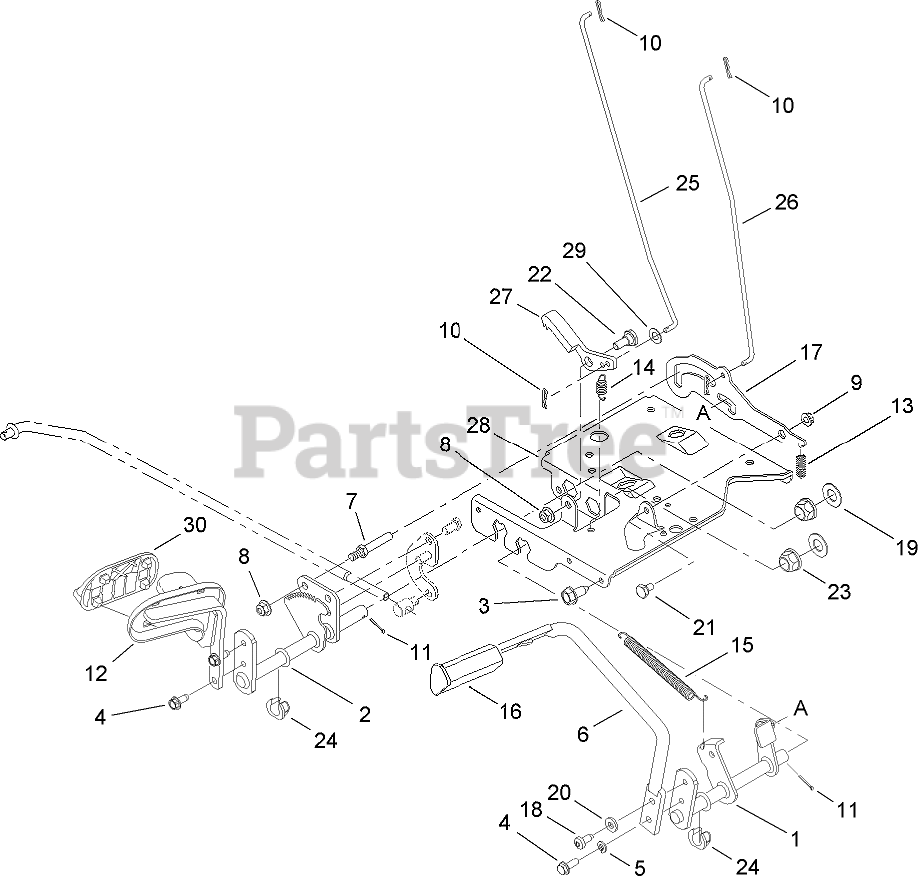

BRAKE AND TRACTION ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0648

BRAKE CONTROL ASM

$

$

Not available

2

Toro 112-0850

CONTROL ASM

$

$

Not available

3

Toro 112-0472

SCREW-HH, TAP

$7.49

$

In Stock, only 1 left!

0

4

Toro 112-0404

SCREW-HWHTF

$

$

Not available

5

Toro 112-0366

WASHER-LOCK

$

$

Not available

6

Toro 112-3738

PEDAL-BRAKE

$

$

Not available

$

$

Not available

8

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

9

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

10

Toro 112-0459

PIN-COTTER

$

$

Not available

11

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

12

Toro 112-0851

CONTROL PEDAL ASM

$

$

Not available

13

Toro 112-0506

SPRING

$

$

Not available

14

Toro 112-0510

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

15

Toro 112-0348

SPRING-EXTENSION

$16.99

$

In Stock, only 3 left!

0

16

Toro 112-0530

PAD-BRAKE

$25.99

$

In Stock, only 1 left!

0

17

Toro 112-5812

BRACKET-LOCKOUT

$

$

Not available

18

Toro 112-0563

SCREW-TAP

$

$

Not available

19

Toro 112-0339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

20

Toro 112-0579

WASHER-FLAT

$11.99

$

Usually ships in 3-6 days

0

21

Toro 112-0542

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

22

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

23

Toro 112-0347

BEARING-FLANGE

$16.99

$

Usually ships in 3-6 days

0

24

Toro 112-0387

BEARING-FLANGE, HEX (SPLIT)

$12.99

$

In Stock, only 3 left!

0

25

Toro 112-0662

ROD-CONTROL, CRUISE

$

$

Not available

26

Toro 112-0675

ROD-BRAKE, LOCK CONTROL
(Superseded to 112-6150)

$41.99

$

Usually ships in 3-6 days

0

27

Toro 112-0696

LATCH-CRUISE

$

$

Not available

28

Toro 112-0681

BRACKET-SUPPORT, STEERING

$89.99

$

In Stock, only 3 left!

0

29

Toro 112-0541

Washer-Flat

$7.49

$

Usually ships in 3-6 days

0

30

Toro 112-0543

PAD-PEDAL

$

$

Not available
