14AK81RK544 (GT 2300) - Toro Garden Tractor (SN: 1A186H30000 & Above) (2006) STEERING SHAFT AND FRONT AXLE ASSEMBLY Parts Diagram

Garden Tractor

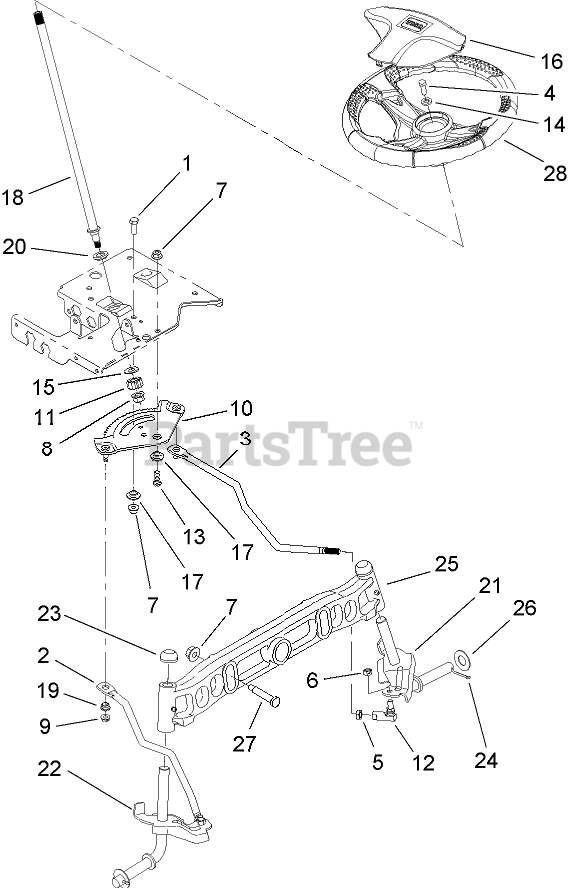

STEERING SHAFT AND FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0492

SCREW-HH

$7.49

$

In Stock, only 2 left!

0

2

Toro 112-0355

LINK-DRAG, RH

$

$

Not available

3

Toro 112-0346

LINK-DRAG, LH

$

$

Not available

4

Toro 112-0473

SCREW-HH

$

$

Not available

5

Toro 112-0493

NUT-JAM

$7.49

$

In Stock, only 4 left!

0

6

Toro 112-0483

NUT-HEX, LOCK

$

$

Not available

7

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

8

Toro 112-0859

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 2 left!

0

9

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

10

Toro 112-0862

GEAR-STEERING
(Superseded to 119-3976)

$148.99

$

In Stock, only 3 left!

0

11

Toro 112-0863

GEAR-PINION, STEERING

$20.99

$

In Stock, Qty 5

0

12

Toro 112-0917

BALL JOINT ASM

$40.99

$

In Stock, Qty 7

0

13

Toro 112-0631

SCREW-HH

$7.49

$

In Stock, Qty 7

0

14

Toro 112-0924

WASHER-FLAT

$7.49

$

In Stock, only 2 left!

0

15

Toro 112-0925

WASHER-FLAT

$7.49

$

In Stock, Qty 13

0

16

Toro 112-0341

COVER-WHEEL, STEERING

$25.99

$

Usually ships in 3-6 days

0

17

Toro 112-0881

SPACER-SHOULDER

$9.99

$

In Stock, Qty 20+

0

18

Toro 112-5804

SHAFT-STEERING

$125.99

$

In Stock, only 2 left!

0

19

Toro 112-0929

BUSHING

$7.49

$

In Stock, Qty 20+

0

20

Toro 112-0930

BEARING-FLANGE, HEX

$10.99

$

In Stock, only 4 left!

0

21

Toro 112-0687

LH AXLE ASM
(Superseded to 112-6016)

$129.99

$

Usually ships in 3-6 days

0

22

Toro 112-0405

RH AXLE ASM
(Superseded to 112-6015)

$129.99

$

Usually ships in 3-6 days

0

23

$7.49

$

In Stock, only 2 left!

0

24

Toro 112-0519

PIN-COTTER

$7.99

$

In Stock, only 1 left!

0

25

Toro 112-0416

AXLE-PIVOT, FRONT

$

$

Not available

26

Toro 112-0396

WASHER-FLAT
(Superseded to 112-5972)

$

$

Not available

27

Toro 112-0486

BOLT-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

28

Toro 112-0438

WHEEL-STEERING, SOFTGRIP

$

$

Not available
