14AK81RK544 (GT 2300) - Toro Garden Tractor (SN: 1A186H30000 & Above) (2006) IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV735-0011 Parts Diagram

Garden Tractor

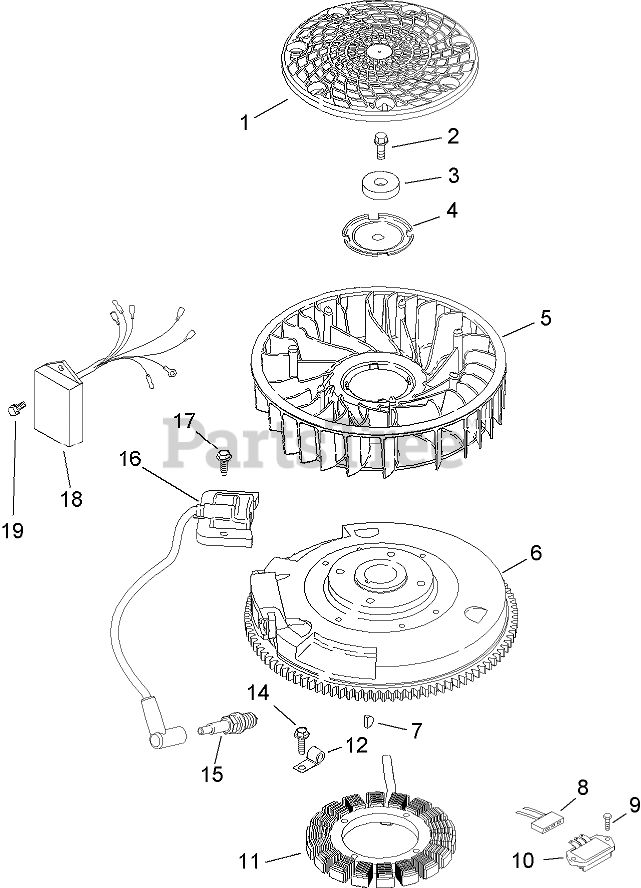

IGNITION AND ELECTRICAL ASSEMBLY KOHLER SV735-0011 Parts Diagram

  • Title

1

Kohler 32 162 03-S

SCREEN-GRASS

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, Qty 7

0

2

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 12

0

3

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, only 2 left!

0

4

Kohler 20 146 02-S

Plate-Fan Mounting
(Superseded to 20 146 05-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 11

0

5

Kohler 32 157 01-S

Fan

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

3202505-S

Flywheel

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler X-42-15-S

KEY (3/16 X 5/8)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 6

0

8

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

Note: Obtain parts from www.kohlerplus.com

$24.99

$

In Stock, only 1 left!

0

9

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

10

Kohler 41 403 09-S

Rectifier-Regulator
(Superseded to 41 403 10-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

3208501-S

15 Amp Stator Kit

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 47 154 01-S

CLIP-CABLE

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 4 left!

0

14

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

15

Toro 77-7330

PLUG-SPARK

Note: Obtain parts from www.kohlerplus.com

$4.49

$

In Stock, Qty 20+

0

15

Toro 77-7330

PLUG-SPARK

Note: Obtain from your local Toro dealer

$4.49

$

In Stock, Qty 20+

0

16

Kohler 24 584 36-S

Module-Ignition

Note: Obtain parts from www.kohlerplus.com

$102.99

$

In Stock, only 1 left!

0

17

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 20+

0

18

Kohler 24 584 31-S

Module-Advance, Spark
(Superseded to 24 755 172-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

19

Kohler M-448010-S

Screw, hex. cap

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

20

3217603-S

Harness, wiring

Note: Not illustrated

$

$

Not available

21

Kohler 25 454 03-S

TIE-WIRE

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0
