14AK81RK544 (GT 2300) - Toro Garden Tractor (SN: 1A186H30000 & Above) (2006) FRAME AND BATTERY ASSEMBLY Parts Diagram

Garden Tractor

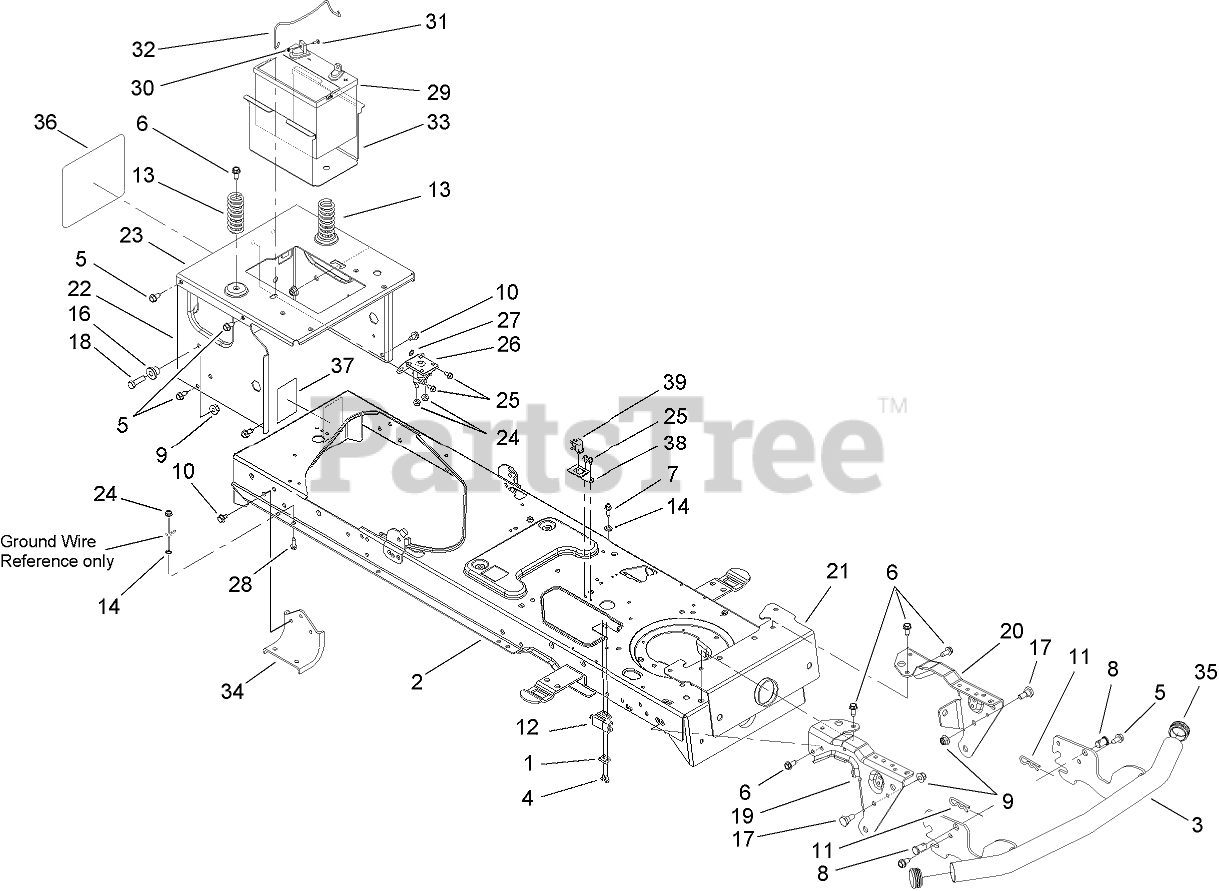

FRAME AND BATTERY ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0671

PLATE-SWITCH

$

$

Not available

2

Toro 112-0705

LOWER FRAME ASM
(Superseded to 112-5974)

$

$

Not available

3

Toro 112-0954

BUMPER ASM

$

$

Not available

4

Toro 112-0651

SCREW-TAP

$

$

Not available

5

Toro 112-0472

SCREW-HH, TAP

$7.99

$

In Stock, only 1 left!

0

6

Toro 112-0395

SCREW-HWH

$14.99

$

In Stock, Qty 19

0

7

Toro 112-0659

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

8

Toro 112-0376

PIN-BRACKET, LIFT

$29.99

$

Usually ships in 3-6 days

0

9

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 9

0

10

Toro 112-0676

SCREW-TAP

$

$

Not available

11

Toro 112-0394

PIN-HAIR

$

$

Not available

12

Toro 112-0455

SWITCH-INTERLOCK

$47.99

$

Usually ships in 3-6 days

0

13

Toro 112-0501

SPRING-COMPRESSION

$17.99

$

Usually ships in 3-6 days

0

14

Toro 112-0703

WASHER-LOCK, EXTERNAL

$

$

Not available

16

Toro 112-0661

SPACER-SHOULDER

$

$

Not available

17

Toro 112-0565

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

18

Toro 112-0557

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

19

Toro 112-0620

BRACKET-PIVOT, SUPPORT

$

$

Not available

20

Toro 112-0610

BRACKET-PIVOT, SUPPORT

$93.99

$

Usually ships in 3-6 days

0

21

Toro 112-0640

BRACKET-PIVOT, BAR

$

$

Not available

22

Toro 112-0728

FRAME-UPPER
(Superseded to 112-6107)

$

$

Not available

23

Toro 112-0647

BRACKET-FRAME, SEAT

$

$

Not available

24

Toro 112-0636

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 1 left!

0

25

Toro 112-0524

SCREW-HWHTF

$7.99

$

In Stock, Qty 5

0

26

Toro 112-0309

SOLENOID-12V, 2 Post 1 Tab

$38.99

$

In Stock, only 2 left!

0

27

Toro 112-0703

WASHER-LOCK, EXTERNAL

$

$

Not available

28

Toro 112-0587

SCREW-TAP

$7.99

$

In Stock, Qty 10

0

29

Toro 112-0425

BATTERY-245, CCA (DRY FLAT TOP)

$165.99

$

Usually ships in 3-6 days

0

30

Toro 112-5805

NUT-SEMS

$

$

Not available

31

Toro 112-0479

BOLT-CARR

$

$

Not available

32

Toro 112-0581

ROD-HOLDDOWN, BATTERY

$10.99

$

In Stock, only 2 left!

0

33

Toro 112-5806

TRAY-BATTERY
(Superseded to 112-0570)

$

$

Not available

34

Toro 112-0710

BRACKET-AXLE
(Superseded to 119-9105)

$47.99

$

Usually ships in 3-6 days

0

35

Toro 112-5807

BUMPER-CAP
(Superseded to 112-5968)

$10.99

$

Usually ships in 3-6 days

0

36

Toro 112-1284

DECAL-TORO

$

$

Not available

37

Toro 112-3715

DECAL-BYPASS

$

$

Not available

38

Toro 112-3737

BRACKET-SWITCH, PARKING BRAKE

$

$

Not available

39

Toro 112-0441

SWITCH-MOUNT, SNAP

$

$

Not available
