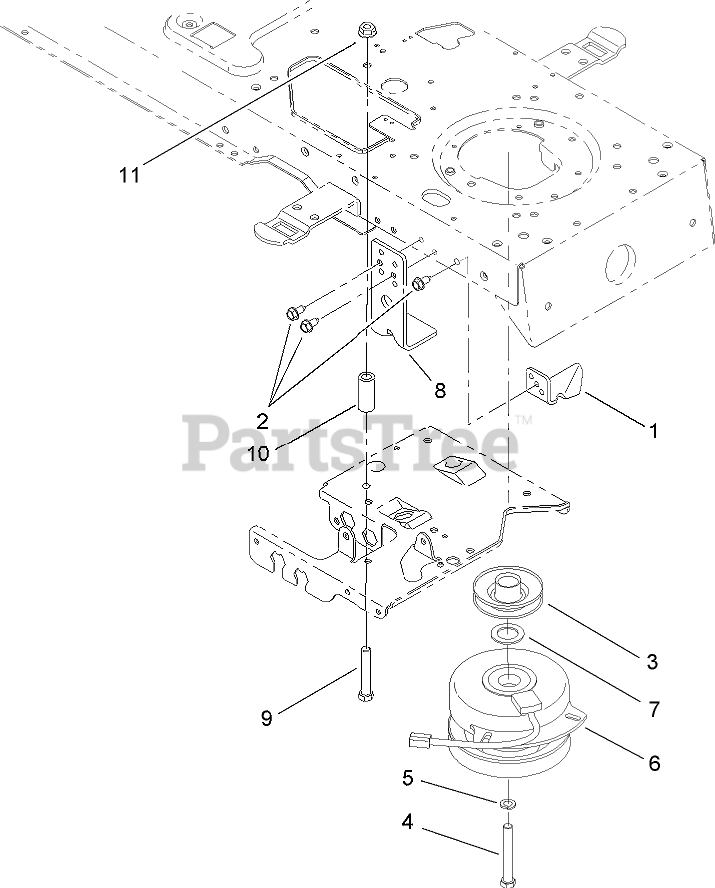

14AK81RK544 (GT 2300) - Toro Garden Tractor (SN: 1A186H30000 & Above) (2006) ELECTRIC CLUTCH ASSEMBLY Parts Diagram

Garden Tractor

ELECTRIC CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0571

BRACKET-CLUTCH

$

$

Not available

2

Toro 112-0472

SCREW-HH, TAP

$7.49

$

In Stock, only 1 left!

0

3

Toro 112-5822

PULLEY-ENGINE

$134.99

$

Usually ships in 3-6 days

0

4

Toro 112-0561

SCREW-HH

$

$

Not available

5

Toro 112-0428

WASHER-LOCK

$

$

Not available

6

Toro 112-0913

CLUTCH-ELECTRIC, PTO

$

$

Not available

7

Toro 112-0420

WASHER-FLAT

$7.49

$

In Stock, only 3 left!

0

8

Toro 112-0689

BRACKET-DECK, UP STOP

$

$

Not available

9

Toro 112-0700

SCREW-HH
(Superseded to 112-6009)

$13.99

$

Usually ships in 3-6 days

0

10

Toro 112-0433

SPACER

$

$

Not available

11

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0
