14AK81RK544 (GT 2300) - Toro Garden Tractor (SN: 1A186H30000 & Above) (2006) DECK ROLLER, BELT, COVER AND PULLEY ASSEMBLY Parts Diagram

Garden Tractor

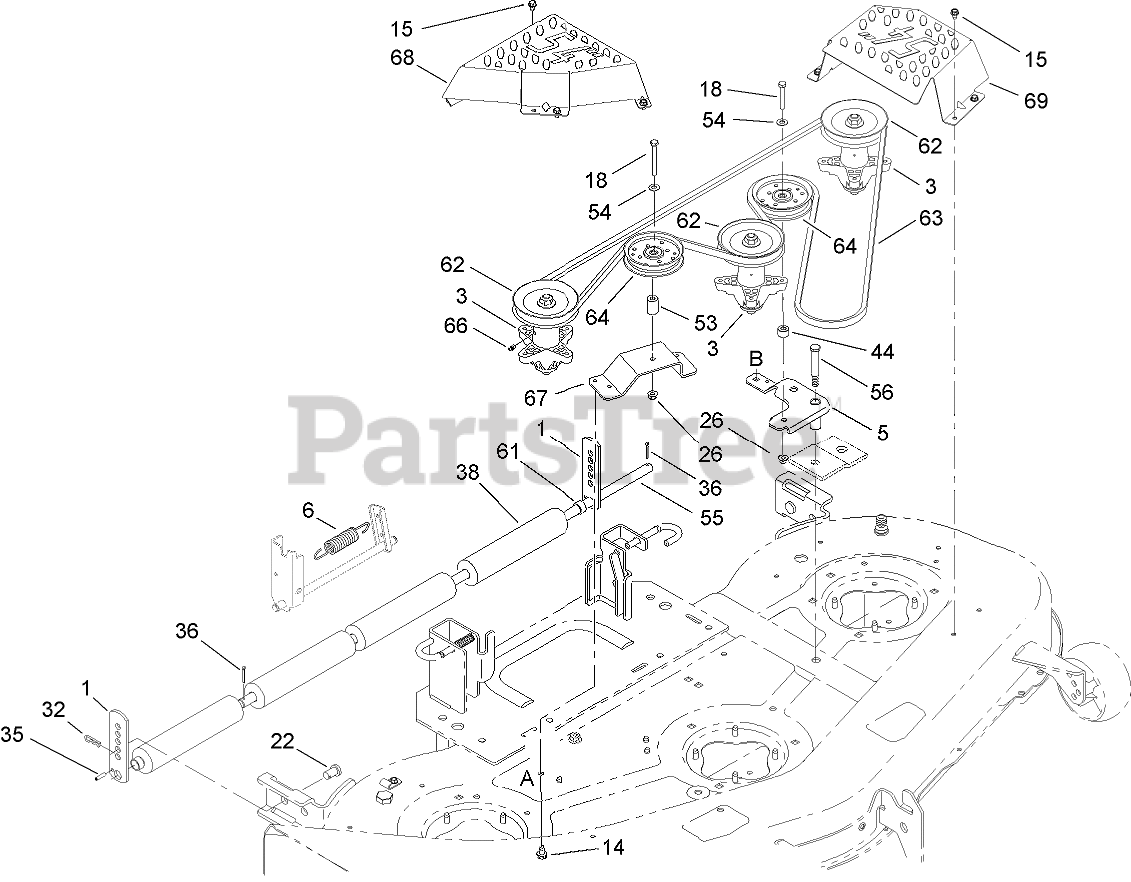

DECK ROLLER, BELT, COVER AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0845

ADJUSTER-HEIGHT

$

$

Not available

3

Toro 112-0915

SPINDLE ASM

$397.99

$

Usually ships in 3-6 days

0

5

Toro 112-0853

IDLER ASM

$

$

Not available

6

Toro 112-5871

SPRING EXTENSION

$

$

Not available

14

Toro 112-5838

SCREW-TAP

$

$

Not available

15

Toro 112-0676

SCREW-TAP

$

$

Not available

18

Toro 112-0700

SCREW-HH
(Superseded to 112-6009)

$12.99

$

Usually ships in 3-6 days

0

22

Toro 112-0376

PIN-BRACKET, LIFT

$26.99

$

Usually ships in 3-6 days

0

26

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 5

0

32

Toro 112-0912

PIN-HAIR

$

$

Not available

35

Toro 112-0861

PIN-SPRING

$7.49

$

Usually ships in 3-6 days

0

36

Toro 112-5845

PIN-SPRING

$

$

Not available

38

Toro 112-0867

ROLLER-DECK

$

$

Not available

44

Toro 112-0891

SPACER

$

$

Not available

53

Toro 112-0890

SPACER

$

$

Not available

54

Toro 112-1018

WASHER-ISOMOUNT

$6.99

$

Usually ships in 3-6 days

0

55

Toro 112-0880

SHAFT-ROLLER

$

$

Not available

56

Toro 112-0886

BOLT-SHOULDER

$

$

Not available

61

Toro 112-0932

SPACER

$

$

Not available

62

Toro 112-0505

PULLEY-DECK

$67.99

$

Usually ships in 3-6 days

0

63

Toro 112-0933

BELT-V, TYPE B

$166.99

$

Usually ships in 3-6 days

0

64

Toro 112-0314

PULLEY-IDLER

$51.99

$

In Stock, only 2 left!

0

66

Toro 112-0926

FITTING-GREASE

$7.49

$

In Stock, only 4 left!

0

67

Toro 112-5848

BRACKET-IDLER, STATIONARY

$43.99

$

Usually ships in 3-6 days

0

68

Toro 112-0903

COVER-SPINDLE, RH

$

$

Not available

69

Toro 112-0904

COVER-SPINDLE, LH

$

$

Not available
