14AK81RK544 (GT 2300) - Toro Garden Tractor (SN: 1A186H30000 & Above) (2006) DECK ASSEMBLY Parts Diagram

Garden Tractor

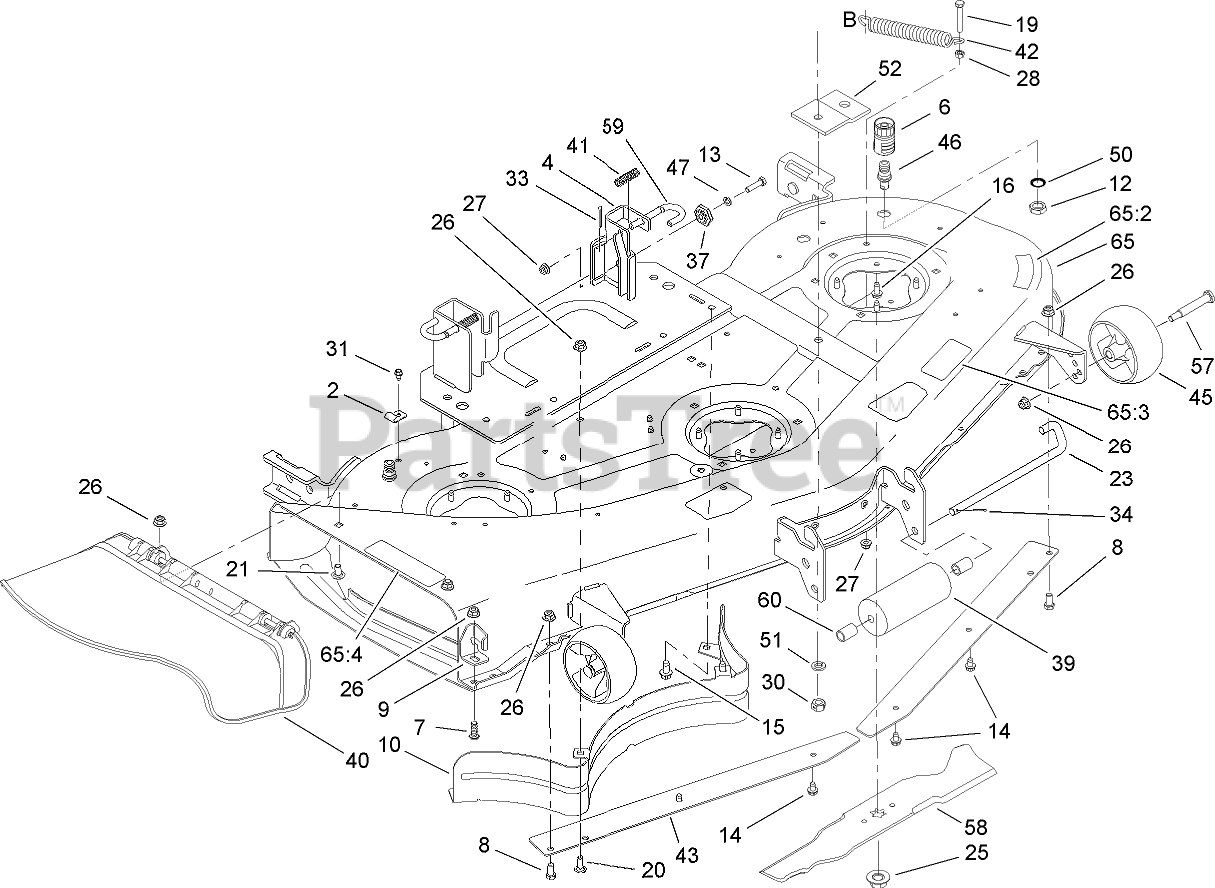

DECK ASSEMBLY Parts Diagram

  • Title

2

Toro 112-0378

BRACKET-RETAIN, HOOK

$

$

Not available

4

Toro 112-0413

LH HANGER BRACKET ASM

$81.99

$

In Stock, only 3 left!

0

6

Toro 112-0916

ADAPTER-NOZZLE, WATER

$46.99

$

Usually ships in 3-6 days

0

7

Toro 112-0631

SCREW-HH

$7.49

$

In Stock, Qty 7

0

8

Toro 112-0855

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

9

Toro 112-0854

STOP-CHUTE

$

$

Not available

10

Toro 112-5872

BAFFLE

$

$

Not available

12

Toro 112-0351

NUT-HEX

$10.99

$

Usually ships in 3-6 days

0

13

Toro 112-0373

SCREW-HH

$7.49

$

In Stock, only 4 left!

0

14

Toro 112-5838

SCREW-TAP

$

$

Not available

15

Toro 112-0906

SCREW-HWHTF

$6.99

$

Usually ships in 3-6 days

0

16

Toro 112-1083

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

19

Toro 112-5843

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

20

Toro 112-5844

BOLT-CARR

$

$

Not available

21

Toro 112-0452

BOLT-CARR

$7.49

$

Usually ships in 3-6 days

0

23

Toro 112-5839

PIN-ROLLER
(Superseded to 112-0682)

$

$

Not available

25

Toro 112-0330

NUT-LOCK, FLANGE

$11.99

$

In Stock, Qty 9

0

26

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

27

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

28

Toro 112-0437

NUT-HEX

$6.99

$

Usually ships in 3-6 days

0

30

Toro 112-1117

NUT-HEX, LOCK

$

$

Not available

31

Toro 112-0657

NUT-LOCK, FLANGE

$

$

Not available

33

Toro 112-0412

PIN-COTTER

$7.49

$

Usually ships in 3-6 days

0

34

Toro 112-5841

PIN-COTTER

$

$

Not available

37

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$25.99

$

In Stock, only 1 left!

0

39

Toro 112-5840

ROLLER
(Superseded to 112-0521)

$63.99

$

Usually ships in 3-6 days

0

40

Toro 112-5846

CHUTE DEFLECTOR ASM

$214.99

$

Usually ships in 3-6 days

0

41

Toro 112-0406

SPRING-COMPRESSION

$12.99

$

In Stock, only 1 left!

0

42

Toro 112-0349

SPRING

$36.99

$

In Stock, only 1 left!

0

43

Toro 112-0895

SKIRT-DECK

$

$

Not available

45

Toro 112-0677

WHEEL-DECK, FRONT

$28.99

$

In Stock, Qty 5

0

46

Toro 112-0879

NOZZLE-WATER, DECK

$47.99

$

Usually ships in 3-6 days

0

47

Toro 112-0366

WASHER-LOCK

$

$

Not available

50

Toro 112-0922

WASHER-LOCK

$

$

Not available

51

Toro 112-0923

WASHER-LOCK

$

$

Not available

52

Toro 112-0893

BRACKET-STABILIZER

$

$

Not available

57

Toro 112-0325

BOLT-SHOULDER

$19.99

$

Usually ships in 3-6 days

0

58

Toro 112-0931

BLADE-18.50

$58.99

$

Usually ships in 3-6 days

0

59

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$23.99

$

In Stock, only 2 left!

0

60

Toro 112-0691

SPACER

$16.99

$

Usually ships in 3-6 days

0

65

Toro 112-5862

DECK AND DECAL ASM

$2112.99

$

Usually ships in 3-6 days

0

65:2

Toro 112-1268

DECAL-DANGER, DECK

$

$

Not available

65:3

Toro 112-1273

DECAL-BELT ROUTING, DECK

$

$

Not available

65:4

Toro 112-1265

DECAL-DANGER

$

$

Not available
