14AK811P705 - Ranch King Garden Tractor (2005) Steering Parts Diagram

Garden Tractor

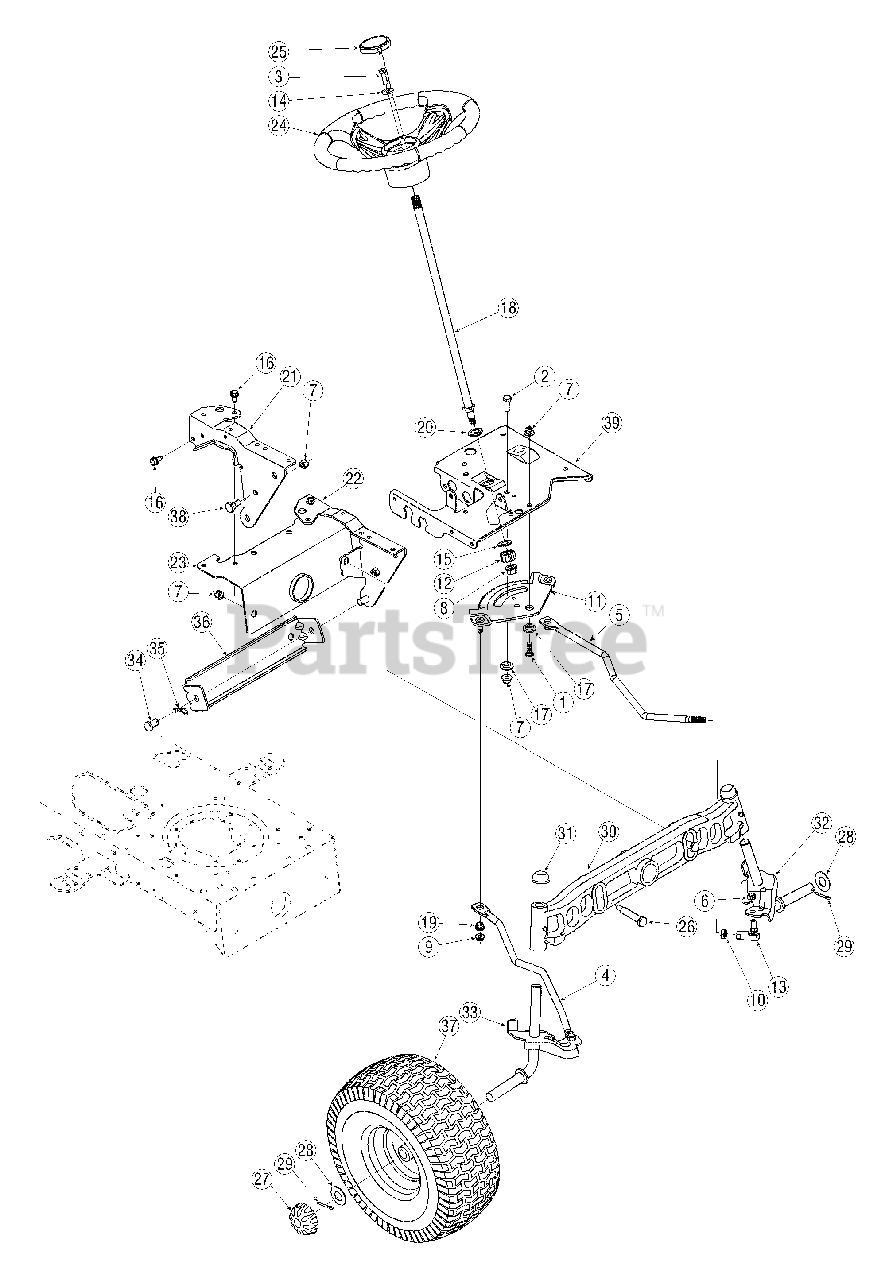

Steering Parts Diagram

  • Title

1

MTD 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$6.99

$

In Stock, Qty 5

0

4

MTD 711-1408

Link, Drag, RH

$

$

Not available

5

MTD 711-1409A

Link, Drag, LH

$

$

Not available

6

MTD 712-0214

Nut, Hex Lock, 3/8-24

$6.49

$

In Stock, only 3 left!

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-0240

Nut, Jam, 7/16-20, Gr2
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

11

MTD 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

12

MTD 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

13

MTD 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

14

MTD 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 7

0

15

MTD 736-3084

Washer, Flat, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

16

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

17

MTD 738-04154

Spacer, Shoulder, .38 x 1.00 x .31

$5.49

$

In Stock, Qty 17

0

18

MTD 738-1001A

Shaft, Steering, .625 OD x 24.25 Lg

$75.99

$

In Stock, only 3 left!

0

19

MTD 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

MTD 741-0656A

Hex Flange Bearing 5/8 PM
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

21

MTD 783-0726D

Pivot Bracket, Support RH
(Superseded to 783-0726E)

Variations

MTD 783-0726D-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0726D-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0726D-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0726D-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 783-0726D-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0726D-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0726D-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

MTD 783-0727C

Pivot Bracket, Support LH
(Superseded to 783-0727D)

Variations

MTD 783-0727C-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0727C-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0727C-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0727C-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0727C-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0727C-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

23

MTD 783-0728

Pivot Bracket, Bar
(Superseded to 783-0728B)

Variations

MTD 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

MTD 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

MTD 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

24

MTD 631-04008

Steering Wheel, 13.25
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

25

MTD 731-04040

Steering Wheel Cap, Round

$9.99

$

In Stock, only 1 left!

0

26

MTD 738-1011A

Shoulder Screw, .5 x 2.2, 3/8-16

$8.49

$

In Stock, Qty 11

0

27

MTD 731-2290A

Deluxe Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0316

Flat Washer, .78 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

29

MTD 714-04039

Cotter Pin, 5/32 x 1.25
(Superseded to 714-0162)

$4.99

$

In Stock, Qty 20+

0

30

MTD 719-04105

Cast Iron Pivot Bar
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

31

MTD 726-0341

Push Cap

$4.99

$

In Stock, Qty 20+

0

32

MTD 638-04003

LH Axle Assembly, .750
(Superseded to 638-04003AP)

$

$

Not available

33

MTD 638-04004

RH Axle Assembly, .750
(Superseded to 938-04004A)

$71.99

$

In Stock, only 1 left!

0

34

MTD 711-0332

Pin, Clevis, .50 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 18

0

35

MTD 714-04023

Cotter Pin, Internal, .080 x 1.5625

$4.49

$

In Stock, only 4 left!

0

36

MTD 783-0720A

Adjustment Bracket, Front
(Superseded to 783-0720C)

Variations

MTD 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

MTD 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

37

MTD 634-04088A

Wheel Assembly Complete,

Variations

MTD 634-04088A-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$228.99

$

Usually ships in 3-6 days

0

MTD 634-04088A-0931

WHEEL ASM COMPLETE - Carlisle Beige (0931)

$262.99

$

Usually ships in 3-6 days

0

MTD 634-04088A-0991

WHEEL ASM COMPLETE - Carlisle White (0991)

$

$

Not available

MTD 634-04088A-4009

WHEEL ASM COMPLETE - TEE WHITE (4009)

$

$

Not available

MTD 634-04088A-0941

WHEEL ASM COMPLETE - Carlisle Yellow (0941)

$

$

Not available

$228.99

$

Usually ships in 3-6 days

0

MTD 734-04148

Tire Only 16 x 7.5 x 8

Variations

MTD 734-04148-0901

Tire, 16.0 X 7.5 - Carlisle (0901)

$65.99

$

Usually ships in 3-6 days

0

MTD 734-04148-0904

Tire, 16.0 X 7.5 - Cheng (0904)

$65.99

$

Usually ships in 3-6 days

0

$146.99

$

Usually ships in 3-6 days

0

MTD 634-04082

Rim Only w/ Valve Stem
(Superseded to 934-04082)

Variations

MTD 634-04082-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$131.99

$

In Stock, Qty 5

0

MTD 634-04082-0662

RIM ASM 8 X 5.38 - OYSTER GRAY (0662)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-04082-0674

RIM ASSEMBLY - YARDMAN YELLOW (0674)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-04082-4009

RIM ASM - TEE WHITE (4009)

$131.99

$

Usually ships in 3-6 days

0

MTD 634-04082-4042

RIM ASM 8 X 5.38 - CRAFTSMAN GRAY (4042)

$131.99

$

Usually ships in 3-6 days

0

$106.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Tubeless Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

38

MTD 738-0143

Screw, Shoulder, .498 x .340, 3/8-16

$4.49

$

In Stock, Qty 20+

0

39

MTD 783-04612

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0
