14AK811P705 - Ranch King Garden Tractor (2005) Hood Parts Diagram

Garden Tractor

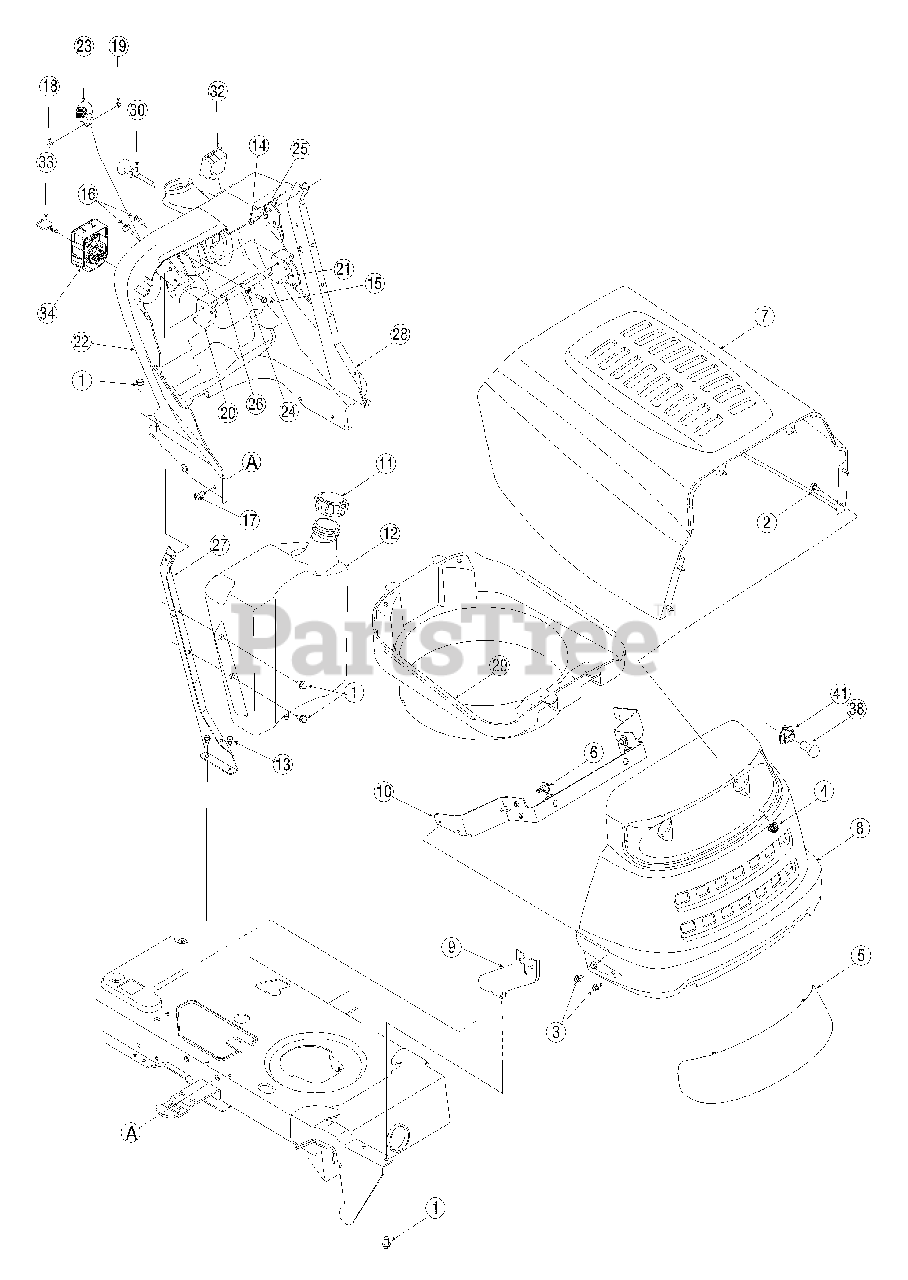

Hood Parts Diagram

  • Title

1

MTD 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0751

Hex Head Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-1652

Hex Washer Hd Tapp Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-04949

No. 1 Style Grill Lens
(Superseded to 731-04949A)

$26.99

$

In Stock, only 3 left!

0

6

MTD 738-04091

Shoulder Tapp Screw .43 x .29 5/16-18
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

7

MTD 783-04551

No. 1 Style Hood

Variations

MTD 783-04551-0499

HOOD-1 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-04551-0638

HOOD-1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04551-0640

No Longer Available HOOD-1 STY - CO-OP GREEN (0640)

$

$

Not available

MTD 783-04551-0662

HOOD-1 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-04551-0674

HOOD-1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-04551-0691

HOOD-1 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-04551-0709

HOOD-1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04551-0729

HOOD-1 STYLE - STORM GRAY (0729)

$

$

Not available

MTD 783-04551-4015

HOOD-1 STYLE - FIRE RED (4015)

$

$

Not available

$

$

8

MTD 783-04552

No. 1 Style Grill LT-5

Variations

MTD 783-04552-0662

GRILLE 1 STYLE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-04552-0674

GRILLE 1 STYLE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-04552-0499

GRILLE 1 STYLE - CUB BEIGE (0499)

$

$

Not available

MTD 783-04552-0638

GRILL 1 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04552-0640

GRILLE 1 STYLE - CO-OP GREEN (0640)

$

$

Not available

MTD 783-04552-0691

GRILLE 1 STYLE - BLACK JACK (0691)

$

$

Not available

MTD 783-04552-0709

GRILLE 1 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04552-0729

GRILLE 1 STYLE - STORM GRAY (0729)

$

$

Not available

$

$

9

MTD 783-04578

Pivot Bracket RH
(Superseded to 783-04578A-0637)

Variations

MTD 783-04578-0637

Pivot Bracket, RH - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

MTD 783-04577

Pivot Bracket LH
(Superseded to 783-04577A-0637)

Note: (Not Shown)

Variations

MTD 783-04577-0637

Pivot Bracket, LH - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 783-04621

No. 1 Style Grill Pivot Bracket

Variations

MTD 783-04621-0637

Grill Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

12

MTD 751-0658E

3 Gal. Fuel Tank

$115.99

$

In Stock, only 3 left!

0

13

MTD 710-0599

Hex Washer Tapp Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0642

Hex Washer Tapp Screw 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0895

Hex Washer Lock Screw 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

16

MTD 710-1017

Screw, 1/4-14, 0.625

$8.49

$

In Stock, Qty 9

0

17

MTD 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

18

MTD 710-3217

Screw, Machine, #8-32, 0.375

$6.99

$

In Stock, Qty 7

0

19

MTD 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 10

0

20

MTD 731-04215

Cruise Dash Lever Style 8&9
(Superseded to 931-04215)

$

$

Not available

21

MTD 731-04217

Brake Dash Lever Style 8&9
(Superseded to 931-04217)

$11.99

$

In Stock, only 1 left!

0

22

MTD 731-05005

Dash Panel W/ Evac Style 8&9
(Superseded to 731-06169)

$

$

Not available

23

MTD 731-1857

Control Knob

$14.99

$

In Stock, only 4 left!

0

24

MTD 736-0142

Washer, Flat, .281 x .50 x .063

$4.99

$

In Stock, Qty 20+

0

25

MTD 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

26

MTD 747-1196

Bent Lever Rod

$15.99

$

Usually ships in 3-6 days

0

27

MTD 783-04285B

Support Plate, Dash, RH
(Superseded to 783-04285F-0637)

Variations

MTD 783-04285B-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 783-04323B

Support Plate, Dash, LH
(Superseded to 783-04323F-0637)

Variations

MTD 783-04323B-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

29

MTD 731-05165

No. 1 Style Hood Plenum
(Superseded to 731-05165A)

$47.99

$

Usually ships in 3-6 days

0

30

MTD 746-1085A

Choke Control
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

31

MTD 746-1086

Throttle Cable
(Superseded to 946-1086)

Note: (Not Shown)

$33.99

$

In Stock, only 1 left!

0

32

MTD 725-04036A

Hour Indicator Meter
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

33

MTD 725-1745

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

34

MTD 725-1744

Key Module Switch
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

35

MTD 17962

Switch Plate

Note: (Not Shown)

$4.99

$

In Stock, only 3 left!

0

36

MTD 629-04137

Kohler Electric Harness

Note: (Not Shown)

$

$

Not available

37

MTD 725-04039

Interlock Switch
(Superseded to 925-04039)

Note: (Not Shown)

$24.99

$

In Stock, Qty 7

0

38

MTD 725-0963

Miniature Lamp 12 V Socket
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

39

MTD 710-0224

Screw #10-16
(Superseded to 910-0224)

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0

40

MTD 725-1649

Lamp Socket 1/4 turn
(Superseded to 925-1649A)

Note: (Not Shown)

$11.99

$

In Stock, Qty 20+

0

41

MTD 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

Note: (Not Shown)

$70.99

$

In Stock, only 2 left!

0
