14AK811P705 - Ranch King Garden Tractor (2005) Fender Assembly Parts Diagram

Garden Tractor

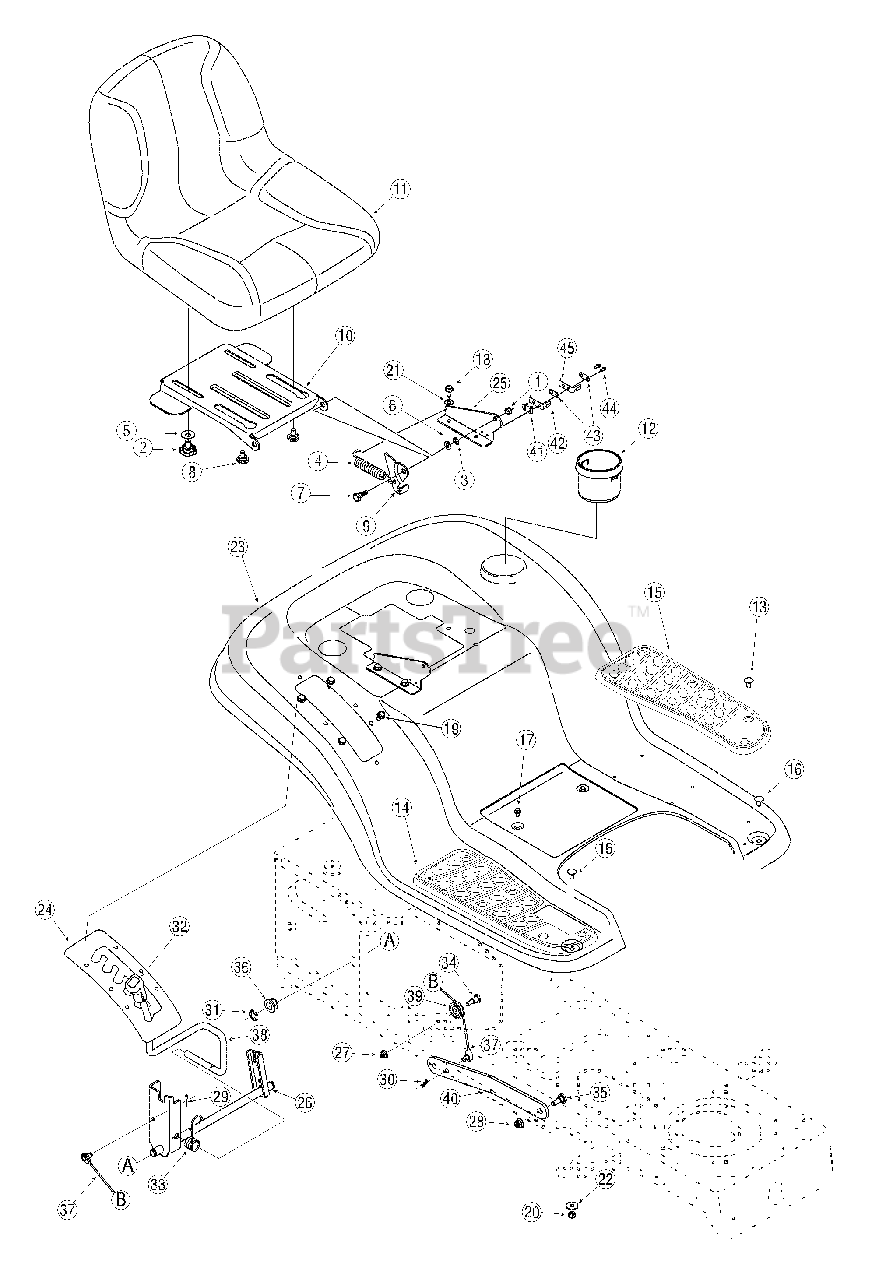

Fender Assembly Parts Diagram

  • Title

1

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

2

MTD 720-04009

Knob 3/8-16 x .625
(Superseded to 720-04009A)

$16.99

$

In Stock, only 2 left!

0

3

MTD 726-0201

Speed Clip

$6.99

$

Usually ships in 3-6 days

0

4

MTD 732-1184

Extension Spring,.84 x 4.6

$11.99

$

In Stock, only 1 left!

0

5

MTD 736-0101

Flat Washer, .406 x 1.00 .030
(Superseded to 936-0101)

$4.99

$

Usually ships in 3-6 days

0

6

MTD 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

7

MTD 738-0296

Shoulder Screw,.437 x.286

$4.49

$

In Stock, Qty 20+

0

8

MTD 738-04012

Shoulder Screw .625 x .175: 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 10

0

9

MTD 783-0209C

Seat Lift Bracket
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

10

MTD 783-04081A

Seat Pivot Bracket, Manual Adjustment

Variations

MTD 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

MTD 783-04081A-4008

Seat Pivot Bracket - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

11

MTD 757-04003

High Back Seat Black
(Superseded to 757-04003A)

$

$

Not available

12

MTD 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

13

MTD 726-3046

Ratchet Clips

$3.99

$

In Stock, Qty 16

0

14

MTD 735-0672

Foot Pad - RH

$

$

Not available

15

MTD 735-0673

Foot Pad - LH

$

$

Not available

16

MTD 710-0260A

Carriage Bolt, 5/16 x.62

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0599

Self-tapping Screw, 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0726

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-1611B

Self-tapping Screw, 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

20

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

21

MTD 736-0607

Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

22

MTD 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, only 4 left!

0

23

MTD 783-04437A

Fender Style 7

Variations

MTD 783-04437A-0638

FENDER-HYDRO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04437A-0650

FENDER-HYDRO - RED METALLIC (0650)

$

$

Not available

MTD 783-04437A-0665

FENDER-HYDRO - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04437A-0691

FENDER-HYDRO - BLACK JACK (0691)

$

$

Not available

MTD 783-04437A-0716

FENDER-HYDRO - CUB YELLOW-99 (0716)

$

$

Not available

$

$

24

MTD 783-1010A

Deck Life Plate Style 10
(Superseded to 783-1010A-0637)

Variations

MTD 783-1010A-0637

PLATE-DECK LIFT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

25

MTD 783-1489A

Seat Mounting Bracket
(Superseded to 783-1489C)

Variations

MTD 783-1489A-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489A-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

26

MTD 683-04079

Lift Shaft Assembly
(Superseded to 753-06260)

Variations

MTD 683-04079-0637

KIT-SERVICE LIFT S - POWDER BLACK (0637)

$57.99

$

Usually ships in 3-6 days

0

MTD 683-04079-4008

KIT-SERVICE LIFT S - WINE RED (4008)

$57.99

$

Usually ships in 3-6 days

0

$57.99

$

Usually ships in 3-6 days

0

27

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

30

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

31

MTD 716-0106A

E-Ring

$5.49

$

In Stock, only 2 left!

0

32

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

33

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

34

MTD 738-0138A

Hex Cap Screw, 5/16-18 x.62

$6.99

$

Usually ships in 3-6 days

0

35

MTD 738-0380

Shoulder Screw, 3/8-16

$7.99

$

In Stock, only 1 left!

0

36

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

37

MTD 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

38

MTD 747-04155

Lift Handle

$

$

Not available

39

MTD 756-1154

Roller Pulley

$7.99

$

In Stock, only 1 left!

0

40

MTD 783-0678A

Arm Lift
(Superseded to 783-0678C)

Variations

MTD 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

MTD 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

41

MTD 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

42

MTD 725-1439

Spring Switch, Outer

$8.49

$

In Stock, Qty 8

0

43

MTD 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

44

MTD 725-1303

Spring Switch, Inner
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

45

MTD 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 15

0
