14AJ84AH062 - Yard Machines Garden Tractor (1998) (Lowes) Hood Style A Parts Diagram

Garden Tractor

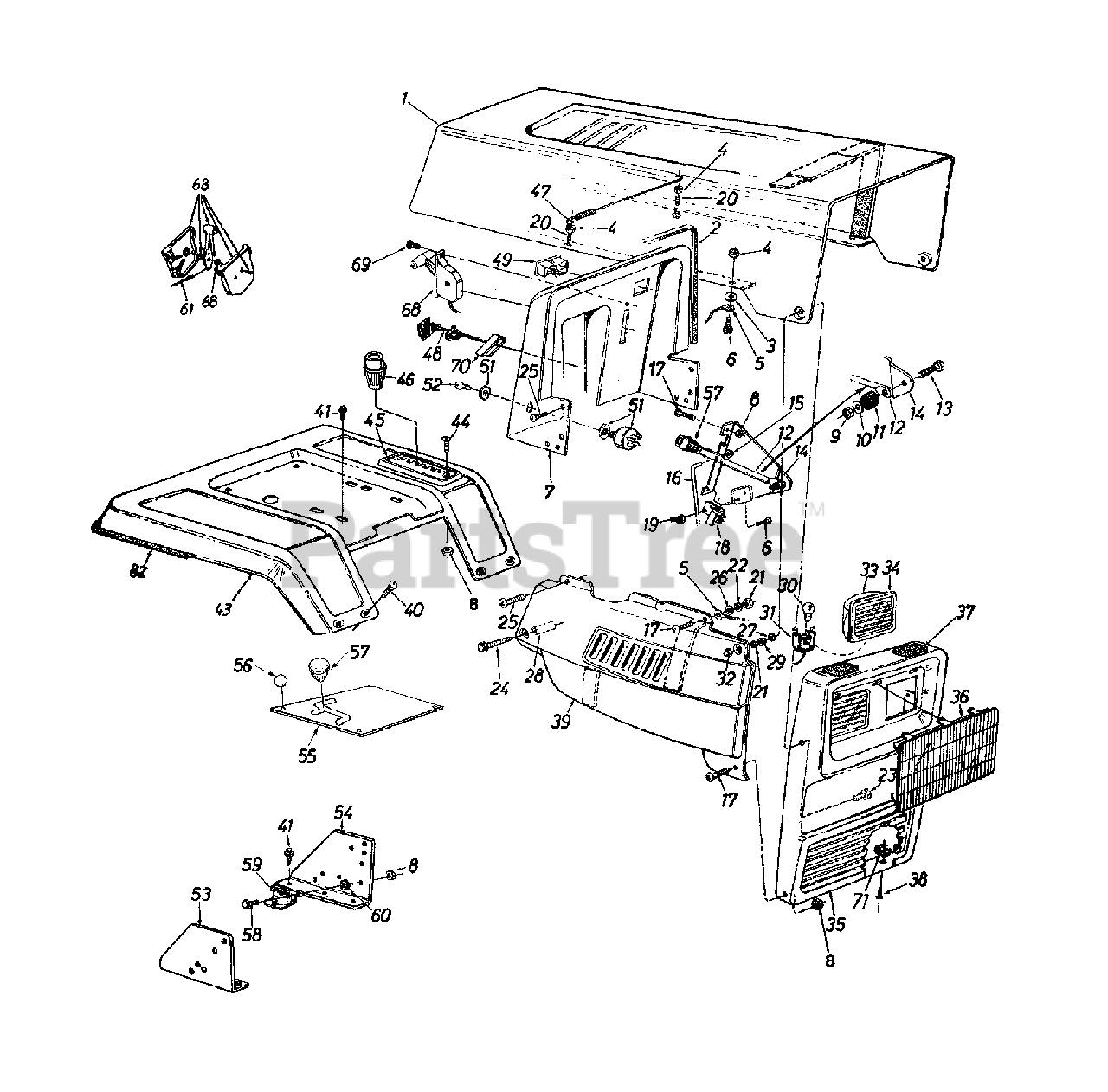

Hood Style A Parts Diagram

  • Title

1

MTD 16787B

Hood

Variations

MTD 16787B-0480

No Longer Available HOOD-W/21 - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16787B-0483

No Longer Available HOOD-W/21 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16787B-0499

No Longer Available HOOD-W/21 - CUB BEIGE (0499)

$

$

Not available

MTD 16787B-0629

No Longer Available HOOD-W/21 - SILVER FLAKE (0629)

$

$

Not available

MTD 16787B-0638

No Longer Available HOOD-W/21 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16787B-0650

No Longer Available HOOD-W/21 - RED METALLIC (0650)

$

$

Not available

MTD 16787B-0660

No Longer Available HOOD-W/21 - TEAL (0660)

$

$

Not available

MTD 16787B-0665

No Longer Available HOOD-W/21 - YARDMAN GREEN (0665)

$

$

Not available

MTD 16787B-0667

No Longer Available HOOD-W/21 - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16787B-0671

No Longer Available HOOD-W/21 - BEAVER GREEN (0671)

$

$

Not available

MTD 16787B-0674

No Longer Available HOOD-W/21 - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16787B-0691

No Longer Available HOOD-W/21 - BLACK JACK (0691)

$

$

Not available

MTD 16787B-0692

No Longer Available HOOD-W/21 - AGWAY BLUE (0692)

$

$

Not available

$

$

2

MTD 731-0511-31

Trim Strip 31" Lg.

$41.99

$

Usually ships in 3-6 days

0

3

MTD 736-3067

Fl-Wash. .188" I.D. x .41" O.D.

$3.49

$

Usually ships in 3-6 days

0

4

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

5

MTD 727-0290A

Hood Stop

$12.99

$

Usually ships in 3-6 days

0

6

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

7

MTD 16550A

Dash Ass'y. w/AMP

Variations

MTD 16550A-0629

No Longer Available PANEL-DASH - SILVER FLAKE (0629)

$

$

Not available

MTD 16550A-0637

No Longer Available PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

MTD 16550A-0638

No Longer Available PANEL-DASH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16550A-0667

No Longer Available PANEL-DASH - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

MTD 17998

Dash w/o AMP

Variations

MTD 17998-0637

No Longer Available DASH ASM - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

9

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

10

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, only 3 left!

0

11

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

12

MTD 747-0513

PTO Lever

$

$

Not available

13

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

14

MTD 783-0371

Deck Clutch Control Brkt.

Variations

MTD 783-0371-0637

No Longer Available BRACKET-CL - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 726-0106

Push Cap

$3.99

$

Usually ships in 3-6 days

0

16

MTD 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

17

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

18

MTD 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

19

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

20

MTD 710-0749

Hex Bolt 10-24 x 1.0" Lg.
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

21

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

22

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.49

$

Usually ships in 3-6 days

0

24

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg.

$6.99

$

In Stock, Qty 13

0

25

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0463

Fl-Wash. .25" I.D. x .62"

$4.49

$

In Stock, only 2 left!

0

27

MTD 736-0413

Spr. Wash. .39" I.D. x .62"

$6.99

$

In Stock, only 2 left!

0

28

MTD 750-0768

Spacer .26" I.D. x .375"

$

$

Not available

29

MTD 738-0759

Shld. Spacer .375" Dia. x .125"Lg.

$

$

Not available

30

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

31

MTD 725-1650

Socket
(Superseded to 925-1650)

$

$

Not available

32

MTD 712-0264

Acorn Nut 1/4-20 Thd.

$3.49

$

Usually ships in 3-6 days

0

33

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

34

MTD 731-0706

Headlight Lens
(Superseded to 931-0706)

Note: Optional Parts

$

$

Not available

35

MTD 15806C

Grille

Variations

MTD 15806C-0499

No Longer Available GRILLE-STY - CUB BEIGE (0499)

$

$

Not available

MTD 15806C-0606

No Longer Available GRILLE-STY - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 15806C-0629

No Longer Available GRILLE-STY - SILVER FLAKE (0629)

$

$

Not available

MTD 15806C-0638

No Longer Available GRILLE-STY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15806C-0662

No Longer Available GRILLE-STY - OYSTER GRAY (0662)

$

$

Not available

MTD 15806C-0665

No Longer Available GRILLE-STY - YARDMAN GREEN (0665)

$

$

Not available

MTD 15806C-0667

No Longer Available GRILLE-STY - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

MTD 16456C

Grille-Used w/Headlight Bezel

Variations

MTD 16456C-0480

No Longer Available GRILLE-STY - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16456C-0483

No Longer Available GRILLE-STY - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16456C-0499

No Longer Available GRILLE-STY - CUB BEIGE (0499)

$

$

Not available

MTD 16456C-0629

No Longer Available GRILLE-STY - SILVER FLAKE (0629)

$

$

Not available

MTD 16456C-0638

No Longer Available GRILLE-STY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16456C-0640

No Longer Available GRILLE-STY - CO-OP GREEN (0640)

$

$

Not available

MTD 16456C-0650

No Longer Available GRILLE-STY - RED METALLIC (0650)

$

$

Not available

MTD 16456C-0660

No Longer Available GRILLE-STY - TEAL (0660)

$

$

Not available

MTD 16456C-0667

No Longer Available GRILLE-STY - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16456C-0677

No Longer Available GRILLE-STY - GRASS GREEN (0677)

$

$

Not available

MTD 16456C-0691

No Longer Available GRILLE-STY - BLACK JACK (0691)

$

$

Not available

MTD 16456C-0692

No Longer Available GRILLE-STY - AGWAY BLUE (0692)

$

$

Not available

$

$

36

MTD 731-0967

Headlight Bezel

Note: Optional Parts

$

$

Not available

37

MTD 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

38

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

39

MTD 16725

Side Panel Ass'y.-R.H.

Variations

MTD 16725-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16725-0483

No Longer Available PANEL-SIDE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16725-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 16725-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 16725-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16725-0640

PANEL-SIDE RH - CO-OP GREEN (0640)

$

$

Not available

MTD 16725-0650

No Longer Available PANEL-SIDE - RED METALLIC (0650)

$

$

Not available

MTD 16725-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

MTD 16725-0665

PANEL-SIDE RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 16725-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16725-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 16725-0671

No Longer Available - BEAVER GREEN (0671)

$

$

Not available

MTD 16725-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16725-0686

No Longer Available PANEL-SIDE - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16725-0688

No Longer Available PANEL-SIDE - SPRING GREEN (0688)

$

$

Not available

MTD 16725-0689

No Longer Available PANEL-SIDE - POLO GREEN (0689)

$

$

Not available

MTD 16725-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

MTD 16725-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

MTD 17309B

Side Panel Ass'y.-L.H.

Note: (Not Shown

Variations

MTD 17309B-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17309B-0483

PANEL-SIDE-LH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17309B-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 17309B-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 17309B-0638

PANEL-SIDE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17309B-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 17309B-0648

No Longer Available PANEL-SIDE - TECH GRAY (0648)

$

$

Not available

MTD 17309B-0650

No Longer Available PANEL-SIDE - RED METALLIC (0650)

$

$

Not available

MTD 17309B-0660

No Longer Available PANEL-SIDE - TEAL (0660)

$

$

Not available

MTD 17309B-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

MTD 17309B-0663

No Longer Available PANEL-SIDE - CAYMEN GREEN (0663)

$

$

Not available

MTD 17309B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17309B-0667

No Longer Available PANEL-SIDE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17309B-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 17309B-0671

No Longer Available PANEL-SIDE - BEAVER GREEN (0671)

$

$

Not available

MTD 17309B-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17309B-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17309B-0687

No Longer Available PANEL-SIDE - PINE GREEN (0687)

$

$

Not available

MTD 17309B-0689

No Longer Available PANEL-SIDE - POLO GREEN (0689)

$

$

Not available

MTD 17309B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17309B-0692

No Longer Available PANEL-SIDE - AGWAY BLUE (0692)

$

$

Not available

$

$

40

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

41

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

?42

MTD 731-0511-81

Trim Strip-81" Lg.

$105.99

$

Usually ships in 3-6 days

0

43

MTD 17426A

Fender

Variations

MTD 17426A-0483

FENDER-RR - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17426A-0499

No Longer Available FENDER-RR - CUB BEIGE (0499)

$

$

Not available

MTD 17426A-0606

No Longer Available FENDER-RR - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 17426A-0629

No Longer Available FENDER-RR - SILVER FLAKE (0629)

$

$

Not available

MTD 17426A-0638

FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17426A-0648

FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17426A-0650

No Longer Available FENDER-RR - RED METALLIC (0650)

$

$

Not available

MTD 17426A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17426A-0665

No Longer Available FENDER-RR - YARDMAN GREEN (0665)

$

$

Not available

MTD 17426A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17426A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17426A-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17426A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17426A-0692

No Longer Available FENDER-RR - AGWAY BLUE (0692)

$

$

Not available

MTD 17426A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

44

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

45

MTD 731-1360

6-Speed Selector Plate (828)
(Superseded to 931-1774)

$31.99

$

Usually ships in 3-6 days

0

MTD 731-1774

7-Speed Selector Plate (848)
(Superseded to 931-1774)

$31.99

$

Usually ships in 3-6 days

0

46

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

47

MTD 732-0462

Hood Spring

$

$

Not available

48

MTD 746-0613A

Choke Control 46" Lg.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

49

MTD 725-0925

Ammeter
(Superseded to 925-0925)

Note: Optional Parts

$31.99

$

Usually ships in 3-6 days

0

51

MTD 725-1717

Ignition Switch
(Superseded to 925-1717)

$52.99

$

In Stock, only 1 left!

0

52

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

53

MTD 17293B

Dash Support Brkt.-R.H.
(Superseded to 17293B-0637)

Variations

MTD 17293B-0637

BRACKET-DASH SUP-R - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 17294B

Dash Support Brkt.-L.H.
(Superseded to 17294B-0637)

Variations

MTD 17294B-0637

BRACKET-DASH SUP-L - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 783-0348

Transmission Cover

Variations

MTD 783-0348-0637

No Longer Available COVER-SHIF - POWDER BLACK (0637)

$

$

Not available

MTD 783-0348-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0348-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0348-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

56

MTD 720-0166

Ball Knob

$

$

Not available

57

MTD 720-0232

Knob-Blade Clutch
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

58

MTD 710-3013

Hex Bolt 1/4-20 x .5" Lg.

$4.99

$

In Stock, only 1 left!

0

59

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

60

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

61

MTD 746-0634

Throttle Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

MTD 746-0630

Throttle Wire 39" Lg.
(Superseded to 946-0630A)

$28.99

$

Usually ships in 3-6 days

0

68

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

69

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

70

MTD 17782

Retainer Clip

$

$

Not available

71

MTD 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

82

MTD 731-0511-81

Trim Strip 81" Lg.

$105.99

$

Usually ships in 3-6 days

0
