14AJ839P131 - Huskee Garden Tractor (1998) (Tractor Supply) Hood Style 9 Parts Diagram

Garden Tractor

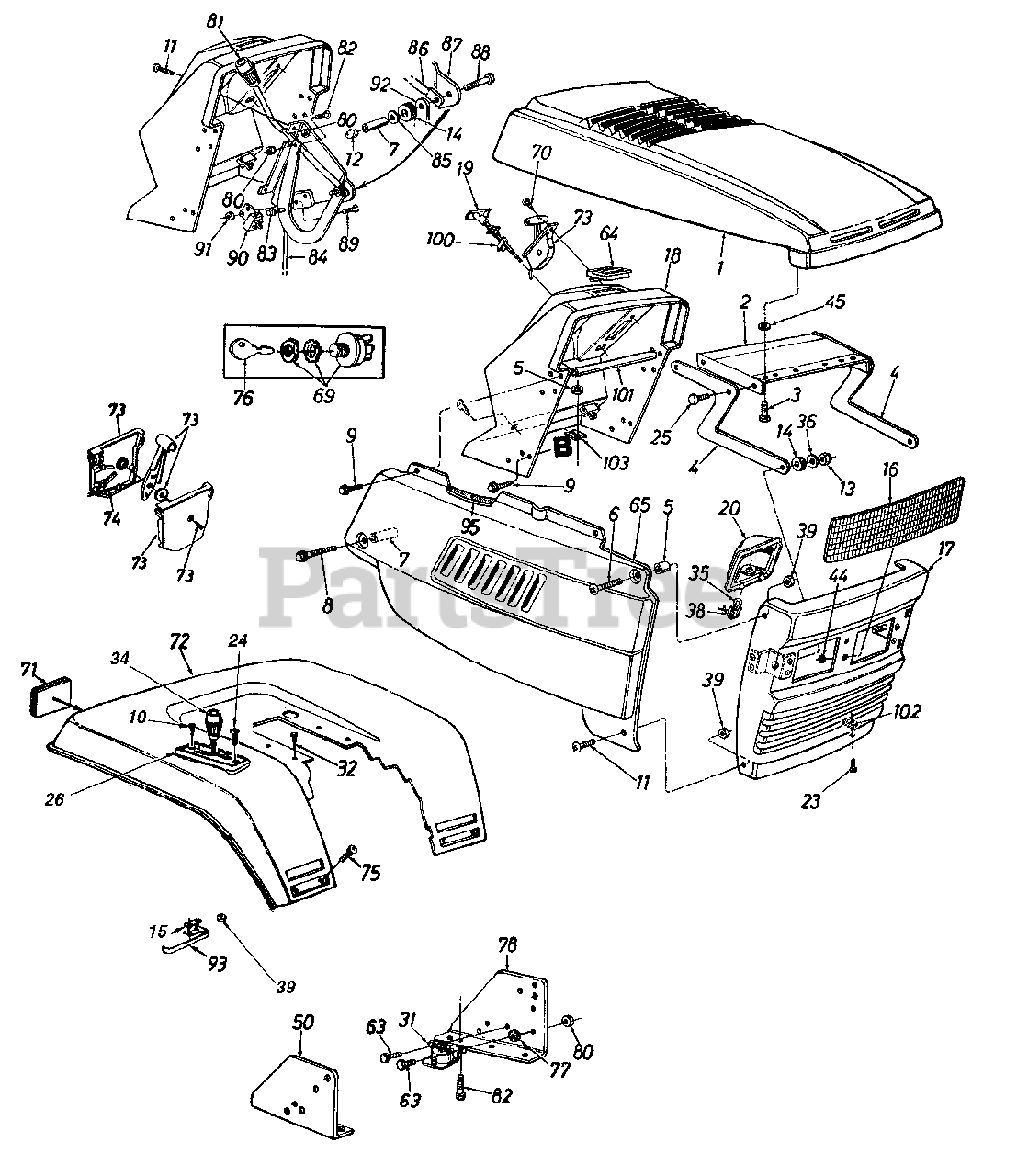

Hood Style 9 Parts Diagram

  • Title

1

MTD 731-1491A

Hood (Red)
(Superseded to 931-1491A)

$

$

Not available

MTD 731-1531A

Hood (Charcoal Gray)

$

$

Not available

2

MTD 16903A

Hood Plate

Variations

MTD 16903A-0637

Hood Plate - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-1005

Hex Wash. Hd. Tap Scr. 1/4 x .5" Lg
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

4

MTD 783-0190

Hood Hinge

Variations

MTD 783-0190-0637

HINGE-HOOD - POWDER BLACK (0637)

$

$

Not available

MTD 783-0190-0638

HINGE-HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0190-0662

HINGE-HOOD - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0190-0665

HINGE-HOOD - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0190-0667

HINGE-HOOD - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

5

MTD 750-0768

Spacer .34" I.D. x .437"

$

$

Not available

6

MTD 710-0166

Truss Hd. Mach. Scr. 1/4-20 Thd.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

7

MTD 750-0583

Spacer .26" I.D. x .375"

$

$

Not available

8

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg

$6.99

$

In Stock, Qty 13

0

9

MTD 710-0642

Hex T-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr.

$4.49

$

In Stock, Qty 15

0

11

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

12

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

13

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

14

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

15

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

16

MTD 731-1044

Headlight Lens
(Superseded to 931-1044)

$

$

Not available

17

MTD 17410A

Grille Ass'y.

Variations

MTD 17410A-0629

No Longer Available GRILLE ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 17410A-0638

No Longer Available GRILLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17410A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17410A-0671

No Longer Available GRILLE ASM - BEAVER GREEN (0671)

$

$

Not available

MTD 17410A-0691

No Longer Available GRILLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

18

MTD 731-1680

Dash Ass'y.

$

$

Not available

19

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

20

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

23

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg

$4.49

$

In Stock, Qty 20+

0

25

MTD 710-0599

Hex Wash. Hd. Scr. 1/4" x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 731-1734

Selector Plate
(Superseded to 931-1734)

$

$

Not available

31

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

32

MTD 710-0726

Hex Hd. Rolling Scr. 5/16-24 x .75"

$4.49

$

In Stock, Qty 20+

0

34

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

35

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

36

MTD 736-0242

Bell-Wash. .34" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

38

MTD 725-1650

Socket
(Superseded to 925-1650)

$

$

Not available

39

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

?40

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

44

MTD 726-0201

Speed Nut 5/16" I.D.

$6.99

$

Usually ships in 3-6 days

0

45

MTD 736-3010

Fl-Wash. .406" I.D.

$4.99

$

In Stock, only 2 left!

0

50

MTD 17293B

Dash Support Brkt.-R.H.
(Superseded to 17293B-0637)

Variations

MTD 17293B-0637

BRACKET-DASH SUP-R - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 710-3013

Hex Bolt 1/4-20 x .5" Lg.

$4.99

$

In Stock, only 1 left!

0

64

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

65

MTD 16725

Side Panel Ass'y.-R.H.

Variations

MTD 16725-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16725-0483

No Longer Available PANEL-SIDE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16725-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 16725-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 16725-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16725-0640

PANEL-SIDE RH - CO-OP GREEN (0640)

$

$

Not available

MTD 16725-0650

No Longer Available PANEL-SIDE - RED METALLIC (0650)

$

$

Not available

MTD 16725-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

MTD 16725-0665

PANEL-SIDE RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 16725-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 16725-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 16725-0671

No Longer Available - BEAVER GREEN (0671)

$

$

Not available

MTD 16725-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 16725-0686

No Longer Available PANEL-SIDE - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 16725-0688

No Longer Available PANEL-SIDE - SPRING GREEN (0688)

$

$

Not available

MTD 16725-0689

No Longer Available PANEL-SIDE - POLO GREEN (0689)

$

$

Not available

MTD 16725-0691

PANEL-SIDE RH - BLACK JACK (0691)

$

$

Not available

MTD 16725-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

MTD 17309B

Side Panel Ass'y.-L.H.

Variations

MTD 17309B-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17309B-0483

PANEL-SIDE-LH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17309B-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 17309B-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 17309B-0638

PANEL-SIDE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17309B-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 17309B-0648

No Longer Available PANEL-SIDE - TECH GRAY (0648)

$

$

Not available

MTD 17309B-0650

No Longer Available PANEL-SIDE - RED METALLIC (0650)

$

$

Not available

MTD 17309B-0660

No Longer Available PANEL-SIDE - TEAL (0660)

$

$

Not available

MTD 17309B-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

MTD 17309B-0663

No Longer Available PANEL-SIDE - CAYMEN GREEN (0663)

$

$

Not available

MTD 17309B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17309B-0667

No Longer Available PANEL-SIDE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17309B-0668

No Longer Available PANEL-SIDE - MOSS GREEN (0668)

$

$

Not available

MTD 17309B-0671

No Longer Available PANEL-SIDE - BEAVER GREEN (0671)

$

$

Not available

MTD 17309B-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17309B-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17309B-0687

No Longer Available PANEL-SIDE - PINE GREEN (0687)

$

$

Not available

MTD 17309B-0689

No Longer Available PANEL-SIDE - POLO GREEN (0689)

$

$

Not available

MTD 17309B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17309B-0692

No Longer Available PANEL-SIDE - AGWAY BLUE (0692)

$

$

Not available

$

$

69

MTD 725-1717

Ignition Switch
(Superseded to 925-1717)

$52.99

$

In Stock, only 1 left!

0

70

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

71

MTD 730-3000

Reflector (Optional)
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

72

MTD 783-0466

Rear Fender

Variations

MTD 783-0466-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0466-0665

No Longer Available FENDER-SEN - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0466-0691

No Longer Available FENDER-SEN - BLACK JACK (0691)

$

$

Not available

$

$

73

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

74

MTD 746-0634

Throttle Control Wire 35" Lg.
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

MTD 746-0630

Throttle Control Wire 39" Lg.
(Superseded to 946-0630A)

$28.99

$

Usually ships in 3-6 days

0

75

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

76

MTD 725-0201

Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

77

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

78

MTD 17294B

Dash Support Brkt.-L.H.
(Superseded to 17294B-0637)

Variations

MTD 17294B-0637

BRACKET-DASH SUP-L - POWDER BLACK (0637)

$

$

Not available

$

$

80

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

81

UNKNOWN

$

$

Not available

82

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

83

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

84

MTD 16985

PTO Rod

$

$

Not available

85

MTD 736-0173

Fl-Wash. .281" I.D. x .73"

$4.49

$

In Stock, only 1 left!

0

86

MTD 16984

PTO Lever

$

$

Not available

87

MTD 783-0460

Deck Clutch Control Brkt.

Variations

MTD 783-0460-0637

No Longer Available BRACKET. CONTROL CLUT - POWDER BLACK (0637)

$

$

Not available

$

$

88

MTD 710-0102

Hex Bolt 1/4-20 x 2.5" Lg.
(Superseded to 710-1122)

$7.49

$

Usually ships in 3-6 days

0

89

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

90

MTD 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

91

MTD 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

92

MTD 16983

PTO Bracket

$

$

Not available

93

MTD 725-1713

Reverse Safety Switch

$12.99

$

Usually ships in 3-6 days

0

95

MTD 731-0511-12

Trim Strip 12" Lg.

$22.99

$

Usually ships in 3-6 days

0

100

MTD 17782

Retainer Clip

$

$

Not available

101

MTD 749-0814

Dash Support Tube

$

$

Not available

102

MTD 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

103

MTD 783-0013

Dash Panel Fastening Tab

$

$

Not available

?104

MTD 777-8568A

Chome Label

$

$

Not available
