14AI848H205 - Ranch King Garden Tractor (2002) Lift Assembly, Gas Tank, Muffler Parts Diagram

Garden Tractor

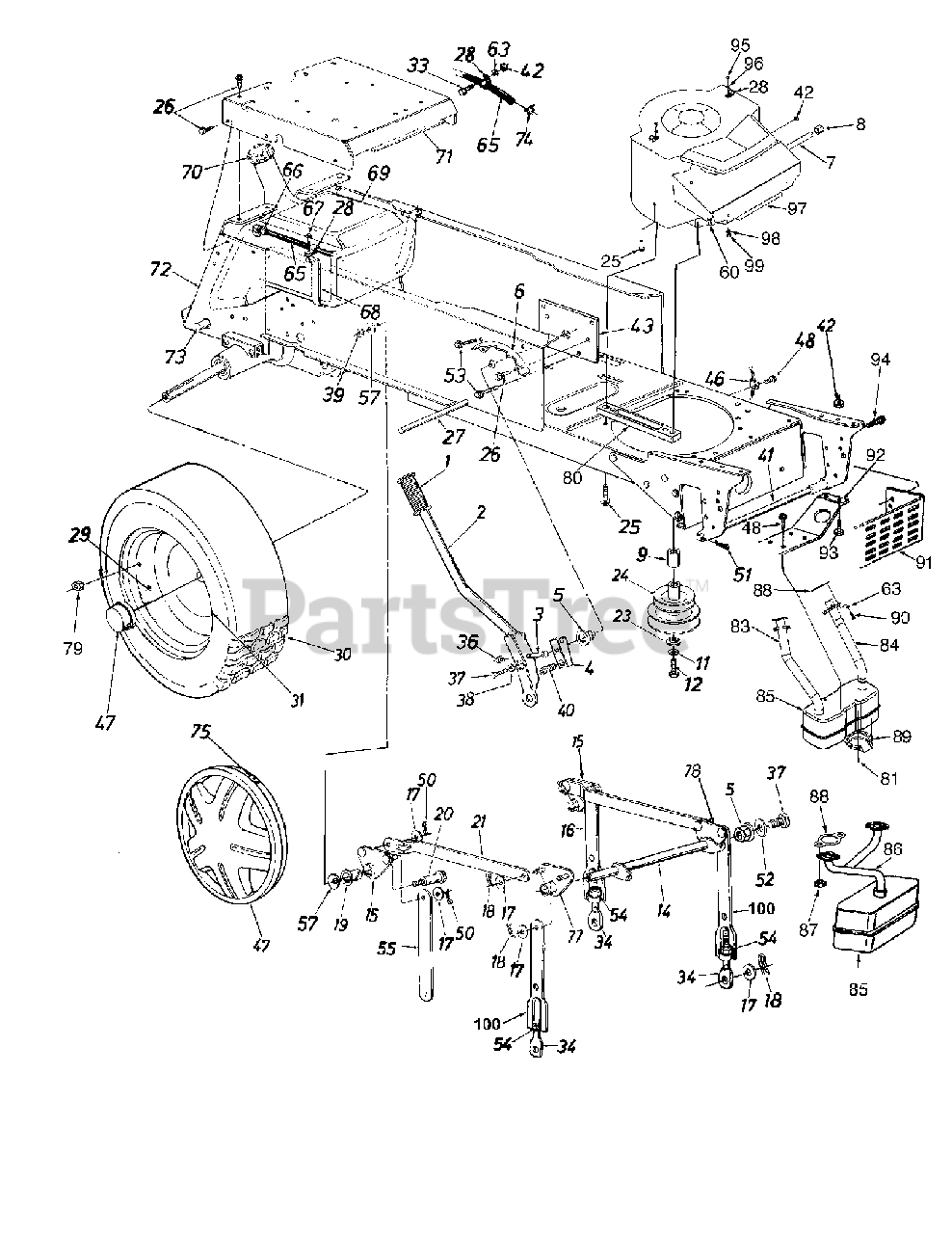

Lift Assembly, Gas Tank, Muffler Parts Diagram

  • Title

1

MTD 720-0233

Grip
(Superseded to 920-0233)

$

$

Not available

2

MTD 97282

Lift Handle Assembly

Variations

MTD 97282-0637

No Longer Available HANDLE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0805

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

Note: Purchase Locally

$4.49

$

In Stock, Qty 20+

0

4

MTD 748-0274A

Lift Shaft Drive

$

$

Not available

5

MTD 741-0225

Plastic Hex Brg. 5/8" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

6

MTD 14231

Index Brkt. Deck Lift
(Superseded to 14231-0637)

Variations

MTD 14231-0637

Index Deck Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 737-0164

Pipe Nipple 3/8-18 Npt.
(Superseded to 937-0164)

Note: Used on Briggs and Stratton Engines

$

$

Not available

MTD 737-0286

Pipe Nipple 3/8-18 x 3.8"

Note: Used on Kohler Engine

$

$

Not available

8

MTD 737-0143

Pipe Cap 3/8-18 Npt.

Note: Used on Briggs and Stratton Engines

$

$

Not available

MTD 751-0572

Hex Soc. Pipe 1/4-18 x 7/8

Note: Used on Kohler Engine

$

$

Not available

9

MTD 750-0956

Spacer

$19.99

$

In Stock, only 2 left!

0

11

MTD 736-0171

L-Washer 7/16" I.D.

$4.49

$

In Stock, only 4 left!

0

12

MTD 710-1002

Hex Scr. 7/16-20 x 2"

$6.99

$

Usually ships in 3-6 days

0

14

MTD 983-0101

Lift Shaft Assembly

$

$

Not available

15

MTD 13895

Lift Pivot Brkt. Assembly

$

$

Not available

16

MTD 17305

Deck Lift Link: Rear

$

$

Currently unavailable

17

MTD 736-0192

Flat Washer

$4.49

$

In Stock, Qty 18

0

18

MTD 714-0101

Hairpin Cotter

$4.99

$

In Stock, only 2 left!

0

19

MTD 741-0295

Nyliner 5/8" I.D. x .88"
(Superseded to 941-0591)

$

$

Not available

20

MTD 738-0445

Shld. Bolt
(Superseded to 938-0445A)

$

$

Not available

21

MTD 13790

Connecting Link
(Superseded to 13790-0637)

Variations

MTD 13790-0637

LINK-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 736-0322

Flat Washer

$9.49

$

In Stock, Qty 7

0

24

MTD 756-0989

Engine Pulley

$156.99

$

In Stock, only 1 left!

0

25

MTD 710-0502A

Hx Wsh Hd. Scr. 3/8-16 x 1.25"

Note: Used on Briggs and Stratton Engines

$6.99

$

In Stock, only 2 left!

0

MTD 710-1007

Hex TT-Tap Scr. 3/8-16 x 1.5"

Note: Used on Kohler Engine

$6.49

$

In Stock, only 1 left!

0

26

MTD 710-0726

Hx Roll Scr. 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

27

MTD 738-0435

Running Board Rod

$

$

Not available

28

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

29

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

30

Rear Wheel Assembly Comp.

Note: See "Wheels Rear" illustration and parts list

$

$

Not available

Tire Only

Note: See "Wheels Rear" illustration and parts list

$

$

Not available

31

Rear Wheel Rim Only

Note: See "Wheels Rear" illustration and parts list

$

$

Not available

?32

MTD 736-0345

Flat Washer
(Superseded to 936-0345)

$4.49

$

In Stock, Qty 12

0

33

MTD 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

34

MTD 711-0817

Eye Bolt Adj. Link 1/2-13 Thd.
(Superseded to 911-0817)

$14.99

$

In Stock, only 4 left!

0

36

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

MTD 710-0237

Hex Bolt 5/16-24 x .62"

Note: Purchase Locally

$4.49

$

In Stock, only 1 left!

0

38

MTD 736-0119

L-Washer 5/16" I.D.
(Superseded to 936-0119)

Note: Purchase Locally

$4.99

$

In Stock, Qty 20+

0

39

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

MTD 732-0369

Compression Spring
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

41

MTD 738-0777A

Deck Connecting Rod

$37.99

$

Usually ships in 3-6 days

0

42

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

Note: Purchase Locally

$4.49

$

In Stock, Qty 20+

0

43

MTD 14170

Index Brkt. Reinf. Plate
(Superseded to 14170-0637)

Variations

MTD 14170-0637

PLATE-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 726-0273

Mounting Clamp

$7.49

$

In Stock, only 1 left!

0

47

MTD 731-0556

Hub Cap

$4.99

$

In Stock, only 4 left!

0

MTD 734-1617A

Spoked Hub Cap (Gray)

$

$

Not available

MTD 734-1616A

Spoked Hub Cap (Beige)

$

$

Currently unavailable

MTD 734-1789A

Spoked Hub Cap (Yellow)

$

$

Not available

48

MTD 710-0599

TT-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

50

MTD 714-0111

Cotter Pin .09 Dia. x 1.0"

$4.99

$

In Stock, Qty 13

0

51

MTD 714-0149B

Int. Cotter Pin

$4.49

$

In Stock, Qty 18

0

52

MTD 736-0231

Flat Washer

$4.99

$

In Stock, Qty 20+

0

53

MTD 710-0600

AB-Tap Scr 5/16-24 x .5"

$3.49

$

Usually ships in 3-6 days

0

54

MTD 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

55

MTD 14399

Deck Link
(Superseded to 14399-0637)

Variations

MTD 14399-0637

Deck Link - POWDER BLACK (0637)

$17.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

?56

MTD 736-0264

Flat Washer

$6.99

$

In Stock, only 1 left!

0

57

MTD 736-0219

Bell Washer .4" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

60

MTD 710-3008

Hex Bolt 5/16-18 x .75"

Note: Purchase Locally

$4.49

$

In Stock, Qty 20+

0

63

MTD 736-0329

L-Washer 1/4" I.D.
(Superseded to 936-0329)

Note: Purchase Locally

$4.49

$

In Stock, Qty 11

0

65

MTD 751-0535-46

Fuel Line 46"
(Superseded to 751-10349-54)

$53.99

$

Usually ships in 3-6 days

0

66

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

67

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

68

MTD 17424

Fuel Tank Strap

$

$

Not available

69

MTD 751-0566

Gas Tank

$

$

Not available

70

MTD 751-0531B

Gas Gauge

$83.99

$

In Stock, Qty 5

0

71

MTD 683-0108A

Seat Plate
(Superseded to 983-0108A-0637)

$

$

Not available

72

MTD 783-0419

Hitch Plate
(Superseded to 783-0631)

Variations

MTD 783-0419-0629

PLATE-HITCH - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0419-0637

PLATE-HITCH - POWDER BLACK (0637)

$

$

Not available

MTD 783-0419-0638

PLATE-HITCH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0419-0665

PLATE-HITCH - YARDMAN GREEN (0665)

$

$

Not available

$

$

73

MTD 738-0482

Hitch Rod

$

$

Not available

74

MTD 726-0272

Hose Clamp

$7.49

$

Usually ships in 3-6 days

0

75

MTD 727-0425A

Spring Clip
(Superseded to 927-0425A)

Note: (Optional)

$

$

Not available

77

MTD 683-0098

Pivot Brkt. Assembly RH

$

$

Not available

78

MTD 683-0097

Pivot Brkt. Assembly LH

$

$

Not available

79

MTD 712-3050

Lug Nut 7/16-14 Thd.

$9.99

$

In Stock, Qty 5

0

80

MTD 783-0279

Engine Mounting Spacer

Note: Used on Kohler Engine

$

$

Not available

81

MTD 710-0148

F-Tap Scr. #8-32 x .38"

Note: Used on Briggs and Stratton Engines

$4.49

$

In Stock, Qty 16

0

?82

MTD 710-0604A

TT-Tap Scr 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

83

MTD 751-0624

Exhaust Tube RH

Note: Used on Briggs and Stratton Engines

$

$

Not available

84

MTD 751-0623

Exhaust Tube LH

Note: Used on Briggs and Stratton Engines

$

$

Not available

85

MTD 751-0616

Muffler
(Superseded to 951-0616B)

Note: Used on Briggs and Stratton Engines

$163.99

$

In Stock, Qty 16

0

MTD 751-0617

Muffler
(Superseded to 951-0617C)

Note: Used on Kohler Engine

$149.99

$

In Stock, Qty 5

0

86

MTD 751-0608

Exhaust Pipe

Note: Used on Kohler Engine

$

$

Not available

87

MTD 712-3086

Flange Nut M8 x 1.25 Thd.

Note: Used on Kohler Engine

$4.49

$

In Stock, only 2 left!

0

88

MTD 721-0346

Exhaust Gasket

Note: Used on Briggs and Stratton Engines

$8.49

$

Usually ships in 3-6 days

0

MTD 721-0377

Exhaust Gasket
(Superseded to KH-24-041-49-S)

Note: Used on Kohler Engine

$

$

Not available

89

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

Note: Used on Briggs and Stratton Engines

$13.99

$

In Stock, only 4 left!

0

90

MTD 710-3015

Hex Bolt 1/4-20 x .75"

Note: Used on Briggs and Stratton Engines

$3.99

$

In Stock, Qty 20+

0

91

MTD 783-0023A

Heat Shield
(Superseded to 783-0023A-0637)

Variations

MTD 783-0023A-0637

SHEILD-HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

92

MTD 17958

Muffler Mounting Brkt.

$

$

Not available

93

MTD 710-0751

Hex Bolt 1/4-20 x .62"

$3.99

$

In Stock, Qty 20+

0

94

MTD 710-0604

Hex TT-Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

95

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5"

Note: Used on Briggs and Stratton Engines

$4.49

$

Usually ships in 3-6 days

0

96

MTD 736-3067

Flat Washer .188" I.D. x .438" O.D.

$3.49

$

Usually ships in 3-6 days

0

97

MTD 783-0452

Front Heat Shield

Note: Used on Briggs and Stratton Engines

Variations

MTD 783-0452-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

98

MTD 736-0119

L-Washer 5/16" I.D.
(Superseded to 936-0119)

Note: Purchase Locally; Used on Briggs and Stratton Engines

$4.99

$

In Stock, Qty 20+

0

99

MTD 712-3010

Hex Nut 5/16-18 Thd.

Note: Used on Briggs and Stratton Engines

$4.49

$

In Stock, Qty 20+

0

100

MTD 17304

Front Deck-Link Lift Ass'y

Note: (Incl. Ref. 16, 34 & 54)

$40.99

$

Usually ships in 3-6 days

0
