14AI845H372 - Yard Machines Garden Tractor (1999) (Hechinger) Axle Front, Wheel Front And Steering Assembly Parts Diagram

Garden Tractor

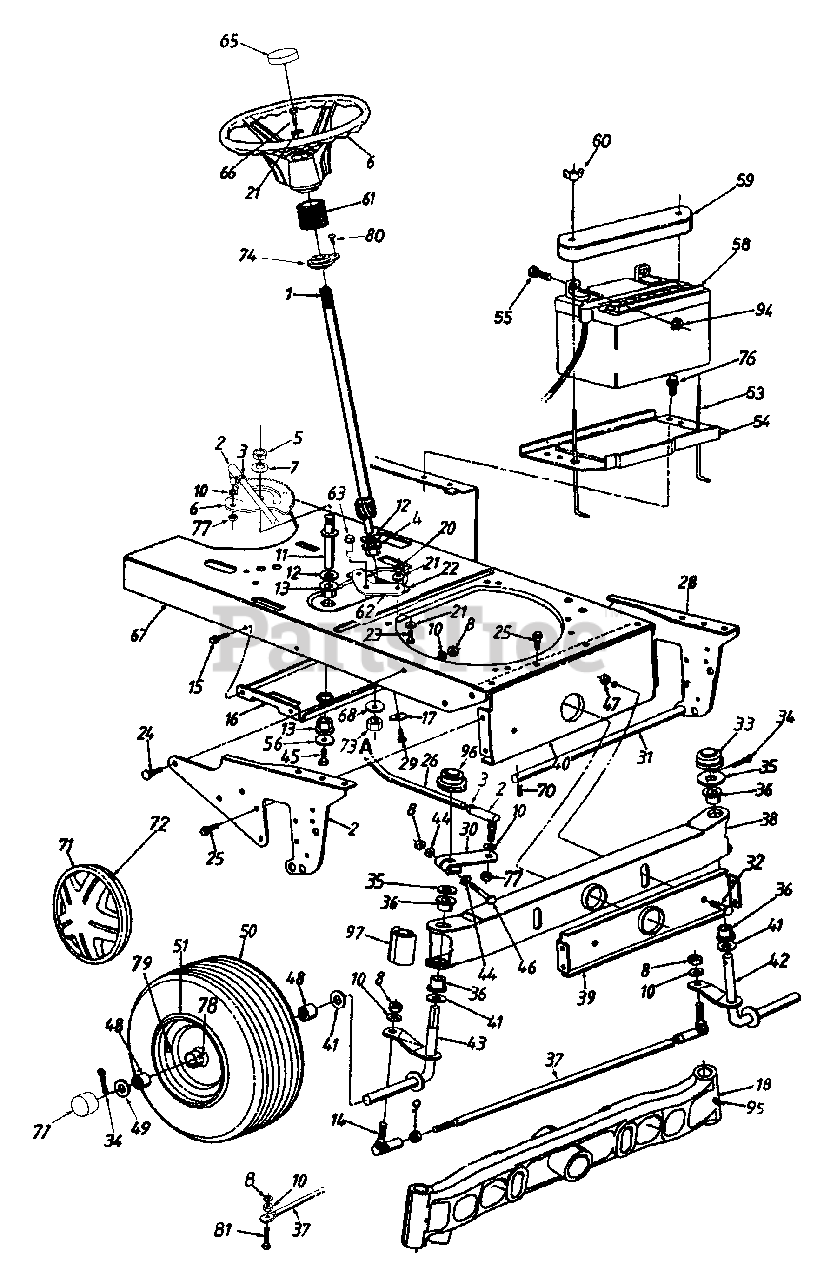

Axle Front, Wheel Front And Steering Assembly Parts Diagram

  • Title

1

MTD 738-0963

Steering Shaft Ass'y.
(Superseded to 938-0963)

$83.99

$

In Stock, Qty 5

0

2

MTD 723-0448A

Ball Joint 7/16-20 Thd.
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

3

MTD 712-0240

Hex Jam Nut 7/16-20 Thd.
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

4

MTD 741-0656

Hex Flange Brg.
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

5

MTD 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

6

MTD 717-0943C

Steering Gear Segment

$89.99

$

In Stock, only 4 left!

0

7

MTD 736-0317

Bell-Wash. 5/8" I.D. x 1.25" O.D.

$7.99

$

In Stock, Qty 20+

0

8

MTD 712-3054

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

MTD 738-0768

Steering Gear Segment Shaft

$

$

Not available

12

MTD 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

13

MTD 748-0227A

Hex Flange Brg. .63" I.D.
(Superseded to 948-0227A)

$8.49

$

In Stock, Qty 12

0

14

MTD 723-3018

Ball Joint Ass'y.
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

15

MTD 710-0599

Hx Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

16

MTD 16888A

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

Variations

MTD 16888A-0637

Idler Support Bracket - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

17

MTD 748-0389

Cap
(Superseded to 948-0389)

$5.49

$

In Stock, Qty 20+

0

18

MTD 719-0343A

Pivot Bar Ass'y. (Cast Iron)
(Superseded to 719-0343B)

$

$

Not available

?19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

21

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

22

MTD 16894

Bearing Retainer Brkt.

Variations

MTD 16894-0637

No Longer Available BRACKET-BE - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

24

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .8" Lg.

$

$

Not available

25

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

26

MTD 711-1106A

Steering Drag Link

$59.99

$

In Stock, only 2 left!

0

?27

MTD 783-0338

Pivot Bar Side Plate - R.H.

Variations

MTD 783-0338-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0338-0637

No Longer Available BRACKET-PIVOT SUP - POWDER BLACK (0637)

$

$

Not available

MTD 783-0338-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0338-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0338-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0338-0662

No Longer Available BRACKET-PI - OYSTER GRAY (0662)

$

$

Not available

$

$

28

MTD 783-0337

Pivot Bar Side Plate - L.H.

Variations

MTD 783-0337-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0337-0629

BRACKET-PIVOT SUP - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0337-0637

BRACKET-PIVOT SUP - POWDER BLACK (0637)

$

$

Not available

MTD 783-0337-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0337-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0337-0662

No Longer Available BRACKET-PI - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0337-0665

No Longer Available BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

MTD 710-1309

Pan Hd. Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

30

MTD 983-0061A

Steering Arm Ass'y.
(Superseded to 983-0061A-0637)

Variations

MTD 983-0061A-0637

Steering Arm Assembly, Black - POWDER BLACK (0637)

$40.99

$

In Stock, only 1 left!

0

$40.99

$

In Stock, only 1 left!

0

31

MTD 738-0777A

Deck Connecting Rod

$37.99

$

Usually ships in 3-6 days

0

32

MTD 738-0527

Shld. Bolt .498" Dia. x 2.45" Lg.

$8.49

$

In Stock, Qty 6

0

33

MTD 731-0484A

Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

34

MTD 714-0121

Cotter Pin 5/32" Dia.
(Superseded to 914-0121)

$

$

Not available

35

MTD 736-0316

Flat Washer

$4.49

$

In Stock, Qty 20+

0

36

MTD 741-0660

Flange Brg. .757" I.D.
(Superseded to 741-0660A)

$3.49

$

In Stock, Qty 20+

0

37

MTD 747-0753

Tie Rod (Adjustable)

$34.99

$

In Stock, only 1 left!

0

MTD 747-0861

Tie Rod (Non-Adjustable)
(Superseded to 747-0861-0637)

Variations

MTD 747-0861-0637

Non-Adjustment Tie Rod, Black - POWDER BLACK (0637)

$30.99

$

In Stock, Qty 5

0

$30.99

$

In Stock, Qty 5

0

38

MTD 683-0128A

Pivot Bar Ass'y. (Steel)
(Superseded to 683-0128B)

Variations

MTD 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$97.99

$

In Stock, only 2 left!

0

$90.99

$

Usually ships in 3-6 days

0

39

MTD 16889A

Pivot Bar Support Brkt. - Front
(Superseded to 16889A-0637)

Variations

MTD 16889A-0637

Pivot Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 16890A

Pivot Bar Support Brkt. - Rear
(Superseded to 16890A-0637)

Variations

MTD 16890A-0637

Pivot Support Bracket - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

41

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

42

MTD 638-0007A

Front Axle Ass'y. - L.H.

$

$

Not available

43

MTD 638-0008A

Front Axle Ass'y. - R.H.
(Superseded to 938-0008A)

$202.99

$

Usually ships in 3-6 days

0

44

MTD 736-0267

Flat Washer

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0538

Hex L-Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 9

0

46

MTD 710-1257

Hex Bolt 3/8-24 x 2.50" Lg.

$7.99

$

In Stock, only 1 left!

0

47

MTD 712-0431

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

48

MTD 741-0516

Flange Brg. .75" I.D.
(Superseded to 741-0516B)

$6.49

$

In Stock, Qty 20+

0

49

MTD 736-0316

Fl-Wash. .71" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

50

MTD 734-1500A

Wheel Ass'y. Comp.

Note: 16" x 6.5" Round Shoulder

Variations

MTD 734-1500A-0911

Wheel Ass'y. Comp. - Carlisle Gray (0911)

$

$

Not available

MTD 734-1500A-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 734-1500A-0915

No Longer Available - Duro Gray (0915)

$

$

Not available

MTD 734-1500A-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 734-1500A-0942

No Longer Available WHL ASM 1 - Dico Yellow (0942)

$

$

Not available

MTD 734-1500A-0981

No Longer Available WHEEL ASM - Carlisle Green (0981)

$

$

Not available

$

$

50

MTD 634-0084

Wheel Ass'y. Comp.

Note: 16" x 6.5" Square Shoulder

Variations

MTD 634-0084-0911

No Longer Available WHEEL ASSY 16 X 6:50 - Carlisle Gray (0911)

$

$

Not available

MTD 634-0084-0912

No Longer Available WHEEL ASM - Dico Gray (0912)

$

$

Not available

MTD 634-0084-0931

WHEEL ASSY W/TIRE - Carlisle Beige (0931)

$

$

Not available

MTD 634-0084-0941

No Longer Available 0911 WHL - Carlisle Yellow (0941)

$

$

Not available

MTD 634-0084-0942

No Longer Available - Dico Yellow (0942)

$

$

Not available

MTD 634-0084-0981

No Longer Available WHLASSY16 - Carlisle Green (0981)

$

$

Not available

$

$

MTD 741-0516

Bearing
(Superseded to 741-0516B)

Note: 16" x 16.5" Round and Square Shoulder

$6.49

$

In Stock, Qty 20+

0

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: 16" x 16.5" Round and Square Shoulder

$4.49

$

In Stock, Qty 20+

0

MTD 737-0280

Grease Fitting

Note: 16" x 16.5" Round and Square Shoulder

$7.99

$

In Stock, Qty 8

0

MTD 734-0275

Tire Only

Note: 16" x 6.5" Round Shoulder

Variations

MTD 734-0275-0901

TIRE-16X6.5 - Carlisle (0901)

$

$

Not available

MTD 734-0275-0905

TIRE-16X6.5 - Duro (0905)

$

$

Not available

MTD 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

MTD 734-1727

Tire Only

Note: 16" x 6.5" Square Shoulder

$56.99

$

Usually ships in 3-6 days

0

51

MTD 634-0067

Rim Only
(Superseded to 934-0067)

Note: 16" x 16.5" Round and Square Shoulder

Variations

MTD 634-0067-0499

No Longer Available RIM - CUB BEIGE (0499)

$

$

Not available

MTD 634-0067-0629

RIM - SILVER FLAKE (0629)

$

$

Not available

MTD 634-0067-0662

RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0067-0674

RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

53

MTD 711-0222A

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

54

MTD 783-0346A

Battery Plate

Variations

MTD 783-0346A-0637

Battery Plate - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 710-3015

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

56

MTD 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 7

0

58

MTD 725-1706

Battery
(Superseded to 925-1707D)

$

$

Not available

59

MTD 731-1683

Battery Cover

$

$

Not available

60

MTD 712-3087

Wing Nut Plastic 1/4-20 Thd.

$3.99

$

In Stock, Qty 20+

0

61

MTD 731-0954

Steering Bellow (Style 0, 3, 5, 9)
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

MTD 731-0559A

Steering Bellow (Style A)
(Superseded to 731-0559B)

$

$

Not available

62

MTD 783-0465

Steering Brace
(Superseded to 783-0465-0637)

Variations

MTD 783-0465-0637

Steering Brace, Black - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 738-0966

Shld. Bolt .5" Dia. x .925" Lg.
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

?64

MTD 631-0027

Steering Wheel (4 Spoke)
(Superseded to 931-0027A)

$97.99

$

Usually ships in 3-6 days

0

MTD 731-1687

Steering Wheel (3 Spoke)
(Superseded to 931-1687)

$53.99

$

Usually ships in 3-6 days

0

65

MTD 731-0220

Steering Cap (Round)
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

MTD 731-1459A

Steering Wheel Cap (Square)

$8.49

$

Usually ships in 3-6 days

0

66

MTD 710-0643

Hex L-Bolt 5/16-18 x 1" Lg.

$6.99

$

In Stock, Qty 5

0

67

MTD 17359C

Lower Frame

Variations

MTD 17359C-0637

No Longer Available FRAME-LOWE - POWDER BLACK (0637)

$

$

Not available

MTD 17359C-0648

No Longer Available FRAME-LOWE - TECH GRAY (0648)

$

$

Not available

MTD 17359C-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

68

MTD 736-0452

Bell-Wash. .396" I.D. x 1.14" O.D.

$4.99

$

In Stock, Qty 5

0

70

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

71

MTD 734-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

MTD 734-1615A

Hub Cap (Gray)

Note: (Opt.)

$32.99

$

Usually ships in 3-6 days

0

MTD 734-1614A

Hub Cap (Beige)

Note: (Opt.)

$

$

Not available

MTD 734-1788A

Hub Cap (Yellow)
(Superseded to 934-1788A)

Note: (Opt.)

$34.99

$

Usually ships in 3-6 days

0

72

MTD 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

73

MTD 712-3017

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 20+

0

74

MTD 741-0587

Flange Bearing (Style A)

$4.49

$

In Stock, Qty 10

0

76

MTD 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

77

MTD 712-0262

Hex Jam L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

78

MTD 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

79

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

80

MTD 710-0837

Oval Hd. Cr. - Sunk Scr. #10 x 5/8" Lg. (Style A)

$4.49

$

In Stock, Qty 5

0

81

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

94

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

95

MTD 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

96

MTD 726-0341

Cap

$4.99

$

In Stock, Qty 20+

0

97

MTD 731-1291A

End Cap w/Fitting
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 11

0
