14AI845H352 - Yard Machines Garden Tractor (2002) (Walmart) Axle & Wheels Front, Steering, Battery Parts Diagram

Garden Tractor

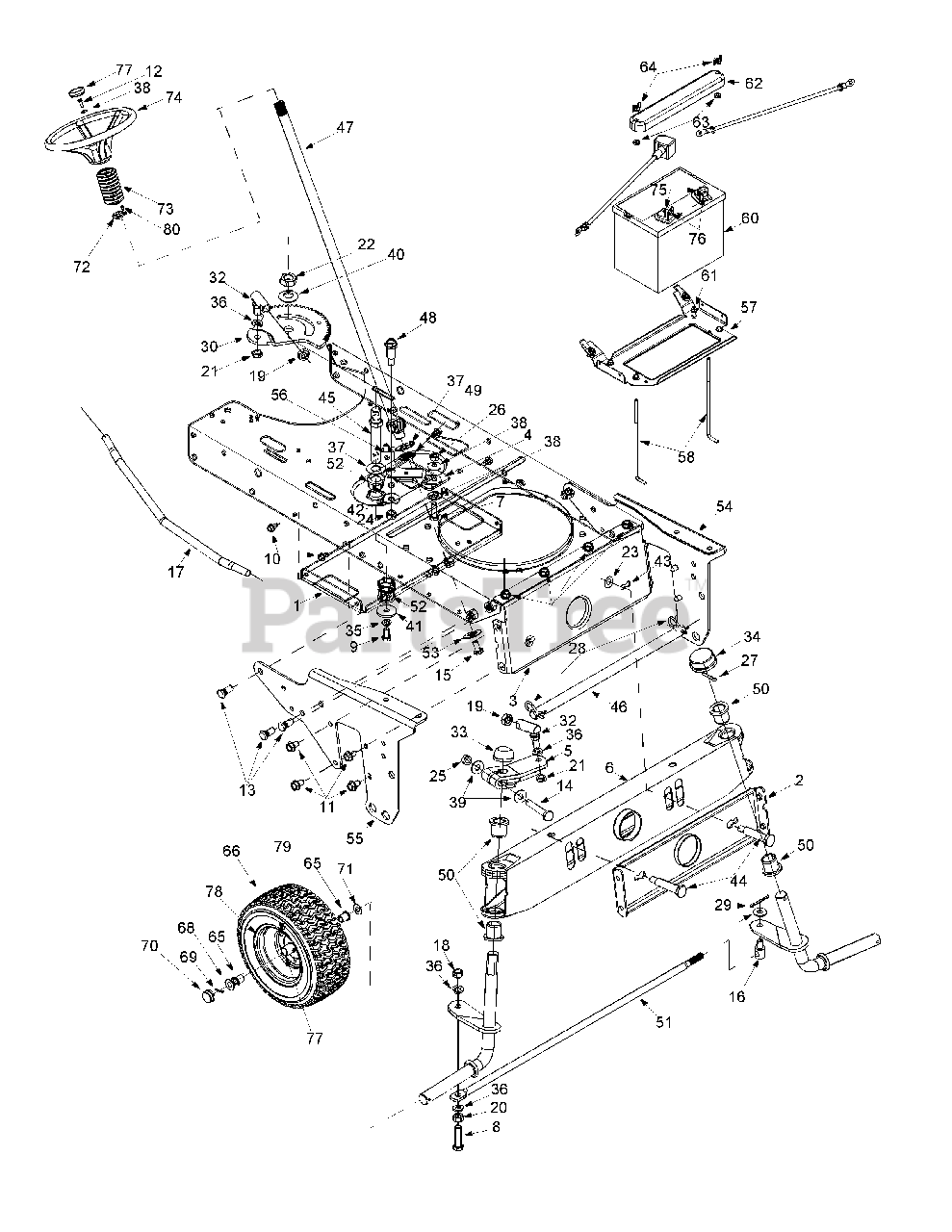

Axle & Wheels Front, Steering, Battery Parts Diagram

  • Title

1

MTD 16888A

Support Bracket: Deck Idler
(Superseded to 16888A-0637)

Variations

MTD 16888A-0637

Idler Support Bracket - POWDER BLACK (0637)

$56.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

2

MTD 16889A

Support Bracket: Pivot Bar Front
(Superseded to 16889A-0637)

Variations

MTD 16889A-0637

Pivot Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 16890A

Support Bracket: Pivot Bar Rear
(Superseded to 16890A-0637)

Variations

MTD 16890A-0637

Pivot Support Bracket - POWDER BLACK (0637)

$49.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

4

MTD 16894

Retainer Bracket: Bearing

Variations

MTD 16894-0637

No Longer Available BRACKET-BE - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 683-0061A

Steering Arm Assembly
(Superseded to 983-0061A-0637)

$40.99

$

In Stock, only 1 left!

0

6

MTD 683-0128A

Axle Assembly: Pivot Bar
(Superseded to 683-0128B)

Variations

MTD 683-0128A-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$97.99

$

In Stock, only 2 left!

0

MTD 683-0128A-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$97.99

$

In Stock, only 2 left!

0

$90.99

$

Usually ships in 3-6 days

0

7

MTD 710-0117

Hex Bolt 5/16-24 x 1.0"
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0459A

Hex Bolt 3/8-24 x 1.50"

$6.99

$

In Stock, Qty 8

0

9

MTD 710-0538

Hex Bolt 5/16-18 x 0.625"

$4.49

$

In Stock, Qty 9

0

10

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0604A

TT Screw 5/16-18 x 0.625"

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0643

Hex Bolt 5/16-18 x 1.0"

$6.99

$

In Stock, Qty 5

0

13

MTD 710-0793

Rib Neck Rd. Bolt

$

$

Not available

14

MTD 710-1257

Hex Bolt 3/8-24 x 2.5"

$7.99

$

In Stock, only 1 left!

0

15

MTD 710-1309

Pan Hd. Machine Screw

$4.49

$

In Stock, Qty 20+

0

16

MTD 711-1661

Ferrule

$

$

Not available

17

MTD 711-1106A

Steering Drag Link

$59.99

$

In Stock, only 2 left!

0

18

MTD 712-0214

Hex Lock Nut 3/8-24

$6.49

$

In Stock, only 3 left!

0

19

MTD 712-0240

Jam Nut
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-0241

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 13

0

21

MTD 712-0262

Lock Nut

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0318

Jam Nut

$3.49

$

In Stock, Qty 12

0

23

MTD 712-0431

Flange Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-3054

Lock Nut

$4.49

$

In Stock, Qty 20+

0

26

MTD 712-3057

Hex Nut
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

27

MTD 714-0121

Cotter Pin
(Superseded to 914-0121)

$

$

Not available

28

MTD 714-0149B

Hairpin Clip

$4.49

$

In Stock, Qty 18

0

29

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

30

MTD 717-0943C

Steering Gear Segment: 25T

$89.99

$

In Stock, only 4 left!

0

?31

MTD 721-0139

Loctite (TM)

$

$

Currently unavailable

32

MTD 723-0448A

Ball Joint
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

33

MTD 726-0341

Push Cap

$4.99

$

In Stock, Qty 20+

0

34

MTD 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

35

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

37

MTD 736-0187

Flat Washer

$4.49

$

In Stock, Qty 20+

0

38

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0267

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0317

Bell Washer

$7.99

$

In Stock, Qty 20+

0

41

MTD 736-0343

Flat Washer

$4.49

$

In Stock, Qty 7

0

42

MTD 736-0452

Bell Washer

$4.99

$

In Stock, Qty 5

0

43

MTD 737-3007

Grease: Alvania (TM)

$

$

Currently unavailable

44

MTD 738-0527

Shoulder Screw

$8.49

$

In Stock, Qty 6

0

45

MTD 738-0768

Steering Gear Shift Segment

$

$

Not available

46

MTD 738-0777A

Deck Rod

$37.99

$

Usually ships in 3-6 days

0

47

MTD 738-0963

Steering Shaft
(Superseded to 938-0963)

$83.99

$

In Stock, Qty 5

0

48

MTD 738-0966

Shoulder Screw
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

49

MTD 741-0656

Hex Flange Bearing
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

50

MTD 741-0660

Flange Bearing
(Superseded to 741-0660A)

$3.49

$

In Stock, Qty 20+

0

51

MTD 747-1267

Tie Rod

$

$

Not available

52

MTD 748-0227A

Hex Flange Bearing
(Superseded to 948-0227A)

$8.49

$

In Stock, Qty 12

0

53

MTD 748-0389

Cap
(Superseded to 948-0389)

$5.49

$

In Stock, Qty 20+

0

54

MTD 783-0337

Support Bracket: Pivot Bar LH

Variations

MTD 783-0337-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0337-0629

BRACKET-PIVOT SUP - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0337-0637

BRACKET-PIVOT SUP - POWDER BLACK (0637)

$

$

Not available

MTD 783-0337-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0337-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0337-0662

No Longer Available BRACKET-PI - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0337-0665

No Longer Available BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

$

$

55

MTD 783-0338

Support Bracket: Pivot Bar RH

Variations

MTD 783-0338-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0338-0637

No Longer Available BRACKET-PIVOT SUP - POWDER BLACK (0637)

$

$

Not available

MTD 783-0338-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0338-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0338-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0338-0662

No Longer Available BRACKET-PI - OYSTER GRAY (0662)

$

$

Not available

$

$

56

MTD 783-0465

Steering Brace
(Superseded to 783-0465-0637)

Variations

MTD 783-0465-0637

Steering Brace, Black - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 783-0346A

Battery Plate

Variations

MTD 783-0346A-0637

Battery Plate - POWDER BLACK (0637)

$

$

Not available

$

$

58

MTD 711-0222A

Battery Hold-Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

60

MTD 725-1706

Battery
(Superseded to 925-1707D)

$

$

Not available

61

MTD 710-0896

Hex Washer B-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

62

MTD 731-1683

Battery Cover

$

$

Not available

63

MTD 712-0271

Hex Nut

$4.49

$

In Stock, Qty 20+

0

64

MTD 712-3087

Wing Nut

$3.99

$

In Stock, Qty 20+

0

65

MTD 741-0516

Flange Bearing
(Superseded to 741-0516B)

$6.49

$

In Stock, Qty 20+

0

66

Wheel

Note: See "Wheels Front" illustration and parts list

$

$

Not available

?67

MTD 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

68

MTD 736-0316

Flat Washer

$4.49

$

In Stock, Qty 20+

0

69

MTD 714-0121

Cotter Pin
(Superseded to 914-0121)

$

$

Not available

70

MTD 734-0484A

Hub Cap
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 20+

0

MTD 734-1615A

Hub Cap (Gray)

$32.99

$

Usually ships in 3-6 days

0

MTD 734-1614A

Hub Cap (Beige)

$

$

Not available

MTD 734-1788A

Hub Cap (Yellow)
(Superseded to 934-1788A)

$34.99

$

Usually ships in 3-6 days

0

71

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

72

MTD 741-0587

Flange Bearing (Style A only)

$4.49

$

In Stock, Qty 9

0

73

MTD 731-0954

Steering Bellow (Style 0, 3,5,9)
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

MTD 731-0559A

Steering Bellow (Style A)
(Superseded to 731-0559B)

$

$

Not available

74

MTD 631-0027

Steering Wheel
(Superseded to 931-0027A)

$97.99

$

Usually ships in 3-6 days

0

75

MTD 712-0291

Hex Lock Nut

$4.49

$

In Stock, Qty 8

0

76

MTD 710-3015

Hex Bolt 1/4-20 x .75"

$3.99

$

In Stock, Qty 20+

0

77

MTD 731-0220

Steering Cap (Round)
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

MTD 731-1459A

Steering Wheel Cap (Square)

$8.49

$

Usually ships in 3-6 days

0

78

Note: See "Wheels Front" illustration and parts list

$

$

Not available

79

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

80

MTD 710-0837

Oval Hd. C-Sunk Screw

$4.49

$

In Stock, Qty 5

0

81

MTD 731-1291A

Pivot Bar Cap End
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 9

0

82

MTD 737-3007

Grease

$

$

Currently unavailable

83

MTD 638-0007A

Axle Assembly LH: Front

$

$

Not available

MTD 638-0008A

Axle Assembly RH: Front
(Superseded to 938-0008A)

$202.99

$

Usually ships in 3-6 days

0
