14AI808H718 - MTD Pro Garden Tractor (2004) Transmission Assembly Parts Diagram

Pro Garden Tractor

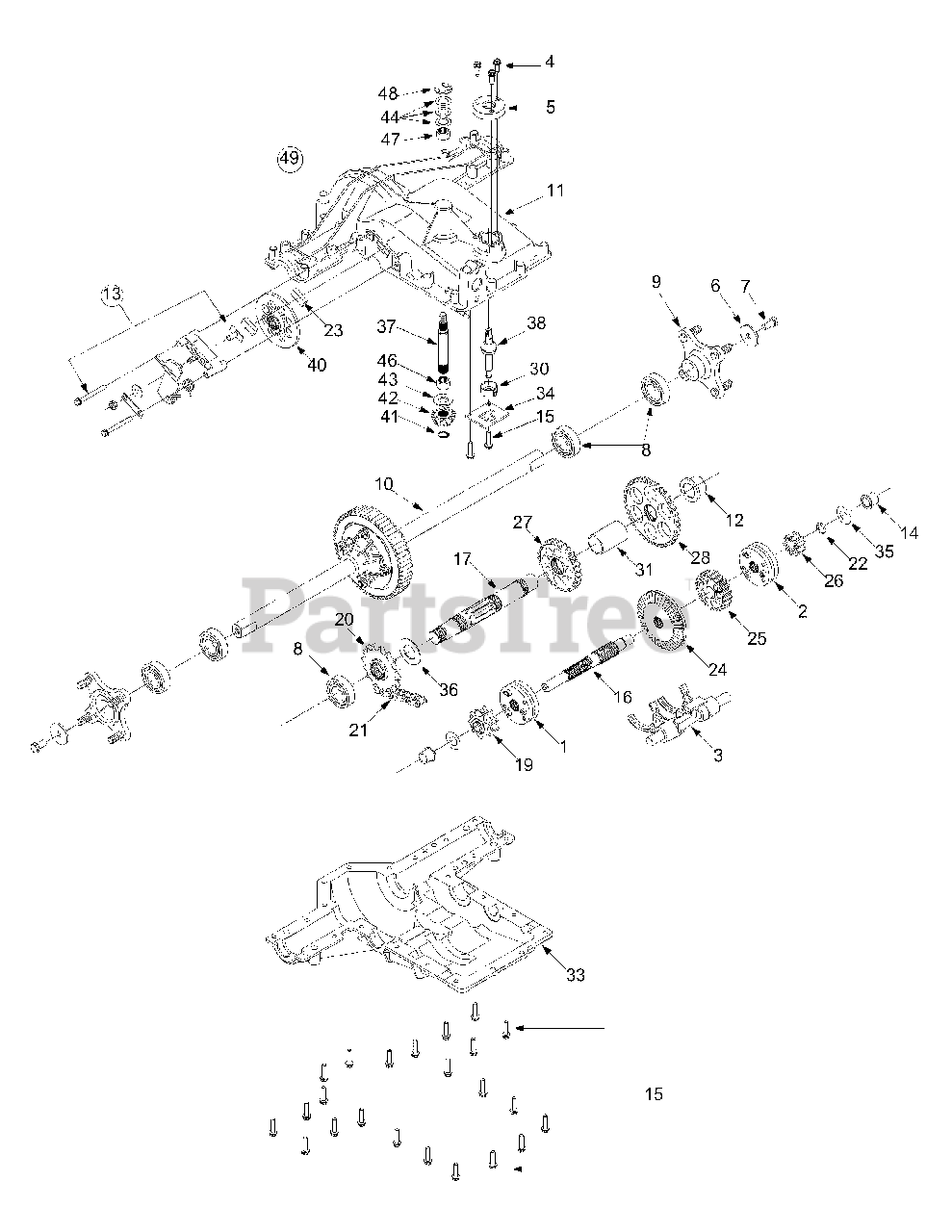

Transmission Assembly Parts Diagram

  • Title

1

MTD 618-0225

Reverse Collar Assembly

$

$

Not available

2

MTD 618-0226

Hi-Lo Collar Assembly

$125.99

$

Usually ships in 3-6 days

0

3

MTD 618-0227A

Shift Fork Assembly

Note: NLA

$

$

Not available

4

MTD 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 918-04053

Shft. Cover

$

$

Not available

6

MTD 936-0227

Flat Washer
(Superseded to 736-0227)

$

$

Not available

7

MTD 710-3119

Lock bolt 3/8-16 x 0.75

$6.99

$

In Stock, only 1 left!

0

8

MTD 741-0681

Ball Bearing

$

$

Not available

9

MTD 618-0579A

Wheel Hub Assembly
(Superseded to 618P0579B)

$77.99

$

In Stock, only 3 left!

0

10

MTD 918-0368A

Differential Axle Assembly

$

$

Not available

11

MTD 619-0034

Upper Housing

$

$

Not available

12

MTD 741-04488

Flanged Bearing

$9.49

$

In Stock, Qty 20+

0

13

MTD 961-0012

Brake Assembly

$

$

Not available

14

MTD 741-04085

Flanged Bearing

$

$

Not available

15

MTD 710-0788

TT Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

16

MTD 711-1051A

Drive Shaft

$

$

Not available

17

MTD 711-1216

Output Shaft

$160.99

$

Usually ships in 3-6 days

0

19

MTD 913-0446

9-tooth Sprocket

$

$

Not available

20

MTD 913-0447

16-tooth Sprocket

$

$

Not available

21

MTD 913-0448

22-link Chain, .625

$

$

Not available

22

MTD 916-0131

External Snap Ring

$7.49

$

In Stock, only 1 left!

0

23

MTD 917-0678

Brake Pad

$7.49

$

In Stock, Qty 7

0

24

MTD 917-1438

41-tooth Bevel Gear
(Superseded to 917-1438A)

$

$

Not available

25

MTD 917-1439A

20-tooth Spur Gear

$

$

Not available

26

MTD 717-1440

10-tooth Spur Gear

$

$

Not available

27

MTD 717-1441

27-tooth Spur Gear

$

$

Not available

28

MTD 717-1442

37-tooth Spur Gear

$

$

Not available

30

MTD 718-0504

Shifter Insert

$4.99

$

In Stock, only 1 left!

0

31

MTD 718-0505

Shifter Cover

$21.99

$

Usually ships in 3-6 days

0

33

MTD 719-0385

Lower Housing

$

$

Not available

34

MTD 718-0540

Lockout Plate

$

$

Not available

35

MTD 936-0337

Flat Washer, 5/8 x 1.0

$4.49

$

In Stock, Qty 9

0

36

MTD 736-3046A

Flat Washer, 1.01 x 1.86 x .060

$8.99

$

Usually ships in 3-6 days

0

37

MTD 711-1235

Input Shaft

$

$

Not available

38

MTD 747-1140

Shift Lever

$56.99

$

In Stock, only 2 left!

0

40

MTD 761-0215

Disc Brake

$20.99

$

In Stock, only 1 left!

0

41

MTD 916-0114

Retaining Ring, .56

$6.99

$

In Stock, only 2 left!

0

42

MTD 717-1463A

13-tooth Bevel Gear

$

$

Not available

43

MTD 936-0335

Flat Washer

$6.99

$

In Stock, Qty 7

0

44

MTD 936-0336

Flat Washer, 5/8 x 1.0 x .030 (as required)

$4.49

$

In Stock, Qty 7

0

44

MTD 936-0337

Flat Washer, 5/8 x 1.0 x ..040 (as required)

$4.49

$

In Stock, Qty 9

0

44

MTD 936-0349

Falt Washer,5/8 x 1.0 x .020 (as required)

$4.49

$

In Stock, Qty 20+

0

46

MTD 941-0335

Needle Bearing

$18.99

$

In Stock, only 2 left!

0

47

MTD 741-0696

Needle Bearing

$30.99

$

Usually ships in 3-6 days

0

48

MTD 916-0231

E-ring, .75
(Superseded to 716-0231)

$

$

Not available

49

MTD 753-05002

Transmisssion Assembly Complete

$2299.99

$

Usually ships in 3-6 days
