14AI808H718 - MTD Pro Garden Tractor (2004) Deck Assembly Parts Diagram

Pro Garden Tractor

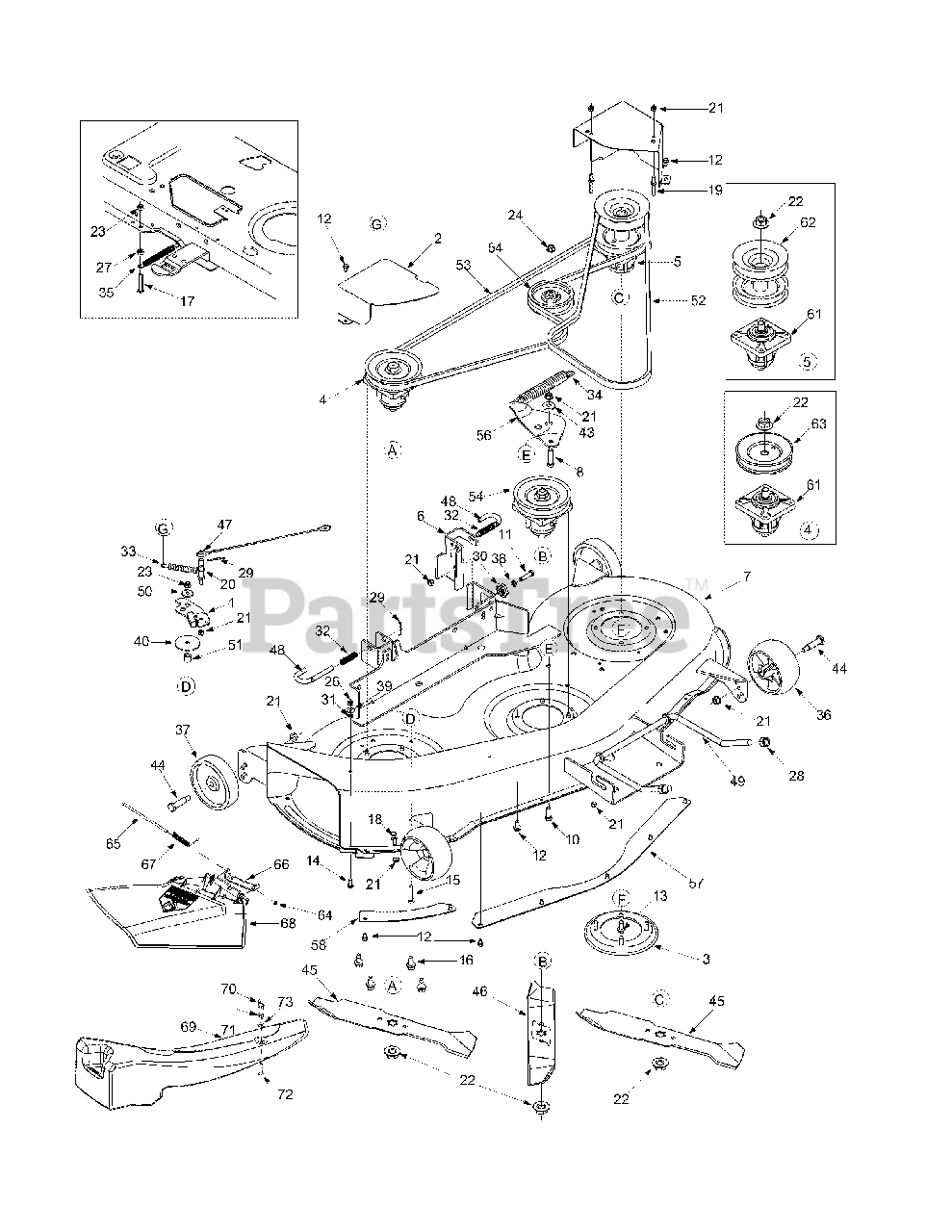

Deck Assembly Parts Diagram

  • Title

1

MTD 97116

Deck Brake Assembly

$52.99

$

Usually ships in 3-6 days

0

2

MTD 17258D

Belt Cover
(Superseded to 17258E)

Variations

MTD 17258D-0483

Deck Belt Cover, 46" Gray - CHARCOAL GRAY (0483)

$54.99

$

Usually ships in 3-6 days

0

MTD 17258D-0637

Deck Belt Cover, 46" Black - POWDER BLACK (0637)

$54.99

$

In Stock, only 2 left!

0

MTD 17258D-0648

Deck Belt Cover, 46" Black - TECH GRAY (0648)

$54.99

$

In Stock, only 2 left!

0

MTD 17258D-4008

COVER:BELT:DECK 46 - WINE RED (4008)

$54.99

$

In Stock, only 2 left!

0

MTD 17258D-0665

COVER:BELT:DECK 46 - YARDMAN GREEN (0665)

$54.99

$

In Stock, only 2 left!

0

MTD 17258D-0691

COVER:BELT:DECK 46 - BLACK JACK (0691)

$54.99

$

In Stock, only 2 left!

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 17982-0637

Spindle Plate

$35.99

$

Usually ships in 3-6 days

0

4

MTD 918-0240C

Spindle Assembly: Pulley w/ftg.

$136.99

$

In Stock, only 4 left!

0

5

MTD 918-0593A

Spindle Assembly: Double Pulley

$178.99

$

Usually ships in 3-6 days

0

6

MTD 683-0254B

Bracket Assembly: Deck Hanger LH

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$46.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$49.99

$

Usually ships in 3-6 days

0

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$36.99

$

In Stock, only 1 left!

0

$46.99

$

Usually ships in 3-6 days

0

7

MTD 683-04114

Deck Assembly 46"

Variations

MTD 683-04114-0637

No Longer Available SHELL-DECK - POWDER BLACK (0637)

$

$

Not available

MTD 683-04114-0665

No Longer Available SHELL-DECK - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-04114-0716

No Longer Available SHELL-DECK - CUB YELLOW-99 (0716)

$

$

Not available

$

$

8

MTD 710-0344

Hex Bolt 3/8-16 x 1.5

$5.99

$

In Stock, only 1 left!

0

9

MTD 710-0501

Hex Bolt 1/4-20 x 2.0

$7.49

$

Usually ships in 3-6 days

0

10

MTD 710-0514

Hex Bolt 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0650

TT Screw 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

14

MTD 710-0751

Hex Bolt 1/4-20 x 0.620

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0805

Hex Bolt 5/16-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

16

MTD 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-3180

Hex Bolt 5/16-18 x 1.75

$5.49

$

In Stock, Qty 15

0

18

MTD 911-04069

Grass Catcher Pin

$8.49

$

In Stock, Qty 20+

0

19

MTD 911-0993

Belt Guard Pin

$4.49

$

In Stock, Qty 14

0

20

MTD 711-1554

Pin 1/4-20

$10.99

$

Usually ships in 3-6 days

0

21

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 17

0

22

MTD 712-0417A

Flange Nut

$6.99

$

In Stock, Qty 20+

0

23

MTD 912-0429

Lock Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

24

MTD 912-0431

Flanged Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

25

MTD 912-0641

Hex Nut M16
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

26

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

27

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-3083

Lock Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

29

MTD 914-0470

Cotter Pin
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

30

MTD 917-04074

Gear: Deck Adjustment

$13.99

$

In Stock, Qty 20+

0

31

MTD 726-0233

Push Nut

$4.49

$

In Stock, only 3 left!

0

32

MTD 932-0306A

Compression Spring

$8.49

$

In Stock, only 4 left!

0

33

MTD 932-0429A

Extension Spring

$8.99

$

In Stock, Qty 20+

0

34

MTD 932-0594A

Extension Spring

$14.99

$

In Stock, Qty 20+

0

35

MTD 732-04197

Extension Spring

$6.99

$

In Stock, Qty 12

0

36

MTD 753-04856A

Deck Wheel 5.0 dia. Ball

$20.99

$

In Stock, Qty 20+

0

37

MTD 734-0973

Deck Wheel 5.0 x 1.38

$12.99

$

In Stock, Qty 20+

0

38

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

39

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

40

MTD 736-0418A

Flat Washer

$10.99

$

Usually ships in 3-6 days

0

41

MTD 936-0760

Lock Washer

$4.49

$

In Stock, Qty 13

0

43

MTD 938-0347

Shoulder Spacer

$10.99

$

Usually ships in 3-6 days

0

44

MTD 938-0373

Shoulder Screw 3/8-16

$9.49

$

In Stock, Qty 20+

0

45

MTD 942-0611A

Blade: 16.28" Three in One

$29.99

$

In Stock, Qty 20+

0

46

MTD 942-0612A

Blade: 14.88" Three in One

$29.99

$

In Stock, Qty 16

0

47

MTD 746-1107

Cable: Bracket

$15.99

$

In Stock, only 1 left!

0

48

MTD 747-1116

Rod: Deck Release Handle

$12.99

$

Usually ships in 3-6 days

0

49

MTD 747-1130B

Rod: Front Adjustment

$41.99

$

In Stock, only 3 left!

0

50

MTD 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

51

MTD 750-1291

Spacer

$

$

Not available

52

MTD 954-0228

Belt: V Type

$56.99

$

In Stock, only 1 left!

0

53

MTD 954-0349

Belt: V Type

$40.99

$

In Stock, Qty 20+

0

54

MTD 756-0627D

Idler Pulley

$30.99

$

In Stock, Qty 20+

0

56

MTD 783-0139B-0637

Idler Bracket

$

$

Not available

57

MTD 783-0141

Deck Skirt: Center

Variations

MTD 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

MTD 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

58

MTD 783-0142-0637

Deck Skirt RH

$48.99

$

Usually ships in 3-6 days

0

60

MTD 783-1347B

Belt Cover
(Superseded to 783-1347C)

Variations

MTD 783-1347B-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

MTD 783-1347B-0637

Belt Cover, LH - POWDER BLACK (0637)

$

$

Not available

MTD 783-1347B-0650

COVER-BELT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-1347B-0716

Belt Cover, LH - CUB YELLOW-99 (0716)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

61

MTD 619-0011B

Spindle Housing
(Superseded to 753-07015)

$57.99

$

In Stock, only 1 left!

0

61

MTD 17983

Bearing
(Superseded to 504-01396)

$

$

Not available

61

MTD 938-1128

Spindle Shaft 6.58

Note: Used in 918-0593A Double Pulley

$46.99

$

In Stock, only 2 left!

0

61

MTD 738-0927

Spindle Shaft 4.45

Note: Used in 918-0240C Pulley

$36.99

$

Usually ships in 3-6 days

0

61

MTD 941-0919A

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

62

MTD 756-1214

Deck Pulley: Double

$125.99

$

Usually ships in 3-6 days

0

63

MTD 756-1187

Deck Pulley

$38.99

$

In Stock, only 2 left!

0

64

MTD 926-0106

Speed Nut
(Superseded to 726-0106)

$

$

Not available

65

MTD 911-0792

Hinge Pin

$4.99

$

Usually ships in 3-6 days

0

66

MTD 703-1693A

Mounting Bracket

$23.99

$

In Stock, only 4 left!

0

67

MTD 732-0602A

Torsion Spring

$12.99

$

In Stock, Qty 5

0

68

MTD 931-1032B

Chute Deflector: Side Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

69

MTD 731-1636

Mulch Plug (if equipped)

$149.99

$

In Stock, only 1 left!

0

70

MTD 712-3087

Wing Nut (if equipped)

$3.99

$

In Stock, Qty 20+

0

71

MTD 712-3006

Hex Nut (if equipped)

$4.99

$

In Stock, Qty 19

0

72

MTD 710-0578

Machine Screw (if equipped)

$4.49

$

Usually ships in 3-6 days

0

73

MTD 736-0173

Flat Washer (if equipped)

$4.49

$

In Stock, only 4 left!

0
