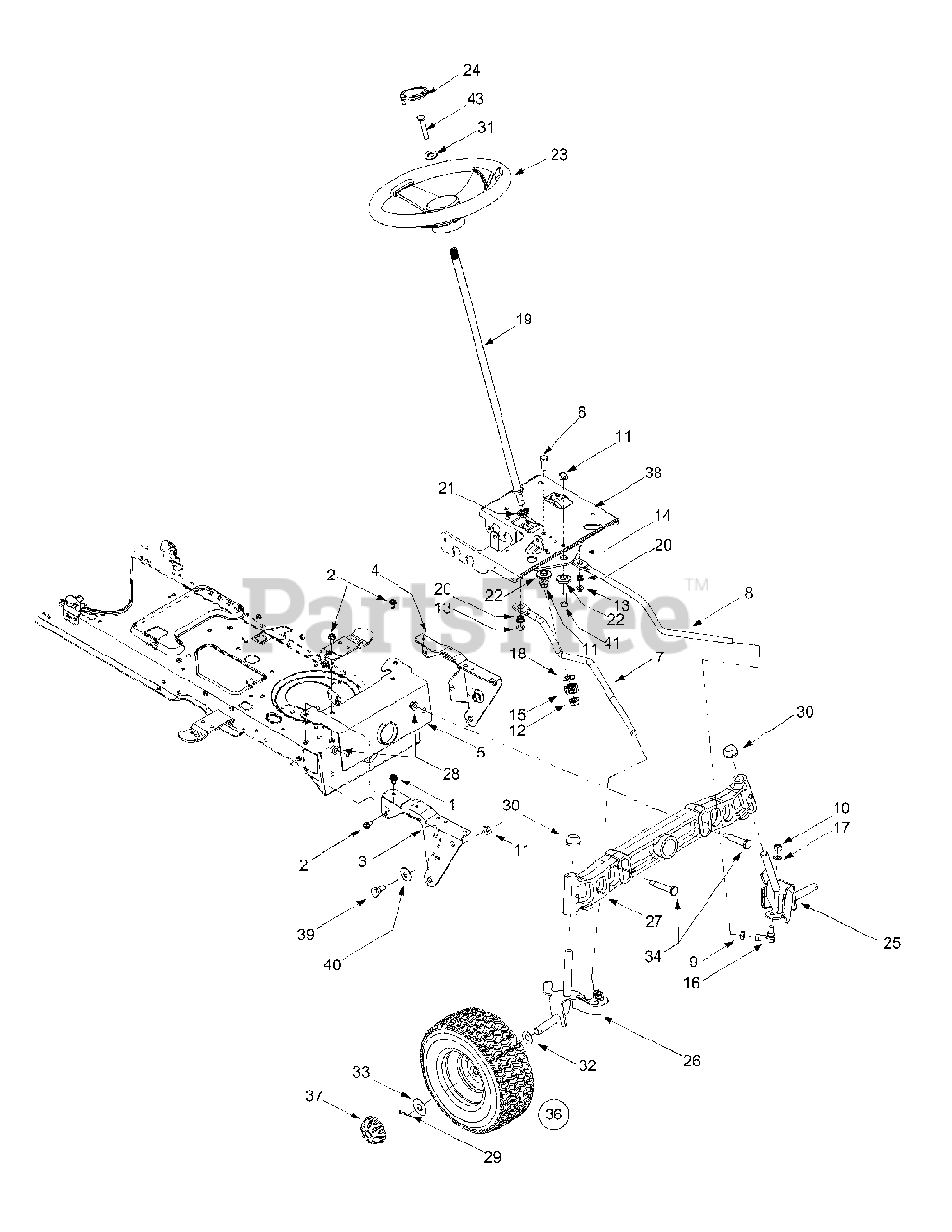

14AI808H718 - MTD Pro Garden Tractor (2004) Axle Front & Steering Parts Diagram

Pro Garden Tractor

Axle Front & Steering Parts Diagram

  • Title

1

MTD 710-1260A

Self-tapping Screw, 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0604A

Self-tapping Screw, 16-18 x.625

$4.49

$

In Stock, Qty 20+

0

3

MTD 783-0726D

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

MTD 783-0726D-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0726D-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0726D-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

MTD 783-0726D-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

MTD 783-0726D-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0726D-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0726D-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 783-0727B

LH Pivot Support Bracket

Variations

MTD 783-0727B-0606

BRACKET:PIVOT:SUPT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-0727B-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0727B-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

MTD 783-0727B-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

MTD 783-0727B-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0727B-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

MTD 783-0727B-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

5

MTD 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

MTD 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

MTD 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

MTD 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-1408

RH Drag Link

$

$

Not available

8

MTD 711-1409A

LH Drag Link

$

$

Not available

9

MTD 912-0240

Jam Nut, 7/16-20 (Grade 2)

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 13

0

11

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 717-1550F

Steering Gear, 11/90 Ratio

$70.99

$

In Stock, Qty 20+

0

15

MTD 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

MTD 923-0448A

Ball Joint, 7/16-20

$24.99

$

In Stock, Qty 20+

0

17

MTD 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

19

MTD 738-1001A

Steering Shaft, .625 OD x 24.4

$75.99

$

In Stock, Qty 5

0

20

MTD 941-0475

Plastic Bushing, .38 ID

$4.49

$

In Stock, Qty 20+

0

21

MTD 941-0656A

Hex Flange Bearing, 5/8

$5.49

$

In Stock, Qty 20+

0

22

MTD 738-0372B

Shoulder Spacer, .38 ID

$9.49

$

In Stock, Qty 20+

0

23

MTD 631-04008A

Steering Wheel, Three Spoke, Soft Grip
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

23

MTD 631-04028

Steering Wheel, Three Spoke

$69.99

$

In Stock, only 1 left!

0

24

MTD 731-04040

Steering Wheel Cap, Round w/logo

$9.99

$

In Stock, only 1 left!

0

24

MTD 731-04039

Steering Wheel Cap, Round

$8.49

$

In Stock, only 1 left!

0

25

MTD 938-0017

LH Axle Assembly, .75 Diameter

$

$

Not available

26

MTD 938-0018

RH Axle Assembly, .75 Diameter

$

$

Not available

27

MTD 919-04177A

Cast Iron Pivot Bar w/ Fittings .75
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

28

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

29

MTD 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

30

MTD 726-0341

Push Cap, .750

$4.99

$

In Stock, Qty 20+

0

31

MTD 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

32

MTD 936-0316

Flat Washer, .78 x 1.59 x .06
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

34

MTD 738-1011A

Shoulder Screw, .5 x 2.2, 3/8-16

$8.49

$

In Stock, Qty 11

0

35

MTD 710-0643

Hex Bolt, 5/16-18 X 1

$6.99

$

In Stock, Qty 5

0

36

MTD 634-0183

Wheel Assembly Complete, 16 x 6.5 x 8

Variations

MTD 634-0183-0911

No Longer Available WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$

$

Not available

MTD 634-0183-0941

No Longer Available WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

$

$

36

MTD 634-0182-0662

Rim Only w/ Plastic Bearing

$132.99

$

In Stock, only 1 left!

0

36

MTD 934-0255

Air Valve (Not Shown)

$4.49

$

In Stock, Qty 20+

0

36

MTD 734-1727

Tire Only, Square Shoulder

$56.99

$

Usually ships in 3-6 days

0

37

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

MTD 783-04612-0637

Steering Support Bracket

$89.99

$

In Stock, only 3 left!

0

39

MTD 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0
