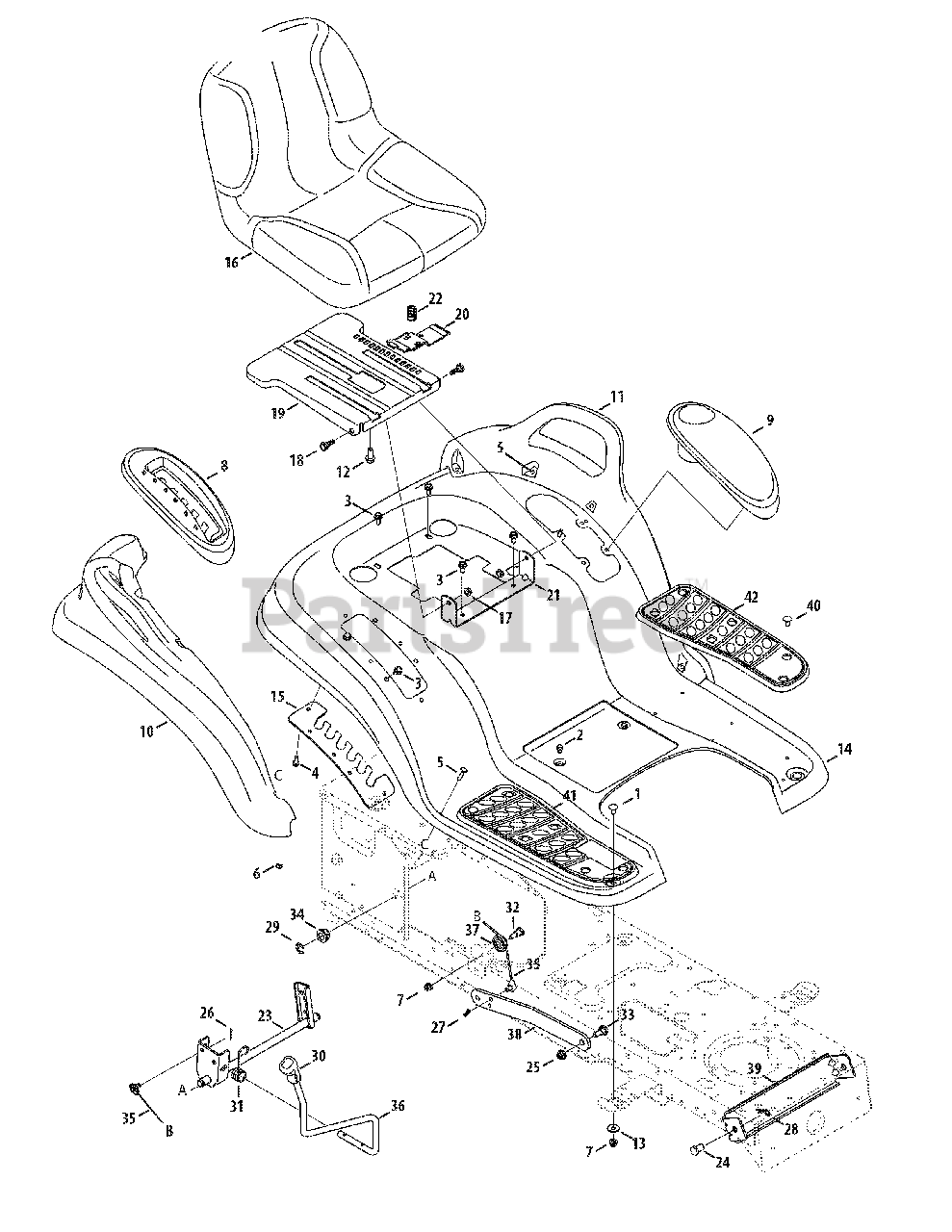

14AA815K004 - MTD Gold Garden Tractor (2009) Seat, Fender & Deck Lift Parts Diagram

Gold Garden Tractor

Seat, Fender & Deck Lift Parts Diagram

  • Title

1

MTD 710-0451

Carriage Bolt, 5/16-18 x.750

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, Qty 5

0

5

MTD 710-0932

Carriage Screw 1/4-20 x 1.00
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

6

MTD 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

7

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 731-06795

Lift Lever Cover

$24.99

$

Usually ships in 3-6 days

0

9

MTD 731-1993A

Cover w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

10

MTD 731-2618

RH Fender Flare

$

$

Not available

11

MTD 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

12

MTD 710-04482

Screw, 3/8-16 x .875

$4.49

$

In Stock, Qty 16

0

13

MTD 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, only 4 left!

0

14

MTD 783-06247-0691

Fender 4 Sty Hydro w/ Flares

$

$

Not available

15

MTD 783-0677B-0637

Lift Adjustment Bracket

$

$

Not available

16

MTD 757-04086

Seat
(Superseded to 757-05232)

$290.99

$

Usually ships in 3-6 days

0

17

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 938-0296

Shoulder Screw, .437 x .268 x 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

19

MTD 783-06049-0691

Seat Mount Bracket
(Superseded to 783-06049-0637)

$68.99

$

Usually ships in 3-6 days

0

20

MTD 783-06050

Seat Adjustment Lever

$10.99

$

In Stock, only 1 left!

0

21

MTD 783-06088-0691

Seat Pivot Bracket
(Superseded to 783-06088A-0637)

$21.99

$

Usually ships in 3-6 days

0

22

MTD 732-04563

Compression Spring, .68 x 1.065 x .055

$5.49

$

In Stock, only 2 left!

0

23

MTD 683-04301-0637

Lift Shift Assembly

$

$

Not available

24

MTD 911-0332

Clevis Pin, .50 dia. x .78 lg

$16.99

$

In Stock, Qty 16

0

25

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

26

MTD 914-0104

Cotter Pin, .072 dia. x 1.13 lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

27

MTD 914-0111

Cotter Pin, 3/32 x 1.00
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

28

MTD 914-04023

Cotter Pin, .080 x 1.5625
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

29

MTD 716-0106A

E-type Ring

$5.49

$

In Stock, only 2 left!

0

30

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 2 left!

0

31

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

32

MTD 738-0138A

Shoulder Bolt, .496 x 2.5 x 3/8-16

$6.99

$

Usually ships in 3-6 days

0

33

MTD 938-0380

Shoulder Bolt, .500 x .270 x 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

34

MTD 941-0225

Hex Flange Bearing

$7.49

$

In Stock, Qty 20+

0

35

MTD 746-0968

Lift Cable

$19.99

$

In Stock, Qty 20+

0

36

MTD 747-04447

Lift Handle

$44.99

$

In Stock, only 3 left!

0

37

MTD 756-1154

Roller Pulley

$7.99

$

In Stock, only 1 left!

0

38

MTD 783-05546-0637

Lift Arm
(Superseded to 783-05546A-0637)

$20.99

$

In Stock, only 2 left!

0

39

MTD 783-0720C-0637

Front Deck Rod Adjustment Bracket

$45.99

$

In Stock, only 2 left!

0

40

MTD 726-3046

Clip

$3.99

$

In Stock, Qty 16

0

41

MTD 735-0656

Foot Pad, RH

$25.99

$

Usually ships in 3-6 days

0

42

MTD 735-0657

Foot Pad, LH

$26.99

$

Usually ships in 3-6 days

0
