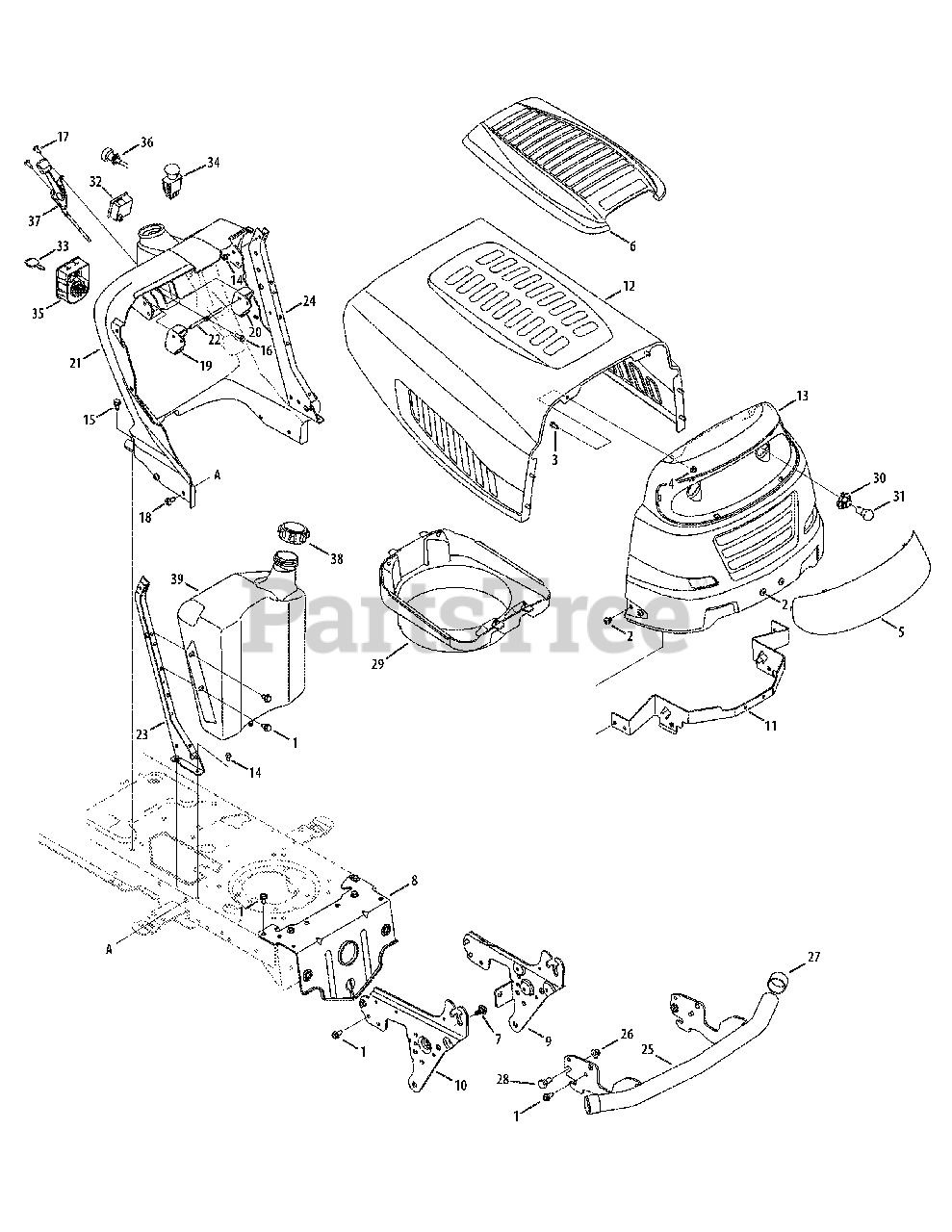

14AA815K004 - MTD Gold Garden Tractor (2009) Hood, Grille, Dash & Bumper Parts Diagram

Gold Garden Tractor

Hood, Grille, Dash & Bumper Parts Diagram

  • Title

1

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-04593

Screw, 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

3

MTD 710-0751

Hex Cap Screw, 1/4-20 x.62

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

5

MTD 731-04949A

Headlight Lens

$26.99

$

In Stock, only 1 left!

0

6

MTD 731-05522A

Hood Cover, 5 Style

$49.99

$

Usually ships in 3-6 days

0

7

MTD 738-04091A

Shoulder Screw,.43 x.29

$3.99

$

Usually ships in 3-6 days

0

8

MTD 783-05326-0637

Pivot Bar Bracket
(Superseded to 783-05326D-0637)

$33.99

$

In Stock, only 1 left!

0

9

MTD 783-05417-0637

Pivot Support Bracket LH

$

$

Not available

10

MTD 783-05418-0637

Pivot Support Bracket RH

$

$

Not available

11

MTD 783-05454-0637

Hood Pivot Bracket

$31.99

$

Usually ships in 3-6 days

0

12

MTD 783-05683-0662

5-Style Hood

$171.99

$

Usually ships in 3-6 days

0

13

MTD 783-05685-0662

1-Style Grille
(Superseded to 783-05685A-0662)

$140.99

$

Usually ships in 3-6 days

0

14

MTD 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0607

Screw, 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

16

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

In Stock, Qty 5

0

17

MTD 710-1017

Screw, 1/4-14 x.625

$8.49

$

In Stock, Qty 9

0

18

MTD 710-1611B

Screw, 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

19

MTD 931-04215

Cruise Control Button

$

$

Not available

20

MTD 931-04217

Parking Brake Button

$11.99

$

In Stock, only 1 left!

0

21

MTD 731-06169

Dash Panel

$

$

Not available

22

MTD 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

23

MTD 783-04285F-0637

RH Dash Support Plate

$

$

Not available

24

MTD 783-04323F-0637

LH Dash Support Plate

$34.99

$

Usually ships in 3-6 days

0

25

MTD 683-04219B-0637

Bumper Assembly

$60.99

$

In Stock, only 2 left!

0

26

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

27

MTD 731-05674

Cap

$5.49

$

In Stock, Qty 20+

0

28

MTD 738-0143

Shoulder Bolt, 3/8-16

$4.49

$

In Stock, Qty 20+

0

29

MTD 731-05165A

Plenum

$47.99

$

Usually ships in 3-6 days

0

30

MTD 925-1649

Headlight Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

31

MTD 925-0963

Lamp

$7.49

$

In Stock, only 4 left!

0

32

MTD 925-04036C

Systems Ind. Monitor w/Hr. Mtr.
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

33

MTD 925-1745A

Ignition Key w/ plastic cover

$17.99

$

In Stock, Qty 20+

0

34

MTD 925-04174

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, Qty 5

0

35

MTD 925-04227B

Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

36

MTD 746-1085A

Choke Control Cable
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

37

MTD 946-04541

Throttle Control/Cable

$

$

Not available

38

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 2 left!

0

39

MTD 751-0658E

Fuel Tank, Three Gallon

$115.99

$

In Stock, only 2 left!

0

MTD 725-04862

Wire Harness (w/Hr. Mtr & Elec. PTO)

Note: Not Shown

$

$

Not available

MTD 777X41984

Headlight Reflective Insert

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0
