14AA815K004 - MTD Gold Garden Tractor (2009) Briggs & Stratton Twin Cylinder Engine Parts Diagram

Gold Garden Tractor

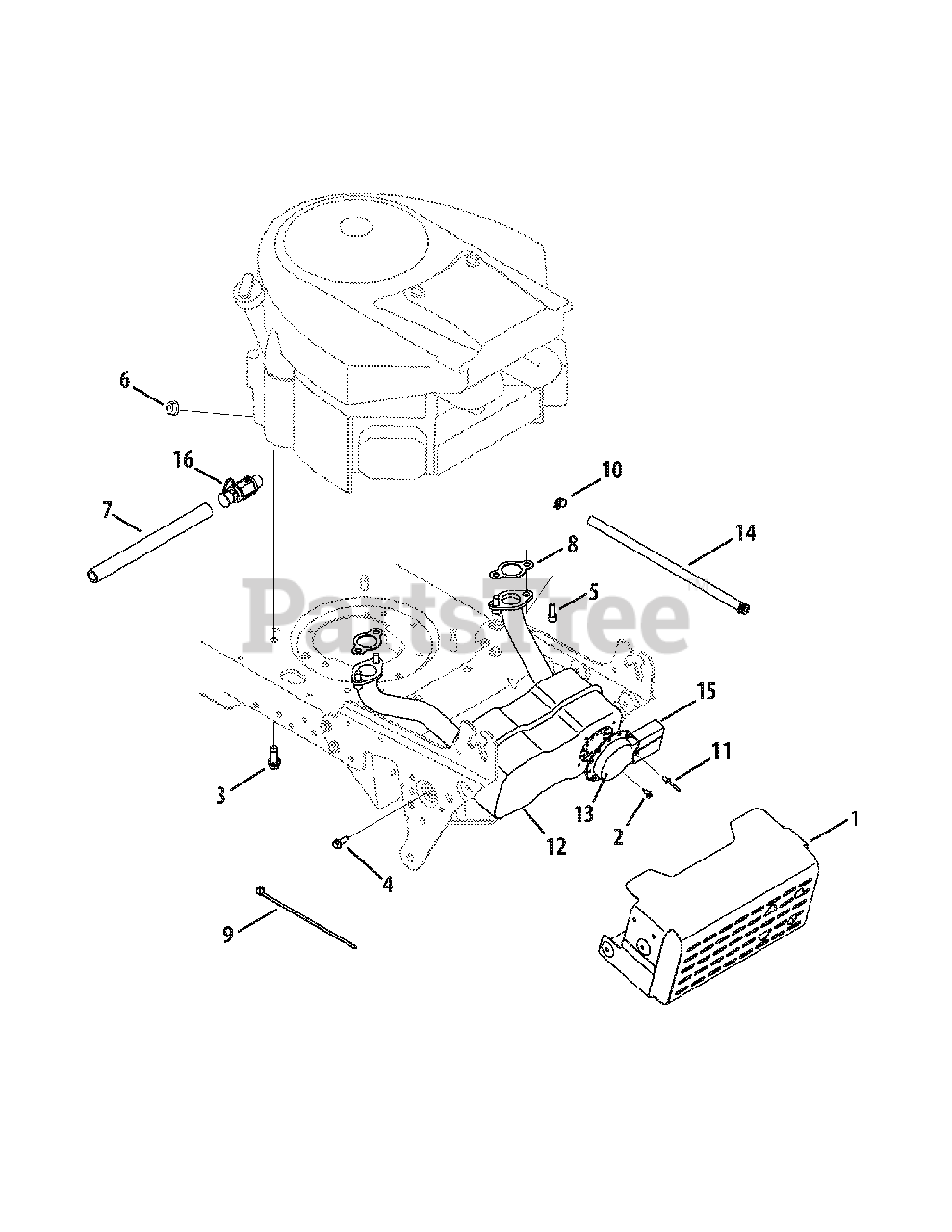

Briggs & Stratton Twin Cylinder Engine Parts Diagram

  • Title

1

MTD 683-04549-0637

Muffler Assembly Shield
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683

TT Screw 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 2 left!

0

4

MTD 710-0642

TT Screw 1/4-20 x 0.750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

7

MTD 751-3141-14

OIl Drain Extension Hose

$11.99

$

In Stock, Qty 8

0

8

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

10

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

11

MTD 728-04000

Pop Rivets, .188 x .300

$6.99

$

In Stock, Qty 7

0

12

MTD 751-10542

Twin Inlet Muffler
(Superseded to 951-10542E)

$142.99

$

In Stock, only 2 left!

0

13

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

14

MTD 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

15

MTD 751-10353

Long Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

16

MTD 951-10517A

Oil Drain Valve

$24.99

$

Usually ships in 3-6 days

0
