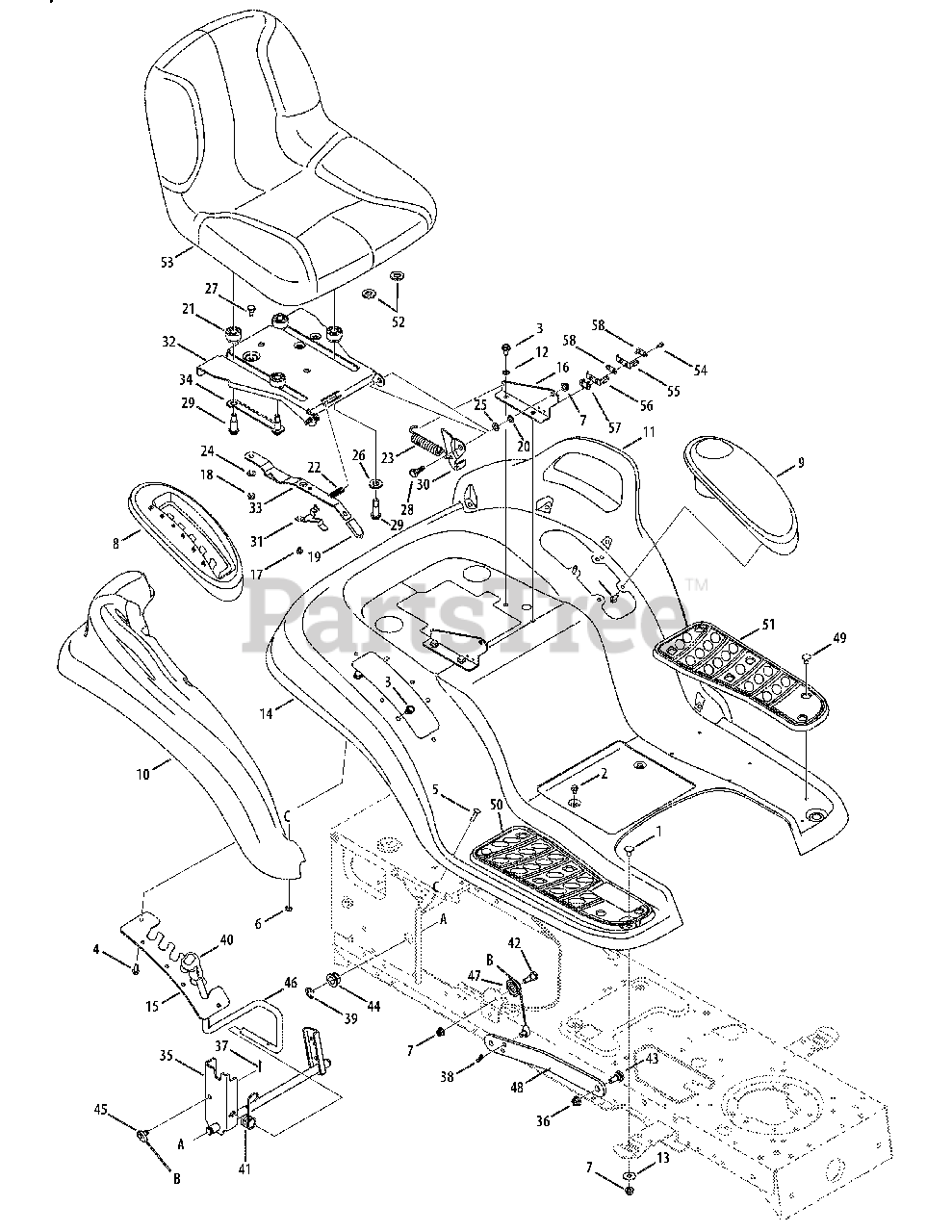

14AA815K004 - MTD Gold Garden Tractor (2008) (Ace Hardware) Seat, Fender & Deck Lift Parts Diagram

Gold Garden Tractor

Seat, Fender & Deck Lift Parts Diagram

  • Title

1

MTD 710-0451

Carriage Bolt, 5/16-18 x.750

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

Usually ships in 3-6 days

0

5

MTD 710-0932

Carriage Screw 1/4-20 x 1.00
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

6

MTD 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

9

MTD 731-1993A

Cover w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

10

MTD 731-2618

RH Fender Flare

$

$

Not available

11

MTD 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

12

MTD 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

13

MTD 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

14

MTD 783-04459A

Fender 4 Sty Hydro w/ Flares

Variations

MTD 783-04459A-0606

FENDER-HYDRO 4-STY - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04459A-0650

FENDER-HYDRO 4-STY - RED METALLIC (0650)

$

$

Not available

MTD 783-04459A-0665

FENDER-HYDRO 4-STY - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04459A-4008

FENDER-HYDRO 4-STY - WINE RED (4008)

$

$

Not available

$

$

15

MTD 783-0677B

Lift Adjustment Bracket

Variations

MTD 783-0677B-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0677B-4008

BRACKET:LIFT:ADJ - WINE RED (4008)

$

$

Not available

MTD 783-0677B-4015

BRACKET:LIFT:ADJ - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

16

MTD 783-1489C

Seat Mounting Bracket

Variations

MTD 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

17

MTD 710-1268

Screw, #10-16 x.375

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

19

MTD 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

20

MTD 726-0201

Speed Clip

$6.99

$

In Stock, only 2 left!

0

21

MTD 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

22

MTD 732-0499

Compression Spring,.41 x 1.5

$9.49

$

In Stock, only 1 left!

0

23

MTD 732-1184

Extension Spring,.84 x 4.6

$11.99

$

In Stock, only 1 left!

0

24

MTD 736-0204

Washer, Flat, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0242

Flat Washer

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-3019

Flat Washer,.31 x 1.062 x.134

$5.99

$

In Stock, Qty 11

0

27

MTD 738-0137A

Shoulder Screw,.340 x.285,1/4-20

$10.99

$

In Stock, Qty 10

0

28

MTD 738-0296

Shoulder Screw,.437 x.286

$4.49

$

In Stock, Qty 20+

0

29

MTD 738-0966A

Shoulder Screw,.50 x.50, 3/8-16

$4.99

$

In Stock, Qty 19

0

30

MTD 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

31

MTD 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

32

MTD 783-0738D

Seat Pivot Bracket

Variations

MTD 783-0738D-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0738D-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0738D-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0738D-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

MTD 783-0738D-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0738D-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

MTD 783-0738D-4015

BRACKET-PIVOT:SEAT - FIRE RED (4015)

$

$

Not available

MTD 783-0738D-4021

Seat Pivot Bracket - CUB YELLOW 2 (4021)

$

$

Not available

MTD 783-0738D-4008

BRACKET-PIVOT:SEAT - WINE RED (4008)

$

$

Not available

$

$

33

MTD 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

MTD 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

34

MTD 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

35

MTD 683-04301

Lift Shaft Assembly
(Superseded to 683-04301-0637)

Variations

MTD 683-04301-0637

SHAFT ASM-LIFT:54" - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

37

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

38

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

39

MTD 716-0106A

E-Ring

$5.49

$

In Stock, only 2 left!

0

40

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

41

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

42

MTD 738-0138A

Hex Cap Screw, 5/16-18 x.62

$6.99

$

In Stock, only 2 left!

0

43

MTD 738-0380

Shoulder Screw, 3/8-16

$7.99

$

In Stock, only 1 left!

0

44

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

45

MTD 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

46

MTD 747-04447

Lift Handle

$44.99

$

In Stock, only 3 left!

0

47

MTD 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

48

MTD 783-05546

Arm Lift
(Superseded to 783-05546A-0637)

Variations

MTD 783-05546-0637

Lift Link - POWDER BLACK (0637)

$20.99

$

In Stock, only 2 left!

0

$20.99

$

In Stock, only 2 left!

0

49

MTD 726-3046

Foot Pad Clips

$3.99

$

In Stock, Qty 16

0

50

MTD 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

51

MTD 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

52

MTD 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

53

MTD 757-04003A

High Back Seat, Black

$

$

Not available

54

MTD 710-0227

Screw, #8-18 x.500

$4.49

$

In Stock, Qty 20+

0

55

MTD 725-1303

Outer Seat Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

56

MTD 725-1439

Inner Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

57

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

58

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0
