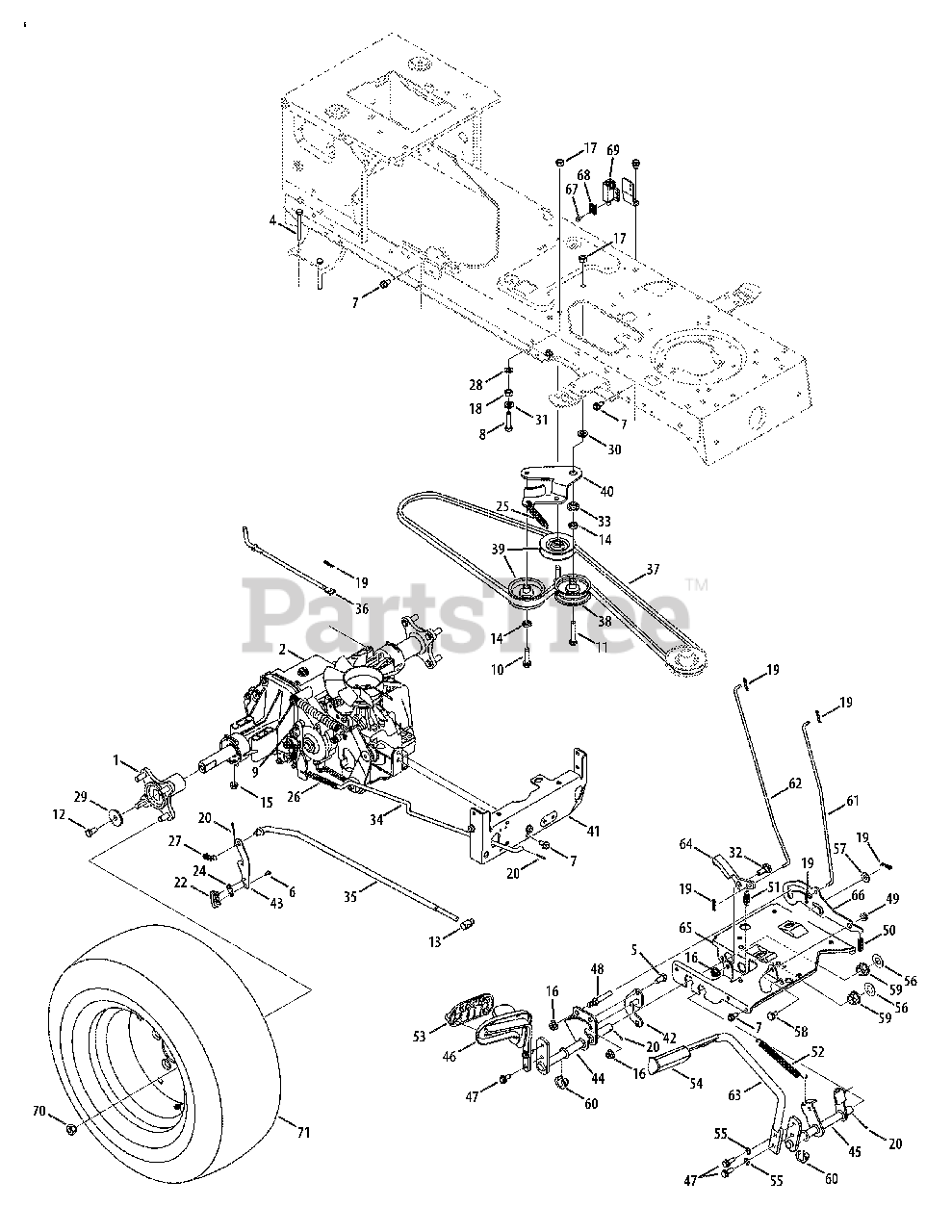

14AA815K004 - MTD Gold Garden Tractor (2008) (Ace Hardware) Drive System Parts Diagram

Gold Garden Tractor

Drive System Parts Diagram

  • Title

1

MTD 618-04317

Wheel Hub Assembly
(Superseded to 918-04317)

$116.99

$

Usually ships in 3-6 days

0

2

MTD 618-04329

Hydrostatic Transmission Assmbly

$

$

Not available

3

MTD 629-0949B

Revse./Grnd. Wire Harness Adptr.

$43.99

$

Usually ships in 3-6 days

0

4

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0216

Hex Cap Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

6

MTD 710-0227

Screw, #8-18 x.5

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-04484

Self-tapping Screw, 5/16-18 x.750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0520

Hex Cap Screw, 3/8-16 x 1.5

$4.49

$

In Stock, Qty 6

0

9

MTD 710-0599

Self-tapping Screw, 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1007

Hex Cap Screw, 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

11

MTD 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

12

MTD 710-3119

Screw, 3/8-16 x.750

$6.99

$

In Stock, only 1 left!

0

13

MTD 711-0832

Ferrule, 3/8-24
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

14

MTD 712-0240

Jam Nut, 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0431

Hex Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

MTD 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

19

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

20

MTD 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

21

MTD 725-0157

Cable Tie

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

22

MTD 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

23

MTD 726-0154

Push-mount Cable Tie
(Superseded to 926-0154)

Note: Not Shown

$6.49

$

Usually ships in 3-6 days

0

24

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

25

MTD 732-04323B

Extension Spring,.770 x 3.72 Lg.

$12.99

$

In Stock, only 1 left!

0

26

MTD 732-0716D

Extension Spring,.59 x 4.0

$13.99

$

Usually ships in 3-6 days

0

27

MTD 732-3118

Extension Spring, 3/8 x 1.44

$10.99

$

In Stock, only 1 left!

0

28

MTD 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

29

MTD 736-0227

Flat Washer,.390 x 1.500 x.134

$6.49

$

In Stock, Qty 13

0

30

MTD 736-0258

Flat Washer.385 x 1.00 x.135

$4.49

$

In Stock, only 2 left!

0

31

MTD 736-0300

Flat Washer .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

32

MTD 738-0380

Shoulder Bolt, .500 x .270

$7.99

$

In Stock, only 1 left!

0

33

MTD 738-0372B

Shoulder Spacer,.38

$9.49

$

In Stock, Qty 20+

0

34

MTD 747-04140

Hydrostatic Brake Rod

$

$

Not available

35

MTD 747-1119

Hydrostatic Control Rod

$

$

Not available

36

MTD 747-1121A

Hydrostatic Bypass Rod

$

$

Not available

37

MTD 754-0349

Drive Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

38

MTD 756-04224

Flat Idler Pulley, 2.75

$26.99

$

In Stock, Qty 20+

0

39

MTD 756-04325

V-idler Pulley, 3.06

$24.99

$

In Stock, Qty 20+

0

40

MTD 783-04442

Double Idler Bracket

Variations

MTD 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

MTD 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

41

MTD 783-0667B

Transmission Torque Bracket

Variations

MTD 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

MTD 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

42

MTD 783-0745

Speed Control Bracket
(Superseded to 783-0745-0637)

Variations

MTD 783-0745-0637

BRACKET-CONTROL SP - POWDER BLACK (0637)

$

$

Not available

$

$

43

MTD 783-0782

Switch Actuator Bracket
(Superseded to 783-0782-0637)

Variations

MTD 783-0782-0637

Actuator Bracket, S - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 647-0049A

Drive Control Assembly
(Superseded to 647-0049A-0637)

Variations

MTD 647-0049A-0637

Hydro Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 647-04100

Brake Control Assembly
(Superseded to 647-04100-0637)

Variations

MTD 647-04100-0637

Brake Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 683-0267C

Hydro Pedal Assembly

$

$

Not available

47

MTD 710-1260A

Self-tapping Screw, 5/16-18 x.75

$3.99

$

In Stock, Qty 20+

0

48

MTD 711-04159B

Pin, 3/8-16 x 2.43

$7.99

$

Usually ships in 3-6 days

0

49

MTD 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

50

MTD 732-0335

Compression Spring,.40 OD x 1.17

$

$

Not available

51

MTD 732-0955

Extension Spring,.50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

52

MTD 732-0963

Extension Spring,.50 OD x 6.37

$9.99

$

In Stock, only 4 left!

0

53

MTD 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

54

MTD 735-3049A

Brake Pedal Pad

$12.99

$

In Stock, only 1 left!

0

55

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

MTD 736-0187

Flat Washer,.64 x 1.24 x.06

$4.49

$

In Stock, Qty 20+

0

57

MTD 736-0262

Flat Washer,.385 x.870 x.092

$3.99

$

In Stock, Qty 20+

0

58

MTD 738-0155

Shoulder Screw,.437 x 1.62
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

59

MTD 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

60

MTD 741-3065B

Split Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

61

MTD 747-04093A

Brake Lock Control Rod

$

$

Not available

62

MTD 747-04096

Cruise Control Rod

$15.99

$

Usually ships in 3-6 days

0

63

MTD 747-04641A

Brake Pedal
(Superseded to 747-04641A-0637)

Variations

MTD 747-04641A-0637

PEDAL-BRAKE - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

64

MTD 748-04039C

Cruise Latch

$

$

Not available

65

MTD 783-04612

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

MTD 783-04612-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

66

MTD 783-0663E

Drive Lockout Bracket

$17.99

$

Usually ships in 3-6 days

0

67

MTD 710-0224

AB Screw, #10-16 x.500
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

68

MTD 17962

Switch Plate

$4.99

$

In Stock, only 3 left!

0

69

MTD 725-04039

Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

70

MTD 712-3050

Lug Nut, 3/4-16

$9.99

$

In Stock, Qty 5

0

71

MTD 634-0202A

Wheel Assembly, 23 x 10.5 x 12

Variations

MTD 634-0202A-0991

WHEEL ASM-COMPLETE - Carlisle White (0991)

$344.99

$

Usually ships in 3-6 days

0

MTD 634-0202A-4009

WHEEL ASM-COMPLETE - TEE WHITE (4009)

$344.99

$

Usually ships in 3-6 days

0

MTD 634-0202A-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$323.99

$

Usually ships in 3-6 days

0

MTD 634-0202A-0914

WHEEL ASM-COMPLETE - Cheng Gray (0914)

$323.99

$

Usually ships in 3-6 days

0

MTD 634-0202A-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$370.99

$

Usually ships in 3-6 days

0

MTD 634-0202A-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$323.99

$

Usually ships in 3-6 days

0

$323.99

$

Usually ships in 3-6 days

0

71

MTD 634-04238

Rim Only 12.0 x 7.0
(Superseded to 753-10244)

Note: Not shown

Variations

MTD 634-04238-0499

Rim Assembly, 12.0 X 7.0 - CUB BEIGE (0499)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-04238-0662

RIM ASM:12.0 X 7.0 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-04238-0674

RIM ASM:12.0 X 7.0 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-04238-0688

RIM ASM:12.0 X 7.0 - SPRING GREEN (0688)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-04238-4028

RIM ASM:12.0 X 7. - SEARS YELLOW (4028)

$172.99

$

Usually ships in 3-6 days

0

MTD 634-04238-4009

RIM ASM - TEE WHITE (4009)

$197.99

$

Usually ships in 3-6 days

0

MTD 634-04238-4042

RIM ASM - CRAFTSMAN GRAY (4042)

$197.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

71

MTD 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

71

MTD 734-04147

Tire Only 23 x 10.5 x 12 Sq. Shldr.
(Superseded to 734-04147-0901)

Note: Not shown

Variations

MTD 734-04147-0901

TIRE:23.0 X 10.5 X - Carlisle (0901)

$120.99

$

Usually ships in 3-6 days

0

$120.99

$

Usually ships in 3-6 days

0
