14AA80TP766 - Troy-Bilt Big Red Horse Garden Tractor (2007) Seat, Deck Lift Parts Diagram

Big Red Horse Garden Tractor

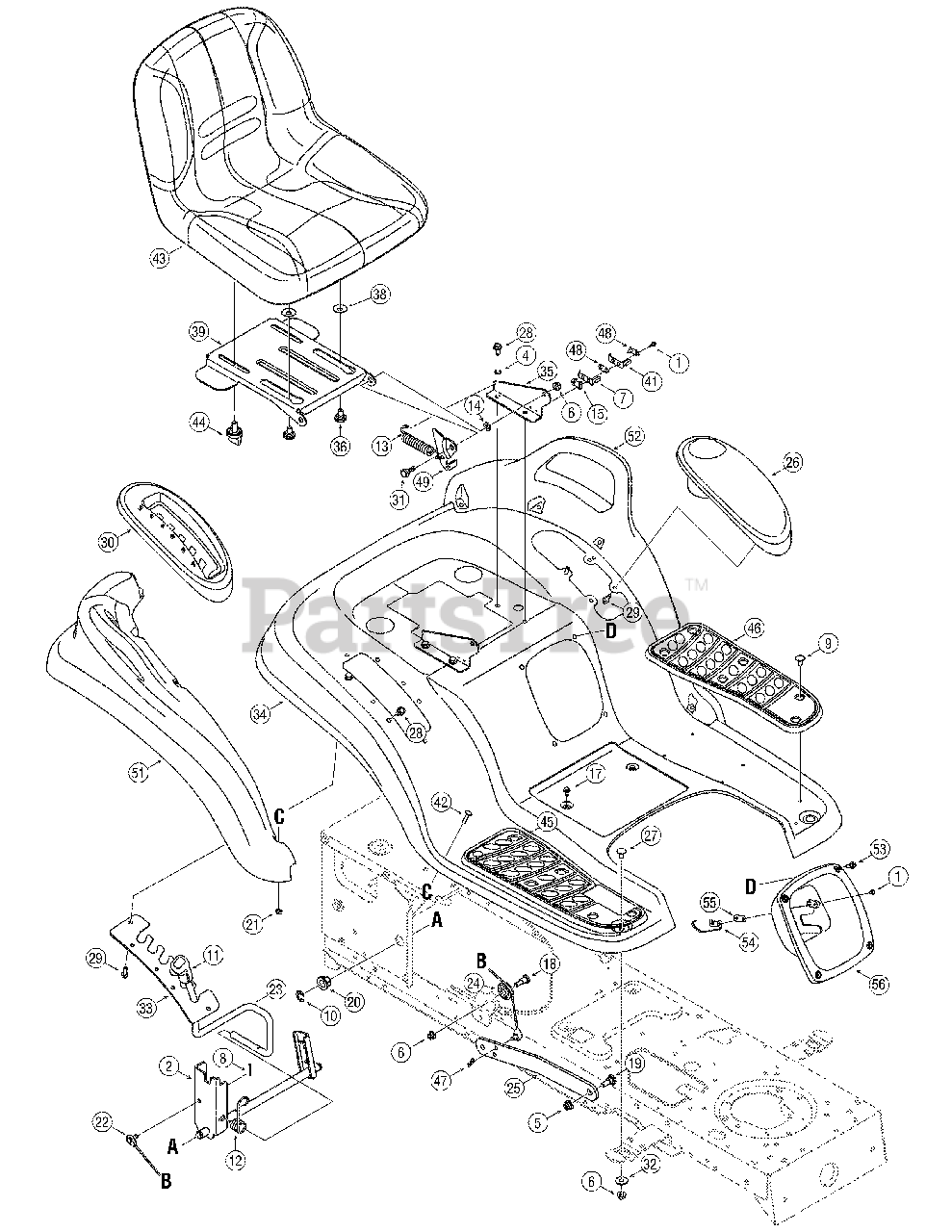

Seat, Deck Lift Parts Diagram

  • Title
1

Troy-Bilt 710-0227

Screw, #8-18 x.500

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 683-04223

Lift Shaft Assembly
(Superseded to 683-04223-0637)

Variations

Troy-Bilt 683-04223-0637

Lift Shaft Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

3

Troy-Bilt 736-0204

Washer, Flat, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 725-1439

Inner Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

8

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 726-3046

Foot Pad Clips

$3.99

$

In Stock, Qty 16

0

$5.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

Troy-Bilt 732-1184

Extension Spring,.84 x 4.6

$11.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 736-0242

Flat Washer

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

16

Troy-Bilt 736-3019

Flat Washer,.31 x 1.062 x.134

$5.99

$

In Stock, Qty 11

0

17

Troy-Bilt 710-0599

Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 738-0138A

Hex Cap Screw, 5/16-18 x.62

$6.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 738-0380

Shoulder Screw, 3/8-16

$7.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-0271

Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 747-04447

Lift Handle

$44.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 783-05546

Arm Lift
(Superseded to 783-05546A-0637)

Variations

Troy-Bilt 783-05546-0637

Lift Link - POWDER BLACK (0637)

$20.99

$

In Stock, only 2 left!

0

$20.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 731-1993A

Cover w/ Cup Holder

$25.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 x.750

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 738-0296

Shoulder Screw,.437 x.286

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-3078

Flat Washer,.349 x 1.0 x.063

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 783-0677B

Lift Adjustment Bracket

Variations

Troy-Bilt 783-0677B-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0677B-4008

BRACKET:LIFT:ADJ - WINE RED (4008)

$

$

Not available

Troy-Bilt 783-0677B-4015

BRACKET:LIFT:ADJ - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 783-04331A

Fender 4 Style 2-Speed

Variations

Troy-Bilt 783-04331A-0638

FENDER-4 STY 2 STY - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-04331A-0665

FENDER-4 STY,2 SPD - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-04331A-4008

FENDER-4 STY 2 STY - WINE RED (4008)

$

$

Not available

$

$

35

Troy-Bilt 783-1489C

Seat Mounting Bracket

Variations

Troy-Bilt 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$23.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 738-04012A

Shoulder Screw, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

37

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-0300

Flat Washer,.406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 783-04081B

Seat Pivot Bracket

Variations

Troy-Bilt 783-04081B-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04081B-4008

Seat Pivot Bracket - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 732-0499

Compression Spring,.41 x 1.5

$9.49

$

In Stock, only 1 left!

0

41

Troy-Bilt 725-1303

Outer Seat Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

42

Troy-Bilt 710-0932

Carriage Screw 1/4-20 x 1.00
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

43

Troy-Bilt 757-04003A

High Back Seat, Black

$

$

Not available

44

Troy-Bilt 720-04061

Adjustment Knob, 3/8-16 x .875

$5.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

48

Troy-Bilt 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

49

Troy-Bilt 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 726-0201

Speed Clip

$6.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 731-2618

RH Fender Flare

$

$

Not available

52

Troy-Bilt 731-2619

LH Fender Flare

$80.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 710-0642

Screw, 1/4-20 x.750

$4.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 725-1713

Spring Switch

$12.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 726-0320

Insulator Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

56

Troy-Bilt 731-2480A

Shift Cover

$43.99

$

Usually ships in 3-6 days

0
