14AA80TP766 - Troy-Bilt Big Red Horse Garden Tractor (2007) Hood Assembly Parts Diagram

Big Red Horse Garden Tractor

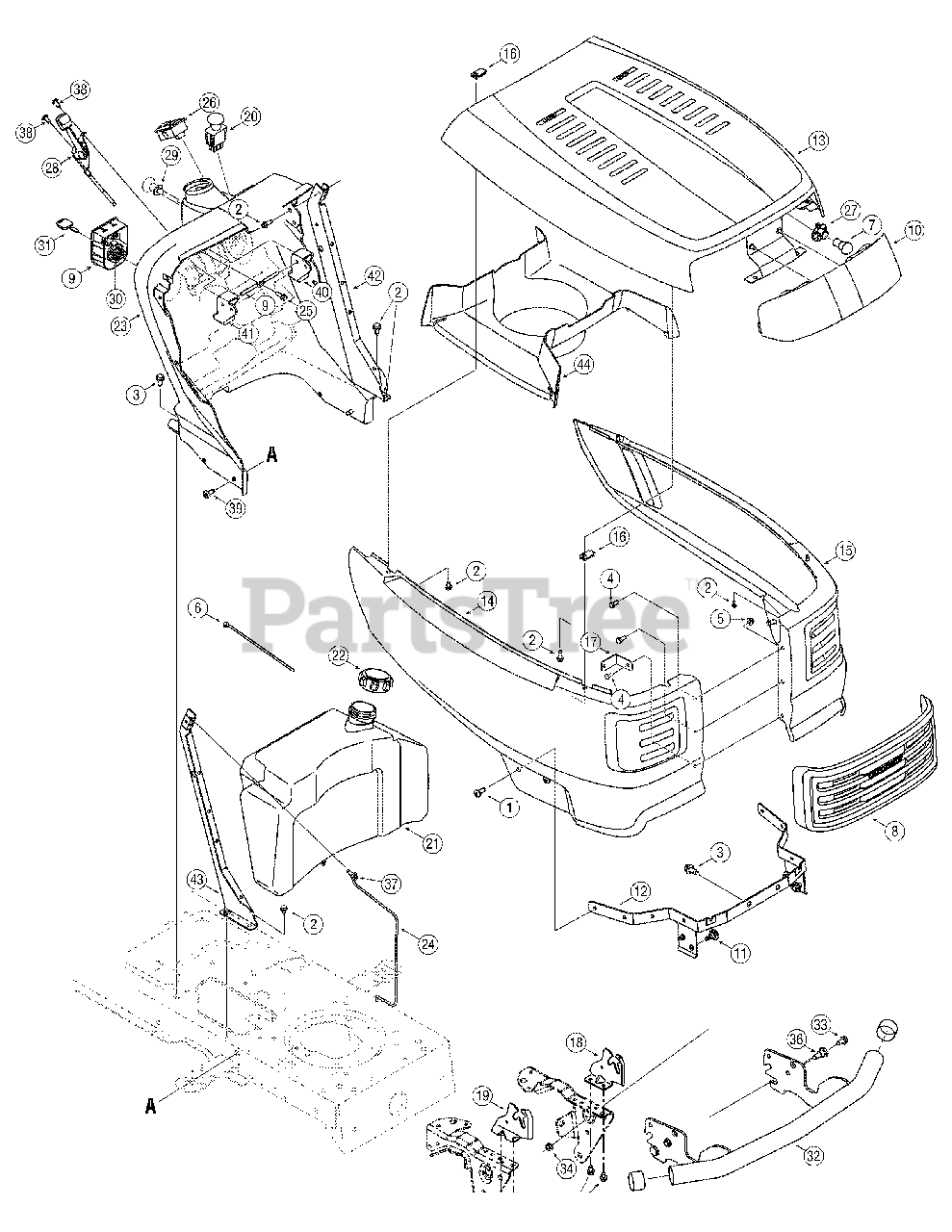

Hood Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04593

Screw, 5/16-18, .375

$4.49

$

In Stock, only 3 left!

0

2

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0607

Screw, 5/16-18, 0.500

$6.99

$

In Stock, Qty 11

0

4

Troy-Bilt 710-0751

Screw, 1/4-20, 0.620

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 731-05745

Troy-Bilt Grill Insert

$

$

Not available

9

Troy-Bilt 747-1196

Bent Lever Rod

$15.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-05357

Troy-Bilt Lens
(Superseded to 931-05357)

$

$

Not available

11

Troy-Bilt 738-04091

Screw, Shldr, .43 x .29, 5/16-18
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 783-04606B

Pivot Bracket
(Superseded to 783-04606C)

Variations

Troy-Bilt 783-04606B-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04606B-0638

BRACKET-PIVOT HOOD - MTD/TROY-BILT RED (0638)

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04606B-0716

BRACKET-PIVOT HOOD - CUB YELLOW-99 (0716)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04606B-4008

BRACKET-PIVOT HOOD - WINE RED (4008)

$42.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-04827

Troy-Bilt Hood

Variations

Troy-Bilt 783-04827-0662

HOOD - OYSTER GRAY (0662)

$198.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04827-0638

HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$173.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-04828

Troy-Bilt Side Panel, RH

Variations

Troy-Bilt 783-04828-0638

PANEL:SIDE:TROY RH - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04828-0662

PANEL:SIDE:TROY RH - OYSTER GRAY (0662)

$101.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 783-04829

Troy-Bilt Side Panel, LH

Variations

Troy-Bilt 783-04829-0638

PANEL:SIDE:TROY BI - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

16

Troy-Bilt 783-05223

T-Style Hood Fastener

$4.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 783-05315

Front Hood Bracket
(Superseded to 783-05315-0637)

Variations

Troy-Bilt 783-05315-0637

BRACKET-HOOD:FRONT - POWDER BLACK (0637)

$4.99

$

Usually ships in 3-6 days

0

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 783-04841

Hood Pivot Bracket, LH

Variations

Troy-Bilt 783-04841-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04841-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$17.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04841-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 783-04840

Hood Pivot Bracket, RH

Variations

Troy-Bilt 783-04840-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$19.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04840-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04840-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$19.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 725-04174

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 751-10283A

Fuel Tank, 3 gal. TB
(Superseded to 751-10283B)

$175.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 731-05005B

Dash Panel
(Superseded to 731-06169)

$

$

Not available

24

Troy-Bilt 747-04161

Gas Tank Support Rod

$

$

Not available

25

Troy-Bilt 710-0895

Screw, 1/4-15, .750

$6.49

$

Usually ships in 3-6 days

0

26

Troy-Bilt 725-04036C

Hour Meter Indicator
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 725-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 746-04365

Throttle Control, 39.0 Lg.
(Superseded to 746P04365)

$42.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 746-04132

Choke Control
(Superseded to 946-04132)

$35.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 725-04227B

Module, Ignition Switch
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 725-1744

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 725-1745

Key w/ Plastic Grip
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 683-04219A

Bumper Assembly
(Superseded to 683-04219B-0637)

Variations

Troy-Bilt 683-04219A-0637

Bumper Assembly, Universal - POWDER BLACK (0637)

$60.99

$

In Stock, only 2 left!

0

$60.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 710-0726

Screw, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 731-05674

Bumper Cap

$5.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 738-0143

Shoulder Bolt, 3/8-16

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 710-0642

Screw, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 710-1017

Screw, 1/4-14, 0.625

$8.49

$

In Stock, Qty 9

0

39

Troy-Bilt 710-1611B

Screw, 5/16-18, 0.750

$6.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 731-04728

Dash Brake Lever

$

$

Not available

41

Troy-Bilt 731-04729

Dash Cruise Lever

$

$

Not available

42

Troy-Bilt 783-04323D

Dash Support, LH
(Superseded to 783-04323F-0637)

Variations

Troy-Bilt 783-04323D-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04323D-4008

SUPPORT DASH - WINE RED (4008)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 783-04285E

Dash Support, RH
(Superseded to 783-04285F-0637)

Variations

Troy-Bilt 783-04285E-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

44

Troy-Bilt 731-05979

Plenum, Hood

$

$

Not available

Troy-Bilt 725-04404

Wire Harness
(Superseded to 925-04404A)

Note: Not shown

$240.99

$

Usually ships in 3-6 days

0

Troy-Bilt 629-04083A

Headlight Wire Harness
(Superseded to 929-04083B)

Note: Not shown

$39.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777X42316

Headlight Lens Reflector Center

Note: Not shown

$

$

Not available

Troy-Bilt 777X42188

Headlight Lens Reflector RH

Note: Not shown

$9.49

$

In Stock, only 1 left!

0

Troy-Bilt 777X42187

Headlight Lens Reflector LH

Note: Not shown

$

$

Not available
