14AA80TP711 - Troy-Bilt Big Red Horse Garden Tractor (2007) Transmission Parts Diagram

Big Red Horse Garden Tractor

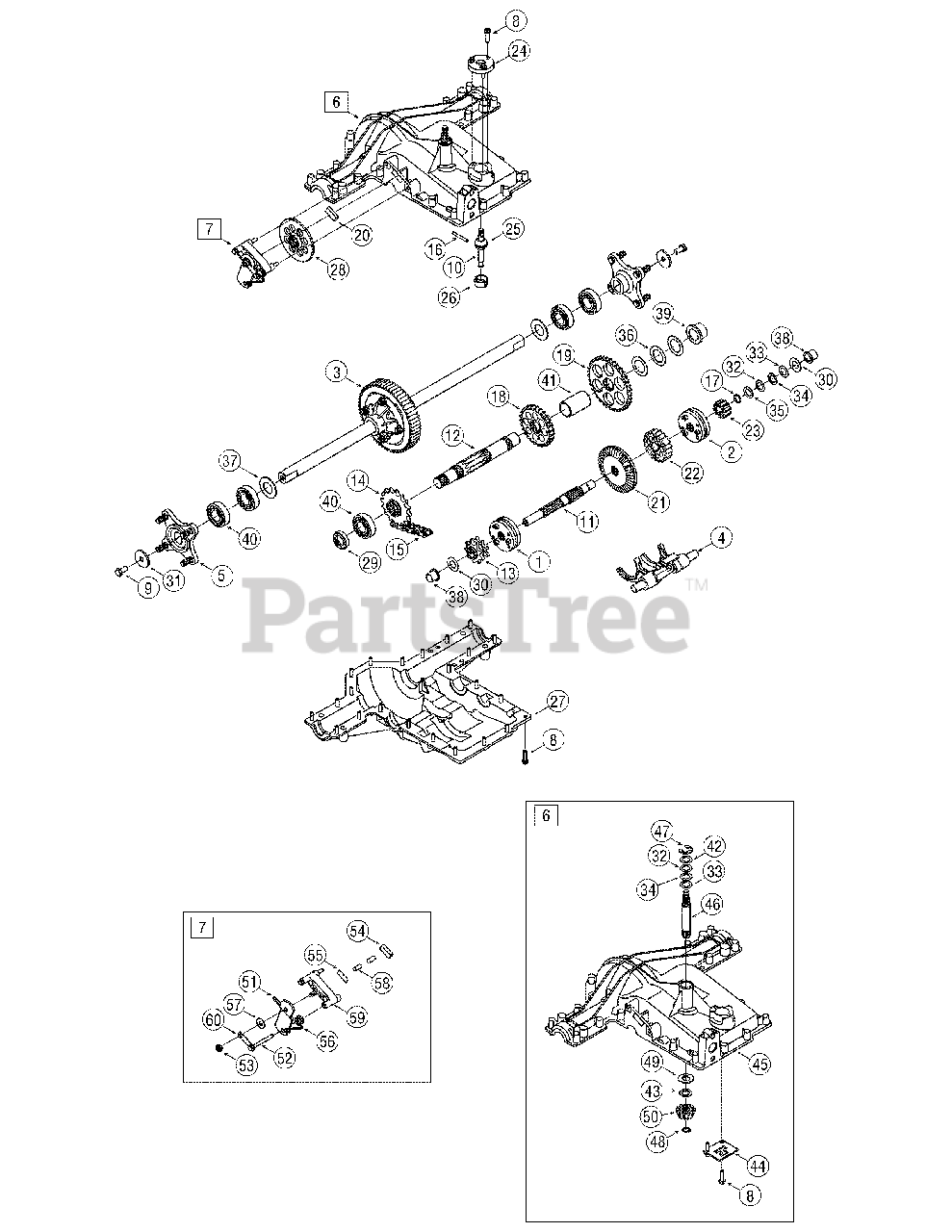

Transmission Parts Diagram

  • Title

1

Troy-Bilt 618-0225

Reverse Collar Assembly

$

$

Not available

2

Troy-Bilt 618-0226

Hi-Lo Collar Assembly

$125.99

$

Usually ships in 3-6 days

0

3

MTD 918-04142

Differential Axle Assembly

$

$

Not available

4

Troy-Bilt 918-04156

Shift Fork Assembly

$168.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 918-04317

Wheel Hub Assembly

$116.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 619-04081

Upper Housing
(Superseded to 919-04081)

$

$

Not available

7

Troy-Bilt 961-0012

Brake Assembly

$

$

Not available

8

Troy-Bilt 710-0788

Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

9

Troy-Bilt 710-3119

Lock bolt 3/8-16 x 0.75

$6.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 711-04215

Shift lever
(Superseded to 747-1140)

$56.99

$

In Stock, only 2 left!

0

11

MTD 711-1051A

Drive Shaft

$

$

Not available

12

Troy-Bilt 711-1216

Output Shaft

$160.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 913-0446

9-tooth Sprocket

$

$

Not available

14

MTD 913-0447

16-tooth Sprocket

$

$

Not available

15

Troy-Bilt 913-0448

22-link Chain,.625

$

$

Not available

16

Troy-Bilt 715-04017A

Dowel Pin
(Superseded to 747-1140)

$56.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 916-0131

External Snap Ring

$7.49

$

In Stock, only 1 left!

0

18

Troy-Bilt 717-04109

27-tooth Spur Gear

$

$

Not available

19

Troy-Bilt 717-04110

37-tooth Spur Gear

$

$

Not available

20

Troy-Bilt 917-0678

Brake Pad

$7.49

$

In Stock, Qty 5

0

21

Troy-Bilt 917-1438A

41-tooth Bevel Gear

$

$

Not available

22

Troy-Bilt 917-1439A

20-tooth Spur Gear

$

$

Not available

23

Troy-Bilt 717-1440

10-tooth Spur Gear

$

$

Not available

24

Troy-Bilt 718-04053

Shift Cover
(Superseded to 918-04053)

$

$

Not available

25

Troy-Bilt 718-04066

Spherical Bearing
(Superseded to 747-1140)

$56.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 718-0504

Shifter Insert

$4.99

$

Usually ships in 3-6 days

0

27

MTD 719-04083

Lower Transmission Housing

$

$

Not available

28

Troy-Bilt 761-0215

Disc Brake

$20.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 721-04031

Oil Seal
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 736-0167

Washer, Flat, .656 X 1.25 X .02
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 7

0

31

Troy-Bilt 936-0227

Flat Washer
(Superseded to 736-0227)

$

$

Not available

32

Troy-Bilt 936-0336

Flat Washer, 5/8 x 1.0 x.030*

$4.49

$

In Stock, Qty 7

0

33

Troy-Bilt 936-0337

Flat Washer, 5/8 x 1.0 x.040*

$4.49

$

In Stock, Qty 9

0

34

Troy-Bilt 936-0349

Flat Washer, 5/8 x 1.0 x.020*

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 736-0494

Flat Washer, .632 X 1.00 X .035

$4.99

$

In Stock, only 4 left!

0

36

MTD 736-0715

Flat Washer, 1.12 X 1.75 X .03

$

$

Not available

37

Troy-Bilt 736-0745

Flat Washer, 1.010 X 1.56 X .060

$12.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 741-04085

Flanged Bearing

$

$

Not available

39

Troy-Bilt 741-04086

Flanged Bearing

$

$

Not available

40

Troy-Bilt 741-0681

Ball Bearing

$

$

Not available

41

Troy-Bilt 750-04244

Spacer

$

$

Not available

42

Troy-Bilt 736-0495

Thrust Washer, 1.00 X .632

$4.49

$

In Stock, only 3 left!

0

43

Troy-Bilt 736-0494

Flat Washer, .632 X 1.00 X .035

$4.99

$

In Stock, only 4 left!

0

44

Troy-Bilt 718-0540

Lockout Plate

$

$

Not available

45

Troy-Bilt 618-04264

Upper Housing

$

$

Currently unavailable

46

Troy-Bilt 711-1235

Input Shaft

$

$

Not available

47

Troy-Bilt 716-0231

E-Ring

$3.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 716-0114

Retainer Ring
(Superseded to 916-0114)

$6.99

$

In Stock, only 3 left!

0

49

Troy-Bilt 736-0335

Thrust Washer, .635 X 1.26 X.06

$6.99

$

In Stock, Qty 9

0

50

Troy-Bilt 717-1463A

13-tooth Bevel Gear

$

$

Not available

51

Troy-Bilt 761-0212

Brake Arm Actuator

$

$

Currently unavailable

52

Troy-Bilt 710-1206

Screw, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

53

Troy-Bilt 712-0273

Hex Lock Nut, 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 717-0678

Brake Pad
(Superseded to 917-0678)

$7.49

$

In Stock, Qty 5

0

55

Troy-Bilt 717-0682

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 9

0

56

Troy-Bilt 732-0925

Torsion Spring, .75 x 3 coils

$9.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 736-0371

Flat Washer, .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

58

Troy-Bilt 741-0343

Actuating Pin 5/16 dia.

$10.99

$

In Stock, Qty 7

0

59

Troy-Bilt 761-0207A

Brake Yoke

$40.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 761-0208

Anti-Rotation Brake Bracket

$7.49

$

Usually ships in 3-6 days

0
