14AA80TP711 - Troy-Bilt Big Red Horse Garden Tractor (2007) Engine Accessories Parts Diagram

Big Red Horse Garden Tractor

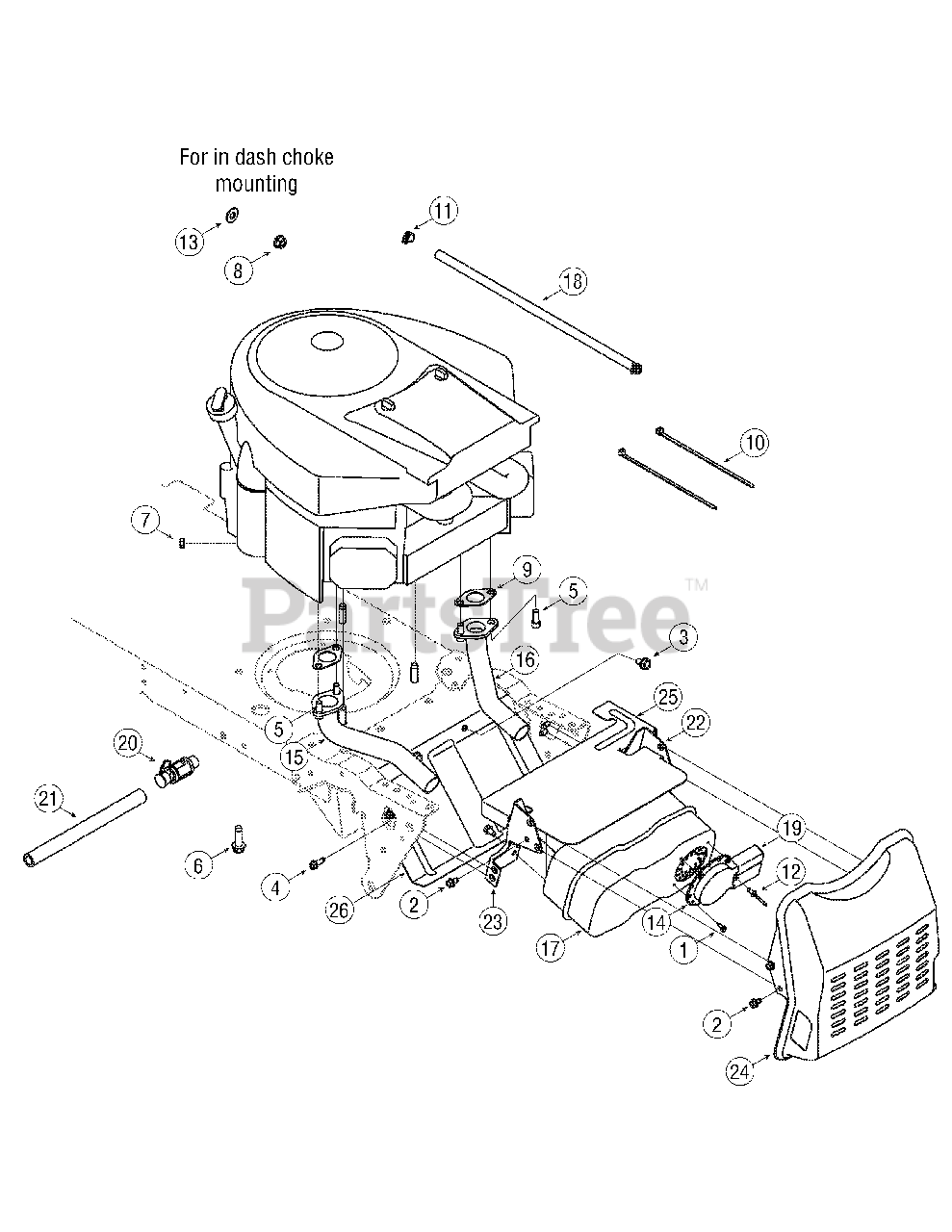

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0604A

TT Screw 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0642

TT Screw 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-1314A

Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-3005

Flange Lock Nut, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 728-04000

Pop Rivet

$6.99

$

In Stock, Qty 7

0

13

Troy-Bilt 736-0300

Flat Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 751-10004

RH Exhaust Pipe

$

$

Not available

16

Troy-Bilt 751-10005

LH Exhaust Pipe

$

$

Not available

17

Troy-Bilt 751-10161

Dual Inlet Muffler
(Superseded to 951-10161)

$86.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

19

Troy-Bilt 751-10353

Muffler Deflector, Long
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 751-10517

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 751-3141

OIl Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

22

Troy-Bilt 783-04573

Muffler Bracket, LH

Variations

Troy-Bilt 783-04573-0637

Muffler Bracket, LH - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-04573-4008

BRACKET:MFLR:LH - WINE RED (4008)

$6.49

$

In Stock, only 1 left!

0

$18.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 783-04574

Muffler Bracket, RH

Variations

Troy-Bilt 783-04574-0637

Muffler Bracket, RH - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-04574-4008

BRACKET:MFLR:RH - WINE RED (4008)

$

$

Not available

$

$

24

Troy-Bilt 783-04576B

Muffler Shield
(Superseded to 983-04576B-0637)

Variations

Troy-Bilt 783-04576B-0637

SHIELD-MUFFLER - POWDER BLACK (0637)

$57.99

$

In Stock, only 1 left!

0

$57.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 783-04783A

Heat Shield, Twin

$

$

Not available

26

Troy-Bilt 783-05410

Muffler Heat Shield

$16.99

$

Usually ships in 3-6 days

0
