14A-999-401 - Yard-Man Garden Tractor (1997) Seat/Fender/Hood/Grille/Side Panels Parts Diagram

Garden Tractor

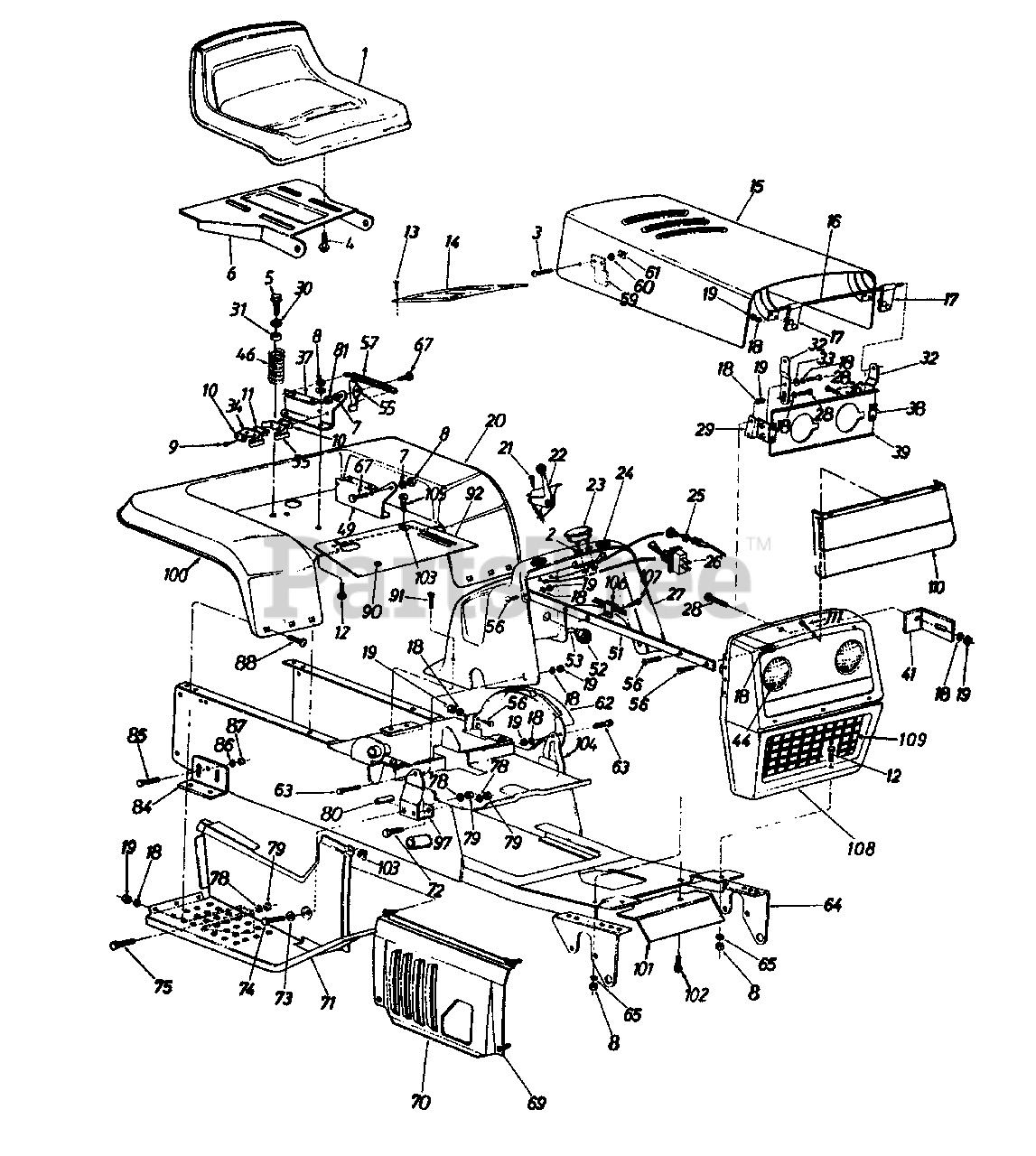

Seat/Fender/Hood/Grille/Side Panels Parts Diagram

  • Title

1

MTD 757-0372

Seat Assembly (Yellow)
(Superseded to 957-0350)

$588.99

$

Usually ships in 3-6 days

0

2

MTD 736-0722

Lock Washer 190" I.D.

$6.99

$

Usually ships in 3-6 days

0

3

MTD 710-0192

Truss Hd. Mach. Scr. #10-24 x .38"

$3.99

$

In Stock, Qty 12

0

4

MTD 710-0623

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" 5

$4.49

$

In Stock, only 2 left!

0

5

UNKNOWN

$

$

Not available

6

MTD 783-0039A

Seat Pivot Bracket

Note: New Part

Variations

MTD 783-0039A-0637

Seat Pivot Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0638

Seat Pivot Bracket, Black - MTD/TROY-BILT RED (0638)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0648

Seat Pivot Bracket, Black - TECH GRAY (0648)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0662

Seat Pivot Bracket, Black - OYSTER GRAY (0662)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0665

Seat Pivot Bracket, Black - YARDMAN GREEN (0665)

$71.99

$

Usually ships in 3-6 days

0

MTD 783-0039A-0667

Seat Pivot Bracket, Black - MIDNIGHT BLUE (0667)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

7

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

MTD 712-3010

Hex Nut 5/16-18 Thd. Grade 5

Note: New Part

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0227

Hex Wash, Hd. AB-Tap Scr. #8 x .5"

$4.49

$

In Stock, Qty 15

0

10

MTD 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

11

MTD 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

12

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0697

Self-Tap Oval Hd. Scr. 1/2" Lg.

$

$

Not available

14

MTD 731-0384

Dash Panel Cover

$

$

Not available

15

MTD 13472A

Hood Assembly

Variations

MTD 13472A-0638

No Longer Available HOOD ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 13472A-0648

No Longer Available HOOD ASM - TECH GRAY (0648)

$

$

Not available

MTD 13472A-0662

No Longer Available HOOD ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 13472A-0674

No Longer Available HOOD ASM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

16

MTD 747-0231

Hinge Rod

$

$

Not available

17

MTD 13581

Hood Hinge Assembly

$

$

Not available

18

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

19

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

20

MTD 783-0140

Fender w/Taillight Hole

Variations

MTD 783-0140-0480

No Longer Available FENDER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0140-0483

No Longer Available FENDER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0140-0629

No Longer Available FENDER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0140-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0140-0648

Fender w/Taillight Hole - TECH GRAY (0648)

$

$

Not available

MTD 783-0140-0662

No Longer Available FENDER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0140-0665

No Longer Available FENDER - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

MTD 710-0841

Flat C-Sunk Hd. Tap Scr.

$4.49

$

Usually ships in 3-6 days

0

22

MTD 746-0915

Throttle Control

$

$

Not available

23

MTD 725-3141

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

24

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

25

MTD 746-0914

Choke Control

$

$

Not available

26

MTD 725-0646

Light Switch
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

27

MTD 731-1903

Dash Panel

Note: New Part

$

$

Not available

28

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

29

MTD 13689

Hood Support Brkt. Assembly.-R.H.

$

$

Not available

30

MTD 736-0159

Fl-Wash, .344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

31

MTD 722-0160

Bushing

$

$

Not available

32

MTD 13585

Hinge Rod Support

Variations

MTD 13585-0637

No Longer Available SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 736-0211

Fl-Wash. .250" I.D. x 1.25" O.D.

$6.99

$

In Stock, Qty 7

0

34

MTD 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

35

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 8

0

36

MTD 710-0294

Hex Bolt 1/4-20 x .38" Lg.

$3.49

$

Usually ships in 3-6 days

0

37

MTD 17950

Seat Pivot Support Brkt.-R.H.
(Superseded to 17950A-0637)

Variations

MTD 17950-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

38

MTD 13690

Hood Support Brkt. Assembly-L.H.

$

$

Not available

39

MTD 13687

Head Lamp Retainer

Variations

MTD 13687-0637

No Longer Available RETAINER-H - POWDER BLACK (0637)

$

$

Not available

$

$

?40

MTD 722-0136

Foam Strip

$

$

Not available

41

MTD 13724

Heat Shield Brkt.

$

$

Currently unavailable

44

MTD 725-0222

Head Lamp
(Superseded to 925-0222)

$58.99

$

In Stock, Qty 5

0

46

MTD 732-3075

Compression Spring 4.5" Lg.

$

$

Not available

?48

MTD 783-0110

Heat Shield

Variations

MTD 783-0110-0637

No Longer Available SHIELD-HEA - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 17951

Seat Pivot Support Brkt.-L.H.
(Superseded to 17951A-0637)

Variations

MTD 17951-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

?50

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .75"

$4.49

$

Usually ships in 3-6 days

0

51

MTD 13725A

Grille Strap

Variations

MTD 13725A-0637

No Longer Available STRAP-GRIL - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

53

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

55

MTD 17239A

Seat Lift Bracket
(Superseded to 17239C)

$

$

Not available

56

MTD 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

57

MTD 732-0581B

Extension Spring 5.31" Lg.
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

59

MTD 732-0391

Hood Spring

$

$

Not available

60

MTD 736-0722

L-Wash. #10

$6.99

$

Usually ships in 3-6 days

0

61

MTD 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

62

MTD 13528B

Speed Control Guide

Note: New Part

Variations

MTD 13528B-0637

No Longer Available GUIDE-SPEE - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

64

MTD 13509D

Frame Assembly

Variations

MTD 13509D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13509D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 13509D-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 13509D-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

UNKNOWN

$

$

Not available

?66

MTD 736-3081

Flat Washer .32 I.D. x .60 O.D. Sp.

Note: New Part

$3.99

$

In Stock, only 2 left!

0

67

MTD 738-0296

Shld. Bolt .437" Dia. x .268"

$4.49

$

In Stock, Qty 20+

0

69

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

70

MTD 783-0108

Side Panel-R.H.

Variations

MTD 783-0108-0483

No Longer Available PANEL-SIDE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0108-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0108-0648

Side Panel - R.H. - TECH GRAY (0648)

$

$

Not available

MTD 783-0108-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0108-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

MTD 783-0109A

Side Panel-L.H.

Note: (Not Shown)

Variations

MTD 783-0109A-0648

Side Panel - L.H. - TECH GRAY (0648)

$

$

Not available

MTD 783-0109A-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0109A-0665

No Longer Available PANEL-SIDE - YARDMAN GREEN (0665)

$

$

Not available

$

$

71

MTD 683-0074

Foot Step Panel Assembly-R.H.

Variations

MTD 683-0074-0637

No Longer Available PANEL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 683-0074-0638

No Longer Available PANEL ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0074-0648

Foot Step Panel Ass'y. - R.H. - TECH GRAY (0648)

$

$

Not available

$

$

MTD 683-0073

Foot Step Panel Assembly-L.H.

Note: (Not Shown)

Variations

MTD 683-0073-0648

Foot Step Panel Ass'y. - L.H. - TECH GRAY (0648)

$

$

Not available

MTD 683-0073-0665

No Longer Available PANEL ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

72

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

73

MTD 736-0117

Fl-Wash. .385" I.D. x .62" O.D.
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

74

MTD 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

$

$

Not available

75

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg. Grade 5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

?76

MTD 723-3045

Snap Bushing

$

$

Not available

78

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

79

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

80

MTD 750-0261

Spacer .375" I.D. x .62" O.D. x 2"

$

$

Not available

81

MTD 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

84

MTD 13066

Transaxle Support Brkt.

$

$

Not available

85

MTD 710-0617

Rd. Hd. Rib Neck Scr. 3/8-24

$4.49

$

Usually ships in 3-6 days

0

86

MTD 736-0217

L-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 9

0

87

MTD 712-0328

Hex Nut 3/8-24 Thd. (Gr. 5)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

88

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

90

MTD 731-0405

Snap Bushing

$

$

Not available

91

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

92

MTD 13529

Transmission Cover

Variations

MTD 13529-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13529-0637

No Longer Available COVER-CONT - POWDER BLACK (0637)

$

$

Not available

MTD 13529-0648

No Longer Available COVER-CONT - TECH GRAY (0648)

$

$

Not available

MTD 13529-0665

No Longer Available COVER-CONT - YARDMAN GREEN (0665)

$

$

Not available

$

$

97

MTD 13536

Dash Panel Mtg. Brkt.-R.H.

Variations

MTD 13536-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

100

MTD 731-0511-84

Trim Strip 84" Lg.

$103.99

$

Usually ships in 3-6 days

0

101

MTD 783-0113

Dust Shield

Variations

MTD 783-0113-0648

No Longer Available SHIELD-DUS - TECH GRAY (0648)

$

$

Not available

$

$

102

MTD 710-0502A

Hex L-Wash. TT-Tap Scr. 3/8-16 Thd.

$6.99

$

In Stock, only 2 left!

0

103

MTD 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

104

MTD 683-0023

Dash Panel Mtg. Brkt.-L.H.

$

$

Not available

105

MTD 710-0473

Truss Mach. Scr. #10-24 x .5"

$4.49

$

In Stock, only 2 left!

0

106

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

107

MTD 710-0607

Self-Tap Scr. 5/16 x .5" Lg.

$6.99

$

In Stock, Qty 12

0

108

MTD 14042

Grille (Yard-Man)

Variations

MTD 14042-0674

No Longer Available GRILLE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

109

MTD 731-0881

Grille Insert

$

$

Not available

110

MTD 731-1498

Headlight Bezel

$

$

Not available

111

MTD 710-0227

Hex Washer Head Screw #8 x .5"

$4.49

$

In Stock, Qty 15

0
