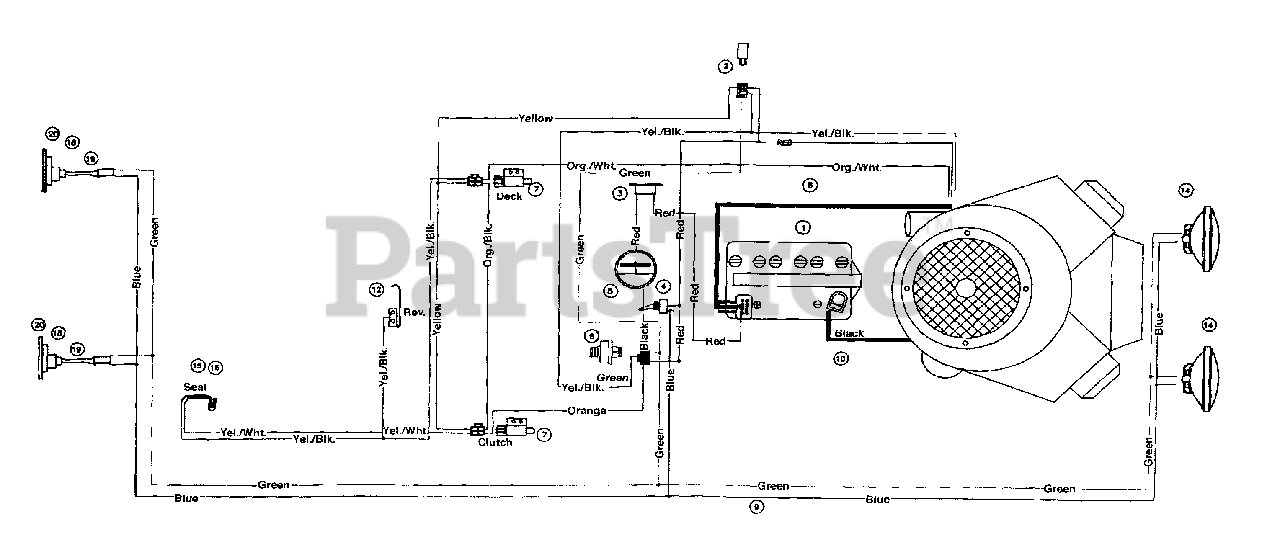

14A-999-401 - Yard-Man Garden Tractor (1997) Electrical/Switches Parts Diagram

Garden Tractor

Electrical/Switches Parts Diagram

  • Title

1

MTD 725-0453E

Battery

Note: New Part

$

$

Not available

2

MTD 725-1648

Bosch Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 7

0

3

UNKNOWN

$

$

Not available

4

UNKNOWN

$

$

Not available

5

MTD 725-3141

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

6

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

7

MTD 725-1657A

Interlock Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

8

MTD 725-0562

Wire 6 Gage Red 32.5" Lg.
(Superseded to 629-0740)

$20.99

$

Usually ships in 3-6 days

0

9

MTD 629-0259

Harness
(Superseded to 929-0259)

$

$

Not available

10

UNKNOWN

$

$

Not available

12

MTD 725-1644

Reverse Safety Switch

$9.99

$

In Stock, Qty 11

0

14

MTD 725-0222

Bulb, Headlight
(Superseded to 925-0222)

$58.99

$

In Stock, only 4 left!

0

15

MTD 725-1303

Seat Safety Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

?16

MTD 725-1439

Seat Safety Switch

$8.49

$

In Stock, Qty 10

0

18

MTD 725-0612

Tail Light

$

$

Not available

19

MTD 725-1380

Tail Light Harness

$

$

Not available

20

MTD 725-3020

Bulb, Tail Light

$

$

Not available
