149 R (126-149D100) - Cub Cadet Walk-Behind Mower Engine (1996) Cylinder And Air Cleaner Assemblies Parts Diagram

Walk-Behind Mower Engine

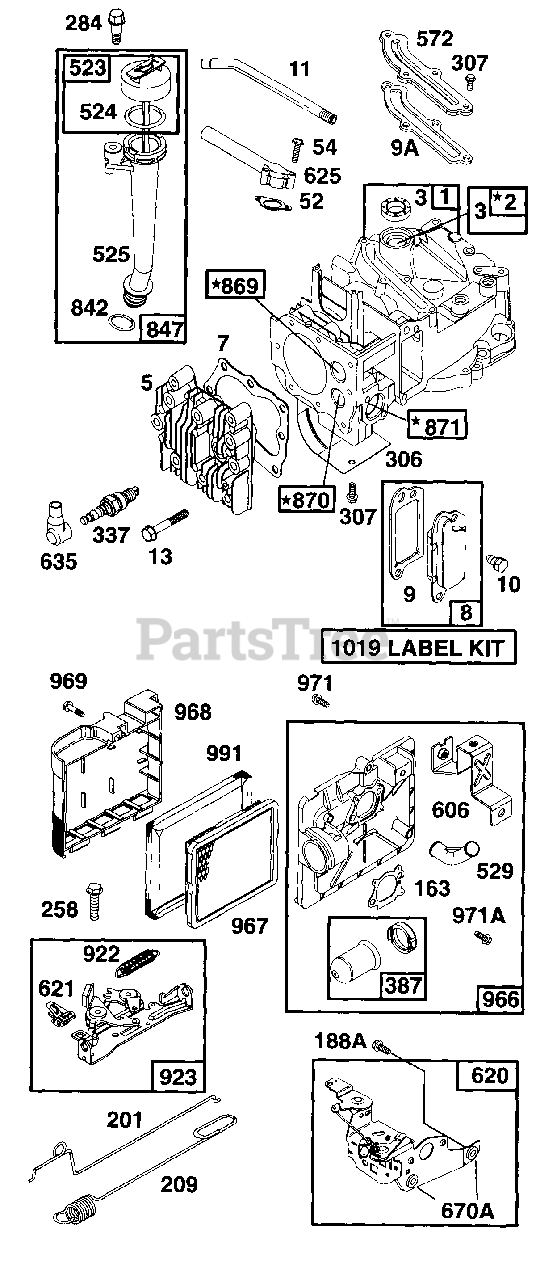

Cylinder And Air Cleaner Assemblies Parts Diagram

  • Title

1

Cub Cadet BS-494062

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399269

Bushing

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

Note: Included in Gasket Set - Part No. BS-496117.

$5.49

$

In Stock, Qty 13

0

5

Cub Cadet BS-214368

Head-Cylinder
(Superseded to BS-691160)

$55.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-272916

Gasket-Cylinder Hd.
(Superseded to BS-692249)

Note: Included in Gasket Set - Part No. BS-496117.

$8.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-272481

Gasket-Breather
(Superseded to BS-699833)

Note: Included in Gasket Set - Part No. BS-496117.

$5.49

$

In Stock, only 1 left!

0

9A

Cub Cadet BS-272238

Gasket-Baffle Plate
(Superseded to BS-691879)

Note: Included in Gasket Set - Part No. BS-496117.

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94650

Screw-Breather Mtg.

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-231933

Tube-Breather
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-94547

Screw-Cylinder Hd.
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 19

0

52

Cub Cadet BS-272199

Gasket-Intake
(Superseded to BS-272199S)

Note: Included in Gasket Set - Part No. BS-496117.

$4.99

$

In Stock, only 1 left!

0

54

Cub Cadet BS-94526

Screw-Intake Elbow Mounting
(Superseded to BS-691650)

$2.99

$

Usually ships in 2-12 days

0

163

Cub Cadet BS-272653

Gasket-Air Cleaner
(Superseded to BS-795629)

Note: Included in Gasket Set - Part No. BS-496117.

$3.49

$

In Stock, Qty 20+

0

188A

Cub Cadet BS-94644

Screw-Hex. Hd.
(Superseded to BS-690877)

$3.99

$

In Stock, only 3 left!

0

201

Cub Cadet BS-262579

Link-Governor
(Superseded to BS-691829)

$8.49

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-263044

Spring-Governor
(Superseded to BS-690319)

$8.49

$

In Stock, only 1 left!

0

258

Cub Cadet BS-94512

Screw-Hex. Head
(Superseded to BS-691648)

$4.99

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-94511

Screw-Shoulder
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 5

0

306

Cub Cadet BS-224324

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-94515

Screw-Hex. Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark (Resistor Type)

$3.99

$

In Stock, Qty 14

0

387

Cub Cadet BS-496115

Primer-Carburetor
(Superseded to BS-694395)

$4.49

$

In Stock, Qty 20+

0

523

Cub Cadet BS-495264

Cap-Oil Fill
(Superseded to BS-499621)

$17.99

$

In Stock, only 4 left!

0

524

Cub Cadet BS-280393

Seal-Fill Tube
(Superseded to BS-691031)

Note: Included in Gasket Set - Part No. BS-496117.

$5.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-495265

Tube-Oil Fill

$

$

Not available

529

Cub Cadet BS-281299

Grommet
(Superseded to BS-691923)

$9.49

$

In Stock, only 1 left!

0

572

Cub Cadet BS-224328

Baffle-Cylinder

$

$

Not available

606

Cub Cadet BS-224815

Strap-Bracket
(Superseded to BS-795259)

$32.99

$

In Stock, only 3 left!

0

620

Cub Cadet BS-497203

Bracket-Carburetor
(Superseded to BS-790143)

$44.99

$

Usually ships in 2-12 days

0

621

Cub Cadet BS-396847

Switch-Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

625

Cub Cadet BS-281085

Tube-Fuel Intake
(Superseded to BS-794305)

$

$

Not available

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 5

0

670A

Cub Cadet BS-493823

Spacer-Bracket

Note: (Includes 2)

$6.49

$

In Stock, only 1 left!

0

842

Cub Cadet BS-280966

Seal-O-Ring
(Superseded to BS-692296)

Note: Included in Gasket Set - Part No. BS-496117.

$4.99

$

In Stock, only 1 left!

0

847

Cub Cadet BS-495263

Tube Assy.-Oil Filler
(Superseded to BS-692047)

$

$

Not available

869

Cub Cadet BS-213512

Seat-Intake Valve
(Superseded to BS-691155)

$8.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-213513

Seat-Exhaust Valve

$

$

Not available

871

Cub Cadet BS-262001

Guide-Exhaust Valve

Note: Note: BS-63709 Guide-Intake Valve

$13.99

$

Usually ships in 2-12 days

0

922

Cub Cadet BS-262640

Spring-Brake
(Superseded to BS-691831)

$10.99

$

In Stock, only 2 left!

0

923

Cub Cadet BS-493442

Brake Assembly
(Superseded to BS-796387)

$

$

Not available

966

Cub Cadet BS-496116

Base-Air Cleaner
(Superseded to BS-795259)

$32.99

$

In Stock, only 3 left!

0

967

Cub Cadet BS-491588

Filter-Air
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-281340

Cover-Air Cleaner
(Superseded to BS-692298)

$27.99

$

In Stock, only 1 left!

0

969

Cub Cadet BS-94120

Screw-Hex. Head
(Superseded to BS-690670)

$5.99

$

In Stock, only 4 left!

0

971

Cub Cadet BS-94121

Screw-Hex. Head
(Superseded to BS-692523)

$7.49

$

In Stock, only 2 left!

0

971A

Cub Cadet BS-94749

Screw-Hex. Head
(Superseded to BS-691669)

$3.99

$

In Stock, only 1 left!

0

991

Cub Cadet BS-493537

Filter-Air (Pre-Filter)
(Superseded to BS-493537S)

$6.49

$

In Stock, Qty 19

0

1019

Cub Cadet BS-496658

Label Kit

$

$

Not available

Cub Cadet BS-63709

Guide-Intake Valve

$14.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-496117

Gasket Set

Note: Includes items 3, 7, 9, 9A, 52, 163, 524 & 842

$40.99

$

Usually ships in 2-12 days
