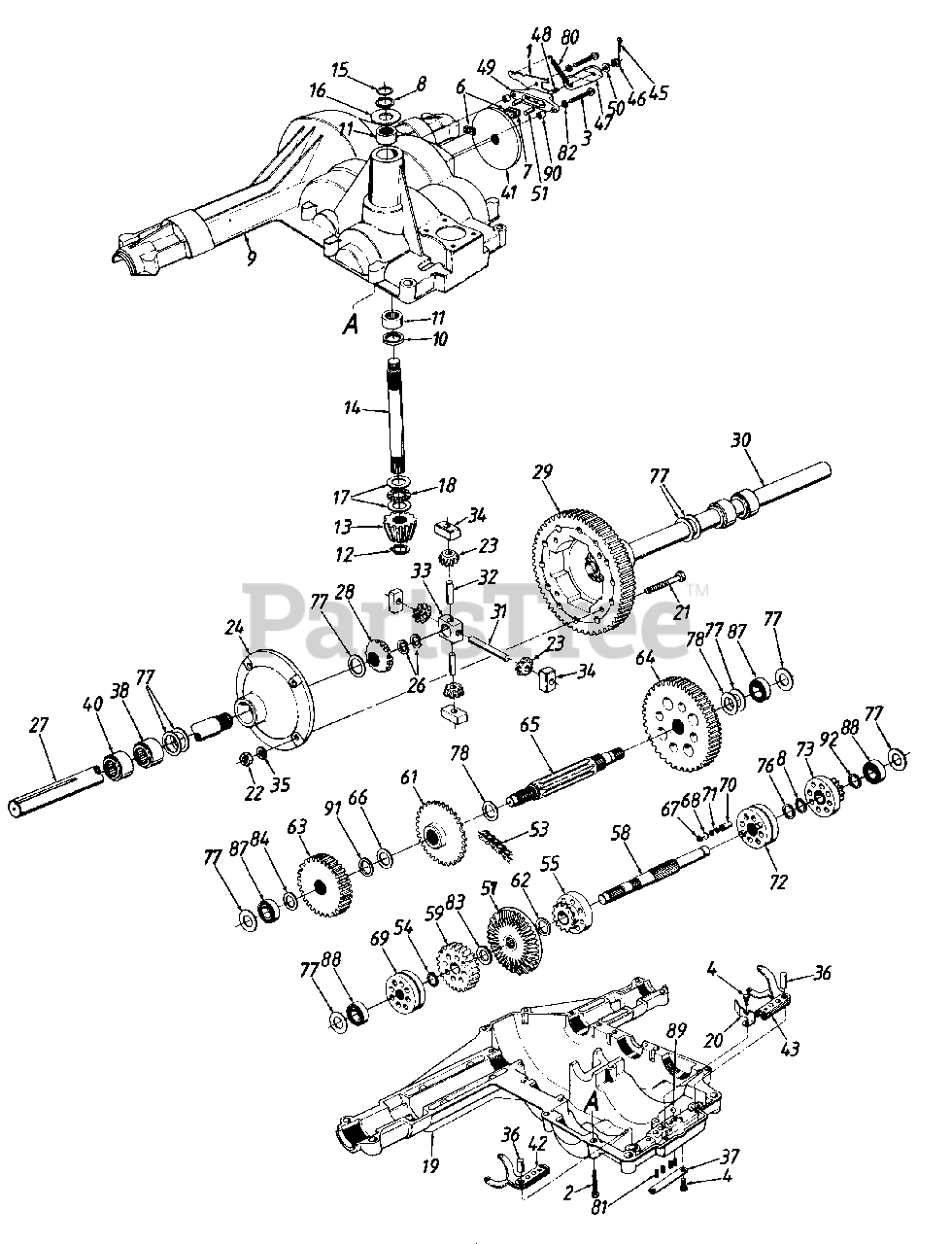

149-822-000 - MTD Garden Tractor (1989) Parts Parts Diagram

Garden Tractor

Parts Parts Diagram

  • Title

1

MTD 17434

Brake Return Bracket

$

$

Not available

2

MTD 710-0809

Hex Bolt 1/4-20 x 1.25" Lg.

$6.99

$

In Stock, Qty 19

0

3

MTD 710-0886

Hex Bolt 1/4-20 x 1.5" Lg. (Grade 5)
(Superseded to 910-0886)

$

$

Not available

4

MTD 710-1011

Tap Scr. 1/4-20 x .38" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

6

MTD 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 1 left!

0

7

MTD 717-0682

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

8

MTD 716-0171

Retainer Ring
(Superseded to 916-0171)

$5.99

$

Usually ships in 3-6 days

0

9

MTD 717-1164

Upper Housing

$

$

Not available

10

MTD 721-0253

Oil Seal

$

$

Not available

11

MTD 741-0525

Needle Brg. 5/8" I.D. x 7/8"O.D.
(Superseded to 941-0525)

$31.99

$

In Stock, only 1 left!

0

12

MTD 716-0114

Snap Ring
(Superseded to 916-0114)

$6.99

$

In Stock, only 2 left!

0

13

MTD 717-1133

Input Pinion 15T

$

$

Not available

14

MTD 717-1134

Input Shaft

$

$

Not available

15

MTD 732-0614

Wire Ring

$6.49

$

In Stock, only 2 left!

0

16

MTD 736-0335

Thrust Washer 5/8" I.D.

$6.99

$

In Stock, Qty 8

0

17

MTD 736-0419

Thrust Washer
(Superseded to 936-0419)

$5.99

$

Usually ships in 3-6 days

0

18

MTD 741-0469

Thrust Bearing

$12.99

$

Usually ships in 3-6 days

0

19

MTD 717-1161

Lower Housing

$

$

Not available

20

MTD 717-1166

Shift Guide

$

$

Not available

21

MTD 710-0151

Hex Bolt 3/8-24 x 2.0" Lg.

$7.49

$

In Stock, only 3 left!

0

22

MTD 712-3054

Hex L-Nut 3/8-24 Thd. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

23

MTD 717-1120

Differential Gear 10T

$32.99

$

In Stock, only 4 left!

0

24

MTD 717-1147

Differential Housing Cover Ass'y.

$

$

Not available

26

MTD 716-0172

Retainer Ring
(Superseded to 916-0172)

$8.49

$

In Stock, only 3 left!

0

27

MTD 717-1112

Axle R.H.

$

$

Not available

28

MTD 717-1119

Differential Gear 14T

$44.99

$

In Stock, only 3 left!

0

29

MTD 717-1159

Differential Bull Gear 60T

$

$

Not available

30

MTD 717-1111

Axle L.H.

$

$

Not available

31

MTD 717-1173

Cross Shaft

$38.99

$

Usually ships in 3-6 days

0

32

MTD 717-1178

Cross Shaft-Special

$28.99

$

Usually ships in 3-6 days

0

33

MTD 717-1180

Differential Pinion Block

$33.99

$

Usually ships in 3-6 days

0

34

MTD 717-1190

Differential Thrust Block

$

$

Not available

35

MTD 736-0413

Spr. Wash. .39" I.D. x .62" O.D.

$6.99

$

In Stock, only 2 left!

0

36

MTD 717-1138

Shift Pin

$

$

Not available

37

MTD 717-1139

Spring Plate

$

$

Not available

38

MTD 741-1143

Axle Bearing Ass'y.
(Superseded to 917-1143)

$43.99

$

Usually ships in 3-6 days

0

40

MTD 717-1144

Axle Bearing Ass'y.

$

$

Not available

41

MTD 717-1177

Brake Disc
(Superseded to 717-1177A)

$34.99

$

In Stock, only 2 left!

0

42

MTD 717-1185

Shift Arm Ass'y.-R.H.

$

$

Not available

43

MTD 717-1186

Shift Arm Ass'y.-L.H.

$

$

Not available

45

MTD 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, Qty 12

0

46

MTD 712-0335

Castle Nut 5/16-24 Thd.
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

47

MTD 717-1132

Brake Actuating Arm
(Superseded to 717-0700)

$14.99

$

In Stock, only 1 left!

0

48

MTD 717-0796

Sq. Hd. Bolt 5/16-24 Thd.

$

$

Not available

49

MTD 717-1179

Brake Yoke

$

$

Not available

50

MTD 736-0371

Fl-Wash. 11/32" I.D. x 718" O.D.

$4.49

$

In Stock, only 3 left!

0

51

MTD 741-0787

Brake Actuating Pin
(Superseded to 941-0343)

$

$

Not available

53

MTD 713-0326

#420 Chain 1/2 Pitch x 28 Links
(Superseded to 913-0326)

$

$

Not available

54

MTD 716-0149

Retainer Ring

$

$

Not available

55

MTD 717-1141

Reverse Sprocket Ass'y.

$

$

Not available

57

MTD 717-1157

Bevel Gear 47T
(Superseded to 917-1157)

$119.99

$

Usually ships in 3-6 days

0

58

MTD 717-1160

Drive Shaft
(Superseded to 711-0860)

$

$

Not available

59

MTD 717-1174

Spur Gear Ass'y.
(Superseded to 917-1174)

$

$

Not available

61

MTD 717-1182

Sprocket 22T

$

$

Not available

62

MTD 736-0421

Fl-Wash. .81" I.D. x 1.18" O.D.

$

$

Not available

63

MTD 717-1155

Spur Gear 31T

$

$

Not available

64

MTD 717-1156

Spur Gear 45T

$

$

Not available

65

MTD 717-1158

Output Shaft 9T

$

$

Not available

66

MTD 717-1172

Spacer

$

$

Not available

67

MTD 716-0170

Internal Retainer Ring

$

$

Not available

68

MTD 717-1137

Plug.44" Dia.

$

$

Not available

69

MTD 717-1167

Forward Shift Collar

$

$

Not available

70

MTD 717-1175

Drive Pin

$

$

Not available

71

MTD 732-0590

Drive Spring
(Superseded to 732-0590A)

$3.99

$

Usually ships in 3-6 days

0

72

MTD 717-1168

Creeper Shift Collar
(Superseded to 918-0006)

$

$

Not available

73

MTD 717-1193

Creeper Collar Plate Ass'y.

$

$

Not available

76

MTD 736-0353

Fl-Wash. .65" I.D. x .97" O.D.

$

$

Not available

77

Fl-Wash.

$

$

Not available

MTD 736-0423

Fl-Wash. 1" I.D. x 1.56" O.D. x .010" Thk.

$

$

Not available

MTD 736-0431

Fl-Wash. 1" I.D. x 1.56" O.D. x .015" Thk.
(Superseded to 936-0431)

$

$

Not available

MTD 736-0424

Fl-Wash. 1" I.D. x 1.56" O.D. x .020" Thk.
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

MTD 736-0420

Fl-Wash. 1" I.D. x 1.56" O.D. x .040" Thk.
(Superseded to 936-0420)

$

$

Not available

78

MTD 736-0424

Fl-Wash. 1.0" I.D. x 1.56" O.D.
(Superseded to 936-0424)

$6.99

$

In Stock, only 3 left!

0

80

MTD 732-0545

Ext. Spring 1.14" Lg.
(Superseded to 932-0545)

$

$

Not available

81

MTD 732-0598

Detent Spring

$4.49

$

Usually ships in 3-6 days

0

82

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

83

MTD 736-0349

Fl-Wash. 518" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

84

MTD 736-0422

Fl-Wash. .68" x 1.12"

$

$

Not available

87

MTD 741-0124

Ball Brg. .669" I.D.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

88

MTD 741-0524

Ball Bearing
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

89

MTD 741-0862

Ball Detent .25" Dia.

$4.49

$

In Stock, Qty 20+

0

90

MTD 750-0555

Spacer .254" I.D. x .5" O.D.

$

$

Not available

91

MTD 736-0333

Fl-Wash. .69" I.D. x 1.06" O.D.

$

$

Not available

92

Fl-Wash.

$

$

Not available

MTD 736-0349

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .020" Thk.

$4.49

$

In Stock, Qty 20+

0

MTD 736-0336

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .030" Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

MTD 736-0337

Fl-Wash. 5/8" I.D. x 1.0" O.D. x .040" Thk.

$4.49

$

In Stock, Qty 9

0
