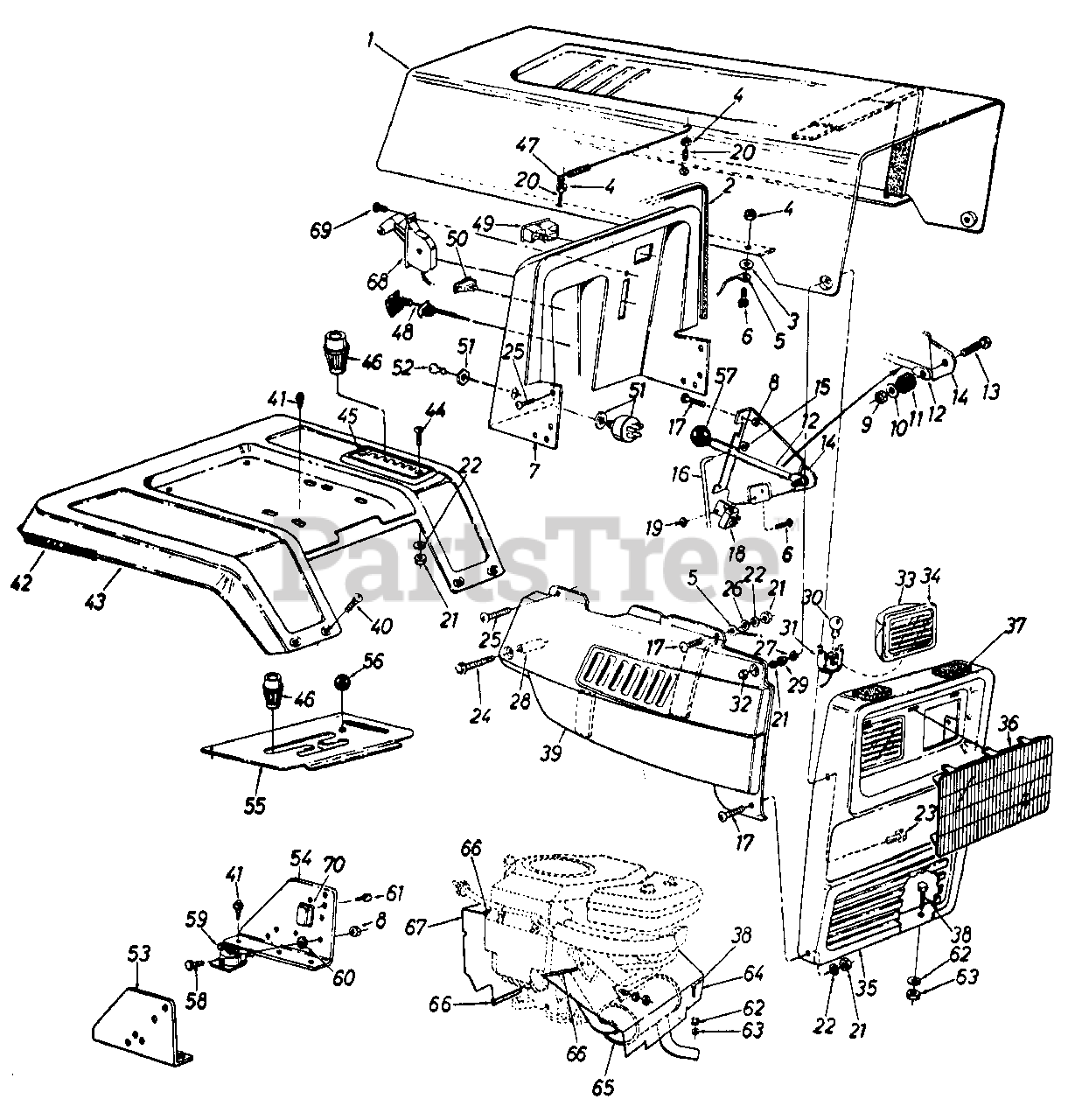

149-818-000 - MTD Garden Tractor (1989) Parts20 Parts Diagram

Garden Tractor

Parts20 Parts Diagram

  • Title

1

MTD 16788

Hood

Variations

MTD 16788-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 16788-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 16788-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 731-0511

Trim Strip 31" Lg.

$3.99

$

Usually ships in 3-6 days

0

3

MTD 736-0931

Fl-Wash. .20" I.D. x 41" O.D.

$4.99

$

In Stock, only 1 left!

0

4

MTD 712-0272

Hex Sems Nut #10- 24 Thd.

$3.99

$

In Stock, only 1 left!

0

5

MTD 727-0290

Hood Stop
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

6

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

7

MTD 16550A

Dash Ass'y.

Variations

MTD 16550A-0629

No Longer Available PANEL-DASH - SILVER FLAKE (0629)

$

$

Not available

MTD 16550A-0637

No Longer Available PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

MTD 16550A-0638

No Longer Available PANEL-DASH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16550A-0667

No Longer Available PANEL-DASH - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

8

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

10

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

11

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

12

MTD 747-0513

PTO Lever

$

$

Not available

13

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

14

MTD 13950A

Deck Clutch Control Brkt.

$

$

Not available

15

MTD 726-0106

Push Cap

$3.99

$

Usually ships in 3-6 days

0

16

MTD 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

17

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

18

MTD 725-0465A

Safety Switch
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

19

MTD 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0749

Hex Bolt 10-24 x 1.0" Lg.
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

21

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

22

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

MTD 710-0206

Hex Bolt 1/4-20 x .88n Lg.

$4.49

$

Usually ships in 3-6 days

0

24

MTD 710-1026

Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg.

$6.99

$

In Stock, Qty 13

0

25

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0463

Fl-Wash. 25n I.D. x .62"

$4.49

$

In Stock, Qty 12

0

27

MTD 736-0413

Spr. Wash. .39" I.D. x .62"

$6.99

$

In Stock, only 2 left!

0

28

MTD 750-0583

Spacer .26" I.D. x .375"

$

$

Not available

29

MTD 738-0759

Shld. Spacer .375" Dia. x .125" Lg.

$

$

Not available

30

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

31

MTD 725-1058

Socket
(Superseded to 925-1058A)

$

$

Not available

32

MTD 712-0264

Acorn Nut 1/4-20 Thd.

$3.49

$

Usually ships in 3-6 days

0

33

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

34

MTD 731-0706

Headlight Lens
(Superseded to 931-0706)

$

$

Not available

35

MTD 15806B

Grille

Variations

MTD 15806B-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 15806B-0606

No Longer Available - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 15806B-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 15806B-0638

No Longer Available GRILLE-STY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15806B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 15806B-0665

No Longer Available GRILLE-STY - YARDMAN GREEN (0665)

$

$

Not available

MTD 15806B-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

MTD 16456B

Grille-Used w/Headlight Bezel

Variations

MTD 16456B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16456B-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 16456B-0629

No Longer Available GRILLE - SILVER FLAKE (0629)

$

$

Not available

MTD 16456B-0640

No Longer Available - CO-OP GREEN (0640)

$

$

Not available

$

$

36

MTD 731-0967

Headlight Bezel

$

$

Not available

37

MTD 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 17458

Side Panel Ass'y.-R.H.
(Superseded to 16725)

Variations

MTD 17458-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 17459

Side Panel Ass'y.-L.H.
(Superseded to 17309B)

Note: (Not Shown)

Variations

MTD 17459-0483

PANEL-SIDE-LH - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17459-0499

No Longer Available PANEL - CUB BEIGE (0499)

$

$

Not available

MTD 17459-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 17459-0638

PANEL-SIDE-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17459-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 17459-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17459-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17459-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17459-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 17459-0674

No Longer Available PANEL-SIDE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17459-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17459-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 17459-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17459-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

40

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

41

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

42

MTD 731-0511

Trim Strip-81" Lg.

$3.99

$

Usually ships in 3-6 days

0

43

MTD 17426

Fender

$

$

Currently unavailable

44

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .62" Lg.

$3.99

$

Usually ships in 3-6 days

0

45

MTD 731-1071

7-Speed Selector Plate
(Superseded to 931-1774)

$31.99

$

In Stock, Qty 8

0

46

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

47

MTD 732-0462

Hood Spring

$

$

Not available

48

MTD 746-0613A

Choke Control 46" Lg.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

49

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

50

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

51

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

52

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

53

MTD 15828C

Dash Support Brkt.-R.H.

$

$

Not available

54

MTD 15829C

Dash Support Brkt.-L.H.
(Superseded to 17294B-0637)

$

$

Not available

55

MTD 17399

Transmission Cover

$

$

Not available

56

MTD 720-0166

Ball Knob

$

$

Not available

57

MTD 720-0165

Knob-Blade Clutch
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

58

MTD 710-0289

Hex Bolt 1/4-20 x 5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

59

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

60

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

61

MTD 710-0599

Hex Wash. Hd. Scr. 1/4 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

63

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

64

MTD 16934

Front Heat Shield

$

$

Not available

65

MTD 751-0474

Muffler

$

$

Not available

66

MTD 731-0511

Trim Strip lon Lg.

$3.99

$

Usually ships in 3-6 days

0

67

MTD 16989

Rear Baffle

$

$

Currently unavailable

68

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

69

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

70

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available
