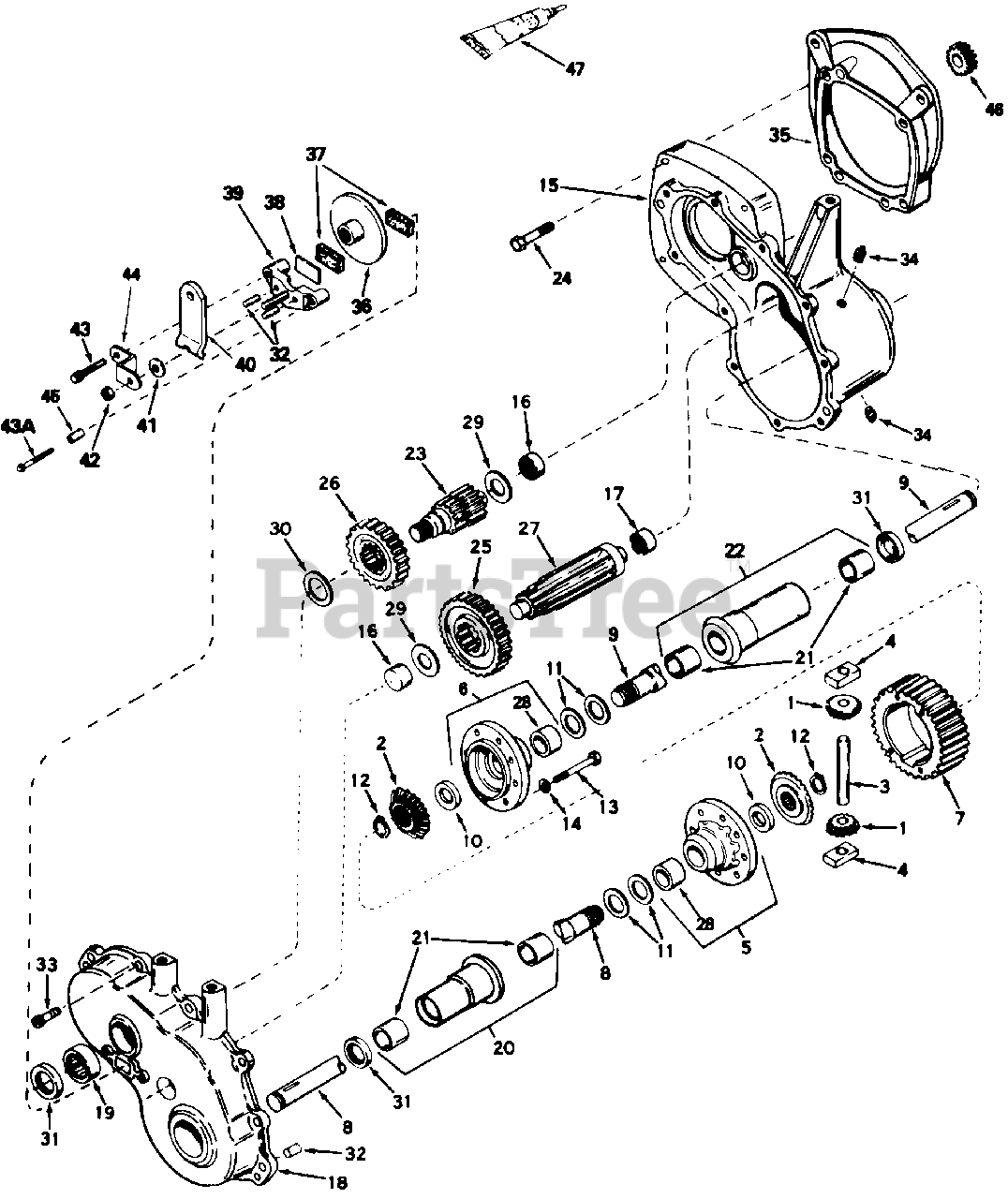

14843S - MTD Garden Tractor (1985) Transaxle Parts Diagram

Garden Tractor

Transaxle Parts Diagram

  • Title
1

MTD 778094

Pinion, Bevel

$

$

Currently unavailable

2

MTD 778095

Gear, Bevel

$

$

Currently unavailable

3

MTD 786019

Pin, Drive

$14.99

$

Usually ships in 3-12 days

0

4

MTD 786027

Block, Drive

$10.99

$

In Stock, only 1 left!

0

5

MTD 774609

Carrier Ass'y., Differential

Note: (Incl. No. 28)

$

$

Currently unavailable

6

MTD 774610

Carrier Ass'y., Differential

Note: (Incl. No. 28)

$

$

Currently unavailable

7

MTD 778033A

Gear, Ring

$

$

Currently unavailable

8

MTD 774611

Axle (13-1/16" Long)

$

$

Currently unavailable

9

MTD 774612

Axle (19-1/8" Long)

$

$

Currently unavailable

10

MTD 780107

Washer

$4.49

$

Usually ships in 3-12 days

0

11

MTD 780042

Washer. Thrust

$4.49

$

Usually ships in 3-12 days

0

12

MTD 792018

Ring, Snap

$

$

Currently unavailable

13

MTD 792005

Screw, Hex Hd., 1/4-20 x 21/4

$

$

Currently unavailable

14

MTD 792006

Lock Washer, 1/4"

$28.99

$

In Stock, Qty 20+

0

15

MTD 770081

Case Ass'y.

Note: (Incl. Nos. 16 & 17)

$

$

Currently unavailable

16

MTD 780013

Bearing, Needle

$

$

Currently unavailable

17

MTD 780088

Bearing, Needle

$21.99

$

Usually ships in 3-12 days

0

18

MTD 772085

Cover Ass'y.

Note: (Incl. Nos. 16 & 19)

$227.99

$

In Stock, only 2 left!

0

19

MTD 780089

Bearing, Needle

$24.99

$

Usually ships in 3-12 days

0

20

MTD 782041A

Housing & Bushing Ass'y. (6-5/8" Long)

Note: (Incl. 2 of No. 21)

$189.99

$

In Stock, only 1 left!

0

21

MTD 780054

Bushing
(Superseded to TC-780054)

$10.99

$

Usually ships in 3-12 days

0

22

MTD 782067

Housing & Bushing Ass'y. (12-45/64" Long)

Note: (Incl. 2 of No. 21)

$

$

Currently unavailable

23

MTD 776245

Shaft, Brake

$

$

Currently unavailable

24

MTD 792120

Screw, Hex Hd., 3/8-16 x 2

$

$

Currently unavailable

25

MTD 778036

Gear, Output

$76.99

$

Usually ships in 3-12 days

0

26

MTD 778195

Gear, Idler

$

$

Currently unavailable

27

MTD 776244

Shaft, Output

$

$

Currently unavailable

28

MTD 780144

Bushing

$

$

Currently unavailable

29

MTD 780001

Washer

$4.49

$

In Stock, only 4 left!

0

30

MTD 780090

Washer

$4.49

$

In Stock, Qty 7

0

31

MTD 788008

Seal, Oil
(Superseded to TC-788008)

$8.49

$

In Stock, only 2 left!

0

32

MTD 786026

Pin, Dowel
(Superseded to TC-786026)

$4.49

$

Usually ships in 3-12 days

0

33

MTD 792046

Screw, Hex Washer Hd. Thread Forming, 1/4-20 x 1

$

$

Not available

34

MTD 792010

Plug, Pipe

$

$

Not available

35

MTD 786112

Plate, Adapter

$

$

Currently unavailable

36

MTD 790027

Disc, Brake

$

$

Currently unavailable

37

MTD 790006

Pad, Brake
(Superseded to TC-799021)

$10.99

$

Usually ships in 3-12 days

0

38

MTD 790007

Plate, Brake Pad
(Superseded to TC-790007)

$5.99

$

Usually ships in 3-12 days

0

39

MTD 790025

Holder, Brake Pad

$17.99

$

Usually ships in 3-12 days

0

40

MTD 790010

Lever, Brake

$

$

Currently unavailable

41

MTD 792076

Washer, Flat

$

$

Currently unavailable

42

MTD 792075

Lock Nut, 5/16-24

$

$

Not available

43

MTD 792073

Screw, Flanged Hex Hd. Thread Forming, 1/4-20 x 1 1/4

$1.99

$

Usually ships in 3-12 days

0

43A

MTD 792085

Screw, Flanged Hex Hd. Thread Forming, 1/4-20 x 2 1/4

$

$

Currently unavailable

44

MTD 786086

Bracket

$6.49

$

Usually ships in 3-12 days

0

45

MTD 786066

Spacer

$4.49

$

In Stock, only 2 left!

0

46

MTD 778196

Gear, Spur (18 Teeth)

$

$

Currently unavailable

47

MTD 510334

Gasket Eliminator
(Superseded to TC-510334)

$12.99

$

Usually ships in 3-12 days

0
