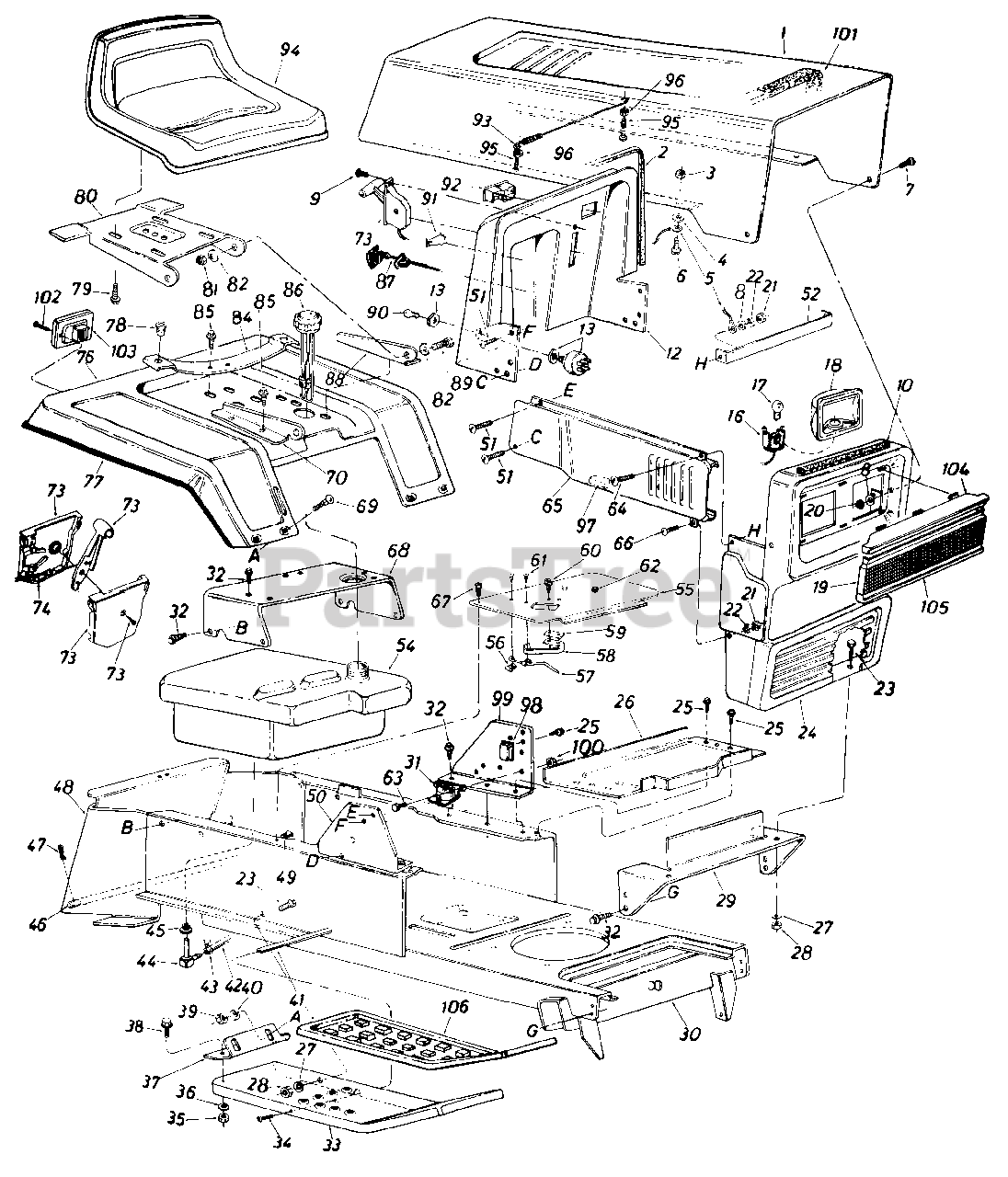

  • Title

1

MTD 15808

Hood

$

$

Currently unavailable

2

MTD 731-0511

Trim Strip 27" Lg.

$3.99

$

Usually ships in 3-6 days

0

3

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

4

MTD 736-0931

Fl-Wash. .20" I.D. x .41" O.D.

$4.99

$

In Stock, only 1 left!

0

5

MTD 727-0290

Hood Stop
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

6

MTD 710-0473

Truss Hd. Mach. Scr. #10-24 x.50" Lg.

$4.49

$

In Stock, only 2 left!

0

7

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

8

MTD 736-0463

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 12

0

9

MTD 710-0779

Truss Mach. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

10

MTD 722-0155

Foam Strip 3/8" x 1" x 14"

Note: (Top of Grille)

$

$

Not available

MTD 710-0351

Truss Mach. Scr. #10 x .50"

$4.49

$

Usually ships in 3-6 days

0

12

MTD 16545

Dash Ass'y.

$

$

Not available

13

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

16

MTD 725-1058

Socket
(Superseded to 925-1058A)

$

$

Not available

17

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

18

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

19

MTD 731-0787

Headlight Bezel

$

$

Not available

20

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

21

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

22

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

23

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

24

MTD 16456

Grille

$

$

Currently unavailable

25

MTD 710-0599

Hex Wash. Hd. Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 13379

Battery Plate

$

$

Not available

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 15825

Grille Mounting Bracket

$

$

Not available

30

MTD 13820

Lower Frame Ass'y.

$

$

Not available

31

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

32

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 13828

Running Board R.H.

$

$

Not available

MTD 13827

Running Board L.H.

Note: (Not Shown)

$

$

Not available

34

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

35

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

36

MTD 736-0242

Bell-Wash. .34" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

37

MTD 15846

Fender Brkt. R.H.

Variations

MTD 15846-0637

Fender Brkt. R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15847

Fender Brkt. L.H.

Note: (Not Shown)

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

40

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

41

MTD 738-0435

Running Board Rod

$

$

Not available

42

MTD 751-0173

Fuel Line 40" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

43

MTD 726-0207

Hose Clamp 3/8"

$

$

Not available

44

MTD 751-3054

90ø Nipple

$

$

Currently unavailable

45

MTD 735-0149

Bushing
(Superseded to 935-0149)

Note: (Fuel Tank)

$2.99

$

In Stock, Qty 20+

0

46

MTD 738-0482

Hitch Rod

$

$

Not available

47

MTD 714-0147

Internal Cotterpin

$4.99

$

In Stock, Qty 6

0

48

MTD 13813

Hitch Plate

$

$

Not available

49

MTD 726-0139

Speed Nut

$6.99

$

Usually ships in 3-6 days

0

50

MTD 15828

Dash Support Brkt. R.H.

$

$

Not available

51

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

52

MTD 15931

Tie Strap

$

$

Not available

54

MTD 751-0367

Fuel Tank

$

$

Not available

55

MTD 16173

Transmission Cover Ass'y.

$

$

Currently unavailable

56

MTD 712-0147

Speed Nut #10-24 U-Type

$6.99

$

Usually ships in 3-6 days

0

57

MTD 732-0467

Shift Lever Spring

$

$

Not available

58

MTD 725-0759

Switch Spring
(Superseded to 753-0579)

$

$

Not available

59

MTD 726-0222

Insulator Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

60

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #18 x .50

$4.49

$

In Stock, Qty 20+

0

61

MTD 710-0351

Truss Mach. Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

62

MTD 731-0405

Snap Bushing

$

$

Not available

63

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

64

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

65

MTD 16469

Side Panel R.H.

Variations

MTD 16469-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16469-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16469-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16469-0640

No Longer Available - CO-OP GREEN (0640)

$

$

Not available

MTD 16469-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 16469-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 16469-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

MTD 15815

Side Panel L.H.

Note: (Not Shown)

$

$

Not available

66

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

67

MTD 710-0351

Truss Mach. "B" Tap Scr. #10 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

68

MTD 15849

Seat Mounting Channel

$

$

Not available

69

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

70

MTD 15802

Seat Bracket R.H.

$

$

Not available

MTD 710-0600

Hex Wash Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

73

MTD 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

74

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

76

MTD 16448

Rear Fender

$

$

Currently unavailable

77

MTD 731-0511

Trim Strip 81"

$3.99

$

Usually ships in 3-6 days

0

78

MTD 731-0555

Grommet

$

$

Not available

79

MTD 710-0623

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

80

MTD 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

81

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

82

MTD 736-0242

Belleville Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

84

MTD 732-0431

Seat Spring

$

$

Currently unavailable

85

MTD 710-0607

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$6.99

$

In Stock, Qty 11

0

86

MTD 751-0370

Gas Cap w/Gauge

$

$

Not available

87

MTD 746-0613

Choke Control Comp.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

88

MTD 15803

Seat Bracket L.H.

$

$

Not available

89

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

90

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

91

MTD 725-1130

Light Switch

$

$

Not available

92

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

93

MTD 732-0462

Hood Spring

$

$

Not available

94

MTD 757-0308

Seat Ass'y.

Note: (w/o Safety Switch)

$

$

Currently unavailable

MTD 757-0318

Seat Ass'y.

Note: (w/Safety Switch)

$

$

Not available

95

MTD 710-0749

Hex Screw #10-24 x 1.0" Lg.
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

96

UNKNOWN

$

$

Not available

97

MTD 735-0224

Rubber Strip 1/2" Sq. x 21/2 " Lg .

$

$

Not available

98

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

99

MTD 15829

Dash Support Brkt. L.H.
(Superseded to 17294B-0637)

$

$

Not available

100

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

101

MTD 722-0138

PVC Foam

$

$

Not available

102

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

103

MTD 725-1128

Taillight

$

$

Not available

104

MTD 731-0788

Upper Frame For Bezel

$

$

Not available

105

MTD 731-0789

Lower Frame For Bezel

$

$

Not available

106

MTD 731-0755

Foot Pad

$

$

Not available
